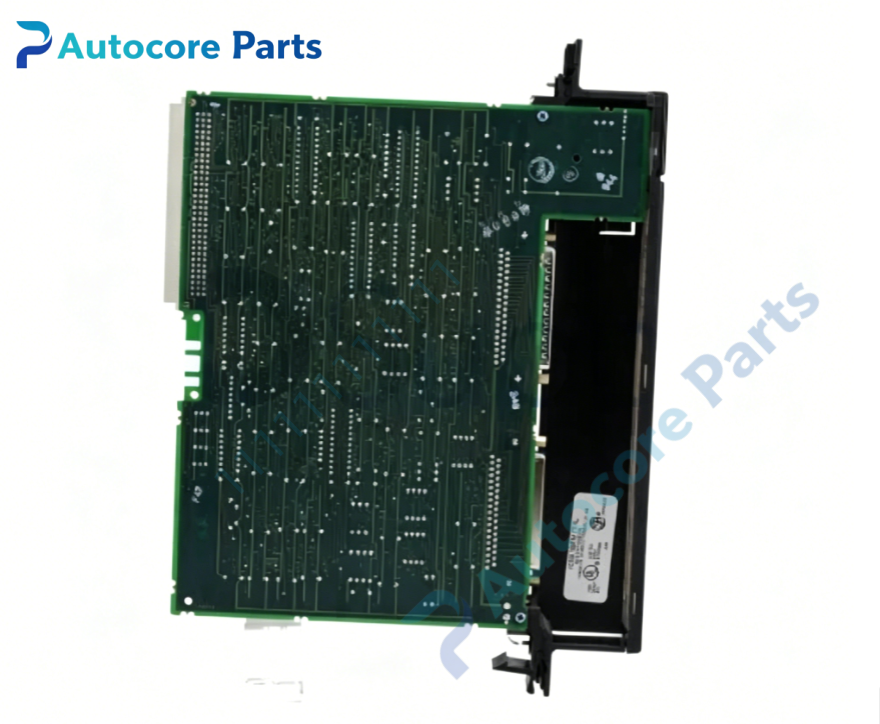

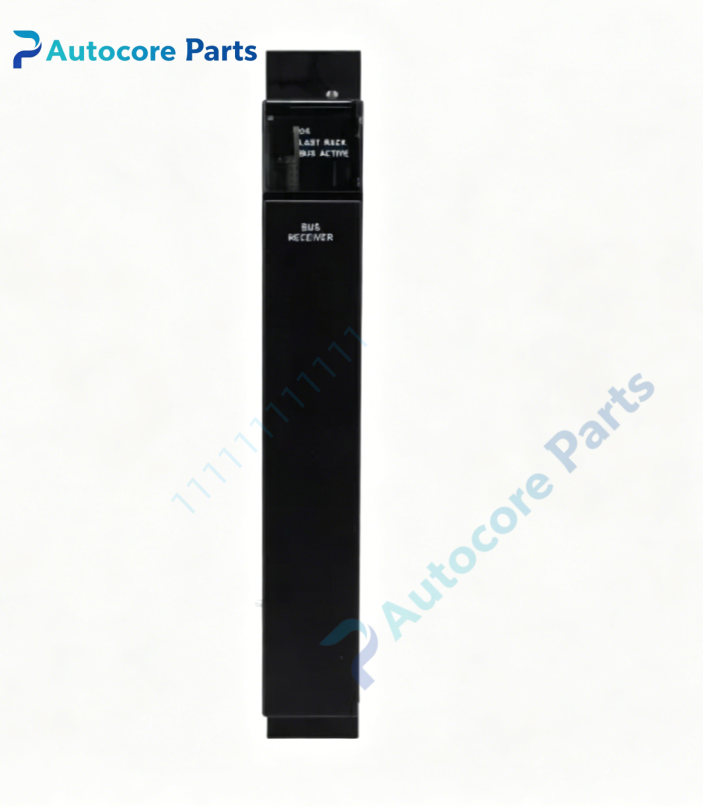

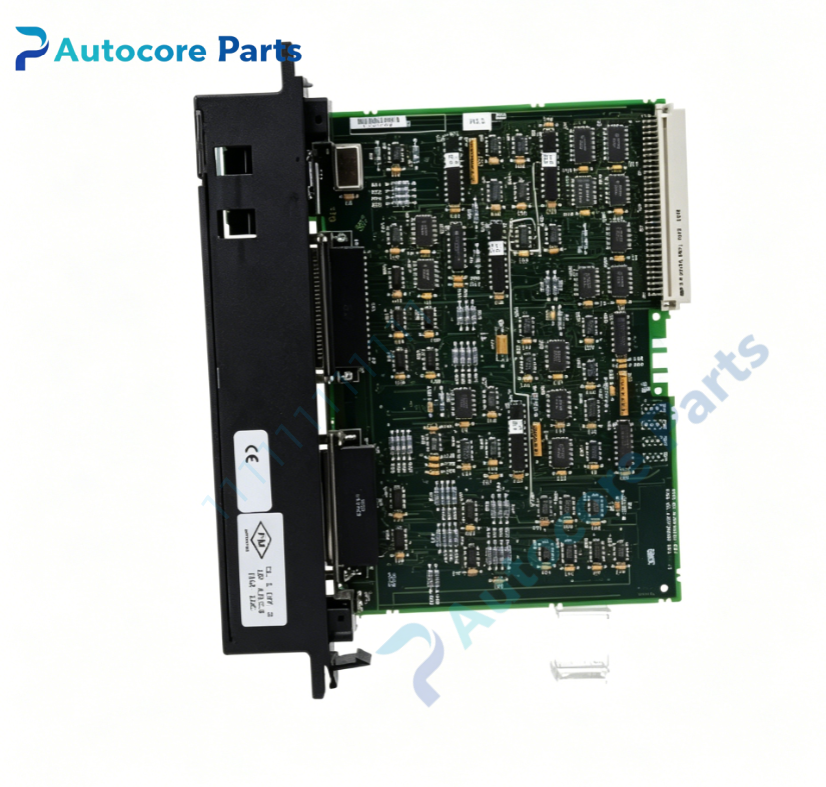

GE Fanuc IC697BEM711N Bus Receiver Module

Technical SpecificationsModel：IC697BEM711N Brand：GE Fanuc Product Type: Single-slot VME bus receiver module for Series90-70 PLC expansion rack

Module Feature:Function: Bus Receiver Module (BRM), used to extend IC697 main rack to additional expansion racks. It must be installed in slot 1 of each expansion rack. Max expansion racks: Up to 7 extra expansion racks for one main CPU rack Max total cable length:15 meters (50 feet) between racks Interface: Two high-speed bus connectors, upstream link to main rack, downstream daisy-chain port for next expansion rack Operation mode: Hold Last State; output modules maintain last value when bus communication lost LED indicators: Module OK, Rack Activity, Bus Terminator status 3 green LEDs Termination requirement: IC697ACC702 terminator plug required on the last expansion rack Hardware self-diagnosis: bus link detection, terminator missing alarm, module internal fault Backplane VME bus communication with Series90-70 CPU Fault isolation: single faulty rack can be isolated without shutting down entire PLC system

Electrical ParametersBackplane supply:+5VDC, power consumption 0.8A Bus type:Series90-70 high speed parallel expansion bus

Mechanical & Structure:Mounting:Plug-in installation into Series90-70 expansion rack slot 1 only Protection class:IP20 Weight:0.85kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC697BEM711N belongs to GE Fanuc Series90-70 PLC family. Compatible with IC697 CPU, power supply, analog/discrete I/O modules. Widely used for large power plant, metallurgy and chemical large-scale distributed PLC control system.

Function

IC697BEM711N is bus receiver expansion module for GE Fanuc Series90-70 PLC. It builds high-speed parallel bus connection between main CPU rack and multiple expansion I/O racks. When communication fails, outputs can keep last state to avoid sudden equipment action. Built-in diagnostic LEDs quickly check online status, bus cable and terminator fault. It supports rack fault isolation for easy maintenance.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off PLC rack power. Insert IC697BEM711N into slot 1 of expansion rack and lock retainer. Connect upstream bus cable from main rack and downstream daisy-chain cable. Install terminator plug on final rack. Configure hardware in programming software, power on and verify rack online status.

Interface

Series90-70 VME backplane gold-edge connector,upstream bus port,downstream daisy-chain bus port,on-board status LED indicators for GE Fanuc IC697BEM711N.

Diagnostic

Rack offline:Check module installed at slot1,bus cable integrity and terminator plug. Terminator LED off:Missing IC697ACC702 terminator or bad bus termination. Intermittent rack drop:Inspect bus cable shielding, loose connector or excessive cable length.

Product Brief

IC697BEM711N is GE Fanuc legacy Series90-70 bus receiver module,used to expand PLC I/O racks up to 7 racks with max 15m inter-rack cable,discontinued rack expansion spare card.
