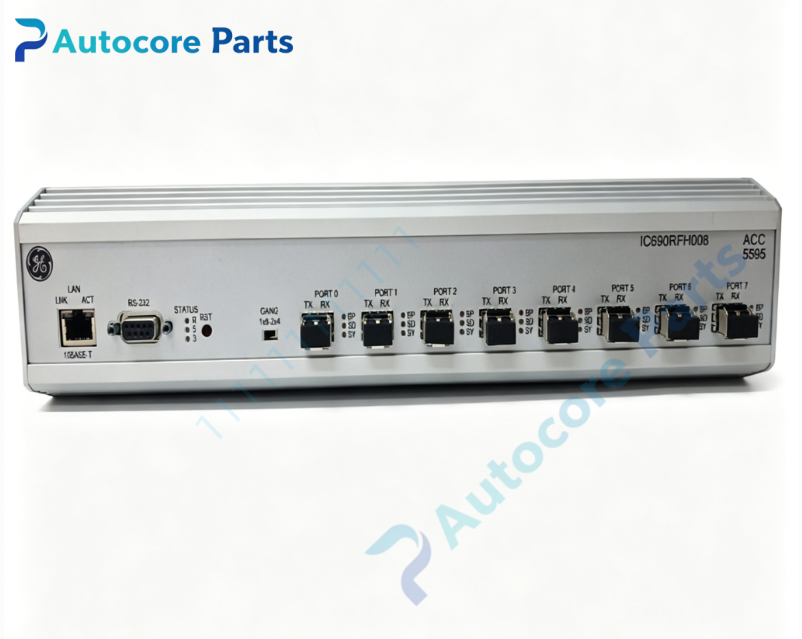

GE IC690RFH008 8‑Port Multimode Reflective‑Memory Fiber Hub

Technical Specifications

Model: IC690RFH008

Brand: GE Fanuc（Emerson Automation）

Product Type: 8‑port multimode reflective‑memory fiber hub

Port Quantity: 8×SFP multimode fiber ports

Supported Fiber Type: Multimode optical fiber, wavelength 830‑860nm

Maximum Fiber Distance: 300m per multimode channel

Network Topology: Star topology, support cascade expansion

Max Network Nodes: Up to 256 nodes after multi‑hub cascading

Core Function: Automatic node detection, auto bypass faulty node, fault isolation

Management Interface: Ethernet configuration port, RS232 serial diagnostic port

Power Supply: 100‑240VAC, 50/60Hz

Rated Power Consumption: 25W

Mounting Form: Standard 19‑inch 1U rack‑mount installation

Dimension: 442mm ×285mm ×44mm

Protection Feature: Fault‑port automatic bypass, prevent single‑point fault from crashing whole network

LED Indicators: Power indicator, link status, fault alarm for each channel

Operating Temperature:0℃ ~ +65℃，non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Weight:2.8kg

Application: Power plant turbine control, high‑speed real‑time industrial control system, legacy reflective‑memory network transformation, spare‑part replacement for critical automation projects.

Product Details

IC690RFH008 is an industrial‑grade 8‑port multimode reflective‑memory fiber hub developed by GE Fanuc, specially built for reflective‑memory real‑time industrial communication network, adopting star‑type network architecture instead of traditional daisy‑chain topology.

This hub provides eight independent multimode SFP fiber ports. Each port can connect reflective‑memory node boards. Multiple hubs can be cascaded, and the whole network can support up to 256 nodes. It supports automatic node identification. When one node fails, the hub will automatically bypass the faulty channel, so the fault will not spread to the whole network, greatly improving system reliability.

Equipped with Ethernet management port and RS232 diagnostic serial port. Users can view link status, channel fault information and configure network parameters. Each channel corresponds to independent LED indicator lights, which directly display power‑on, link connection and fault alarm status for quick on‑site troubleshooting.

It adopts standard 19‑inch 1U rack‑mount structure, easy to install in standard control cabinet. The unit uses AC power input, low power consumption and stable long‑time operation performance. It is widely used in power plant turbine control and other high‑speed hard real‑time industrial control scenarios, for old reflective‑memory network maintenance, upgrading and spare‑part replacement.
