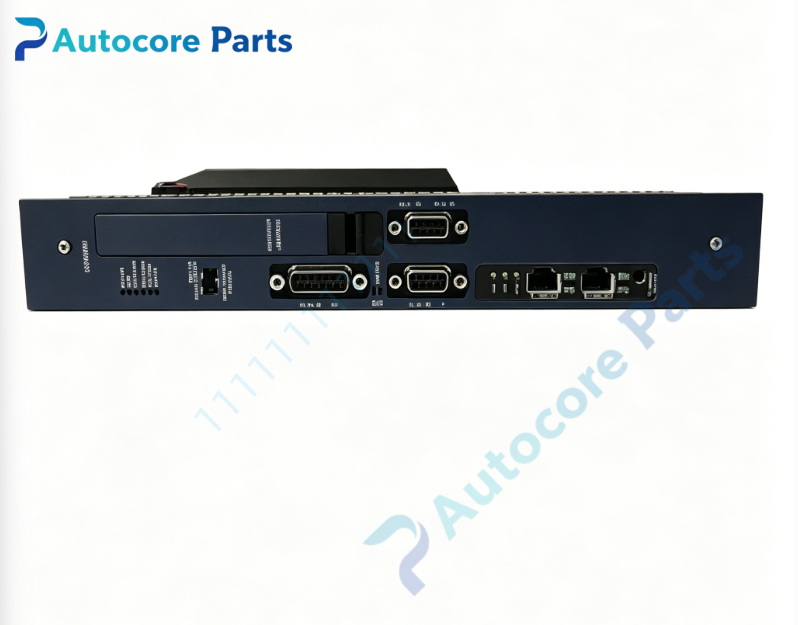

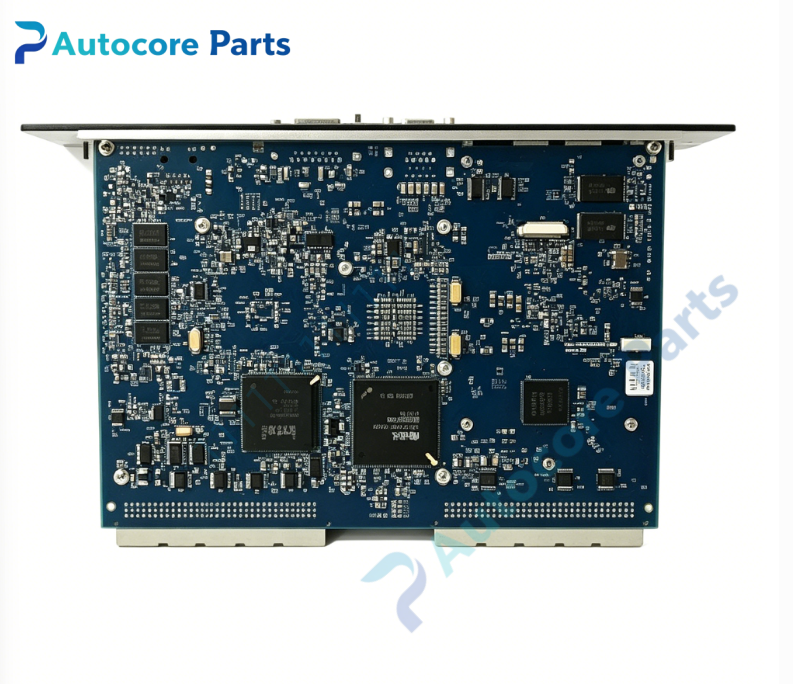

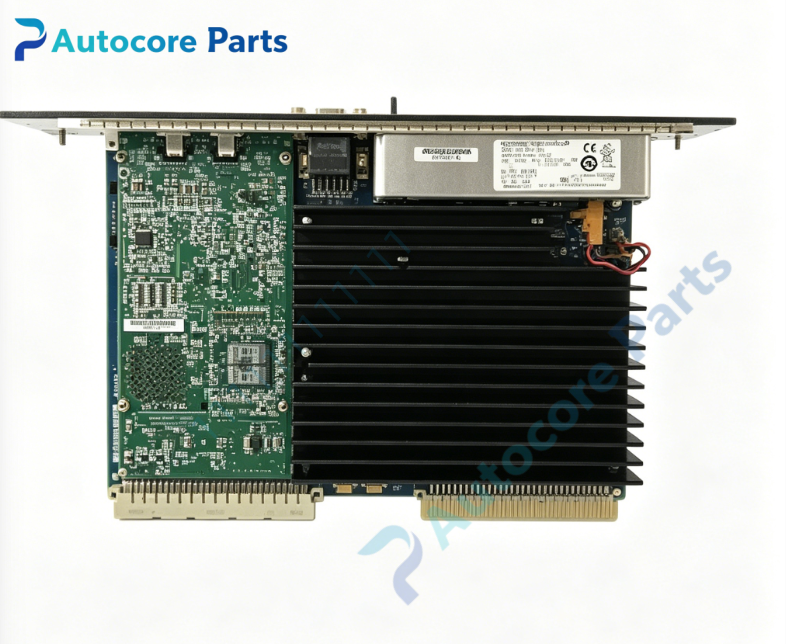

GE IC698CPE040 PACSystems RX7i High‑Speed CPU Processor Module

Technical Specifications

Model: IC698CPE040

Brand: GE Fanuc（Emerson Automation）

Product Type: PACSystems RX7i VME64 high‑performance central processing unit

Processor: 1.8GHz Pentium‑M microprocessor

User Memory: 64MB battery‑backed RAM

Flash Memory: 64MB non‑volatile flash memory

I/O Capacity: Up to 32K bits discrete I/O, up to 32K words analog I/O

Communication Ports: 2×Ethernet 10/100Mbps, 1×RS232, 1×RS485, station manager port

Supported Ethernet Protocols: SRTP, Modbus TCP Server/Client, Ethernet Global Data(EGD)

Supported Serial Protocols: Modbus RTU Slave, SNP, Serial I/O

Built‑in Function: Web server & FTP, maximum 16 concurrent connections

Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram, C language

Max Program Blocks: 512 blocks, single block up to 128KB

Backplane Bus: VME64 standard, single‑slot plug‑in installation

Power Requirement: +5VDC 6.8A nominal, +12VDC 0.003A,‑12VDC 0.003A

Real‑time Clock: Battery‑backed calendar clock

Configuration Tool: Proficy Machine Edition 5.0 SP3 or higher version

Operating Temperature:0℃ ~ +50℃，non‑condensing；0‑60℃ with fan tray

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Weight:0.85kg

Dimension:160mm ×233mm ×32mm

Application: Power plant turbine control, petrochemical complex process control, heavy‑industry high‑speed automation, legacy PACSystems RX7i system maintenance and spare‑part replacement.

Product Details

IC698CPE040 is the top‑grade high‑performance CPU processor for GE PACSystems RX7i VME64 automation platform, equipped with 1.8GHz industrial‑grade Pentium‑M processor for heavy‑duty complex real‑time industrial control tasks.

This CPU module is configured with 64MB battery‑backed RAM and 64MB non‑volatile flash memory. User programs, system configurations, register data and symbolic variables can be reliably stored. Program and data memory partition can be flexibly adjusted according to actual project requirements.

Dual independent 10/100Mbps Ethernet ports support Modbus TCP, EGD and SRTP protocols, connecting HMI, SCADA and field control nodes. RS232 and RS485 serial interfaces support Modbus RTU and SNP protocols for serial‑device access. Built‑in web server and FTP function support up to 16 concurrent connections for remote monitoring, diagnosis and firmware upgrade.

It supports multiple IEC standard programming languages, up to 512 program blocks, and is fully compatible with Series 90‑70 I/O modules and most third‑party VME64 modules. Test‑edit mode supports online program modification without stopping the running process, which brings great convenience for site debugging and maintenance.

Complete power‑on self‑diagnosis function is built‑in. Front‑panel multi‑color LED indicators display running status, fault alarm and communication link condition. This high‑speed CPU is widely applied in power, petrochemical and heavy‑industry sites for complex control projects, used for upgrading and spare‑part replacement of old RX7i PAC automation systems.
