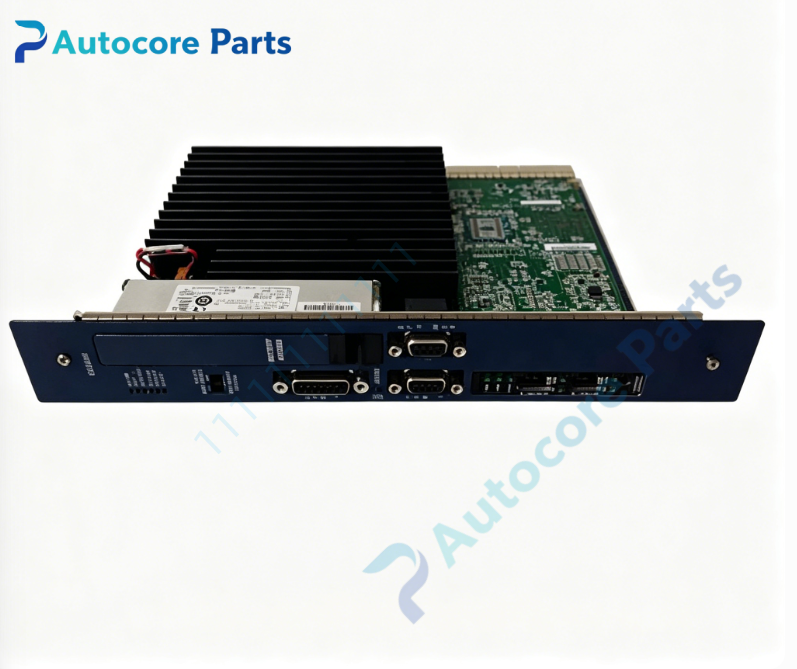

GE IC698CRE040‑HN PACSystems RX7i Hot‑Standby Redundant CPU Processor Module

Technical Specifications

Model: IC698CRE040‑HN

Brand: GE Fanuc（Emerson Automation）

Product Type: PACSystems RX7i VME64 hot‑standby redundant central processing unit

Processor: 1.8GHz Pentium‑M industrial microprocessor

Typical Scan Speed: 0.024ms per 1000 boolean contacts‑coils

User Memory: 64MB battery‑backed RAM

Flash Memory: 64MB non‑volatile flash user memory

Max I/O Capacity: Up to 32K bits discrete I/O，up to 32K words analog I/O

Communication Ports: 2×10/100Mbps Ethernet RJ45,1×RS232,1×RS485,1×station manager port

Supported Ethernet Protocols: SRTP, Modbus TCP Server/Client, Ethernet Global Data(EGD), SNTP time synchronization

Supported Serial Protocols: Modbus RTU Slave, SNP, Serial I/O

Redundancy Mode: Hot‑standby redundancy, match with IC698RMX016 redundant memory exchange module, switch‑over time＜1ms

Built‑in Service: Web server & FTP service, maximum 16 concurrent connections for remote diagnosis

Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram, C language

Program Capacity: Up to 512 program blocks, single block maximum 128KB

Backplane Bus: VME64 standard, single‑slot plug‑in installation

Power Requirement: +5VDC 6.8A nominal, +12VDC 0.003A,‑12VDC 0.003A

Real‑time Clock: Battery‑backed calendar clock, daily drift ≤±2 seconds

Configuration Tool: Proficy Machine Edition 5.0 SP3 or higher version

Operating Temperature:0℃ ~ +50℃ non‑condensing；0‑60℃ with fan tray

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Weight:0.86kg

Dimension:160mm ×233mm ×32mm

Application: Power plant turbine control, petrochemical high‑reliability process control, critical‑site hot‑standby automation system, legacy PACSystems RX7i redundant system maintenance and spare‑part replacement.

Product Details

IC698CRE040‑HN is the high‑performance hot‑standby redundant CPU for GE PACSystems RX7i VME64 automation platform, built upon 1.8GHz Pentium‑M industrial processor, specially designed for high‑availability industrial control scenarios requiring uninterrupted operation.

This redundant CPU is equipped with 64MB battery‑backed RAM and 64MB non‑volatile flash memory. User logic programs, hardware configurations, register data and symbolic variables can be persistently saved. The typical logic scan rate reaches 0.024ms per 1000 boolean contacts‑coils, delivering fast real‑time control response for complex industrial projects.

Two independent 10/100Mbps Ethernet ports support SRTP, Modbus TCP, EGD and SNTP time‑sync. RS232 and RS485 serial ports support Modbus RTU and SNP protocols. Built‑in web server and FTP function support up to 16 concurrent remote connections for monitoring, diagnosis and firmware upgrade.

For hot‑standby redundant configuration, this CPU must pair with IC698RMX016 redundant memory exchange module. Runtime data synchronizes continuously between primary and standby CPU. When main CPU fails, system completes automatic switch‑over within less than 1ms without stopping field production, greatly improving system reliability for critical production sites.

It supports multiple IEC standard programming languages, up to 512 program blocks, and is fully compatible with Series 90‑70 I/O modules and most third‑party VME64 modules. Online test‑edit allows program modification without stopping runtime. Front‑panel multi‑color LED indicators show CPU running status, fault alarm and each communication link condition for fast on‑site troubleshooting.

It adopts standard VME64 single‑slot slide‑in plug‑in structure, easy for installation and replacement. Widely deployed in power, petrochemical and other critical industries, applied for maintenance, upgrade and spare‑part replacement of old RX7i hot‑standby redundant PAC control systems.
