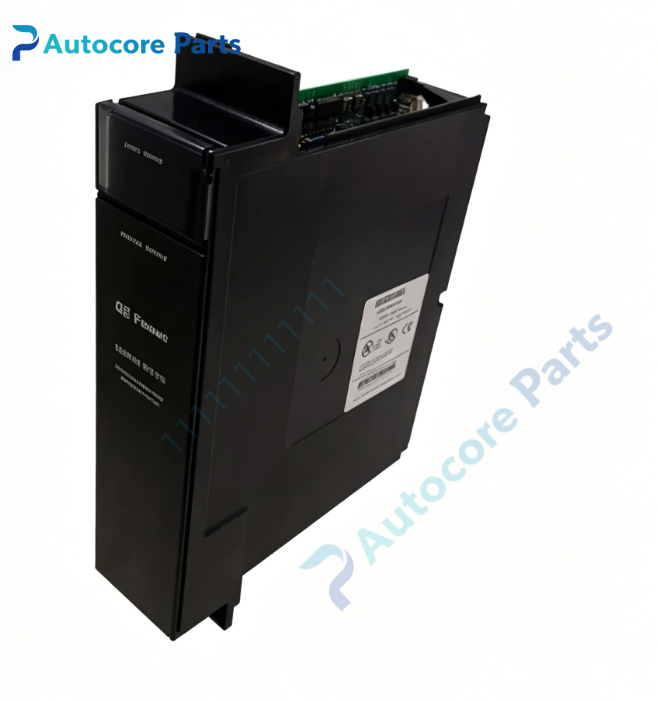

GE IC697PWR748D Series 90‑70 PLC Rack Power Supply Module

Technical Specifications

Model: IC697PWR748D

Brand: GE Fanuc（Emerson Automation）

Product Type: Series 90‑70 PLC rack‑mount DC power supply module

Installation Slot: Left‑most dedicated power slot of Series 90‑70 main chassis

Nominal Input:48VDC，wide input range 35‑60VDC

Max Input Power:160W under full‑load condition

Rated Total Output Power:90W

Output Specifications: +5VDC up to18A；+12VDC up to1.5A；‑12VDC up to1A

Multi‑Rack Support: Single power supply can drive two racks within load limit

Protection Functions: Electronic short‑circuit & over‑current protection on +5V bus, over‑voltage clamping protection

Hold‑up Time: ≥10ms hold‑up time at full‑load after input power loss

Backplane Interface:48‑pin backplane connector, slide‑in plug‑in installation

Status Indicator: Power‑on status LED indicator on front panel

Sequencing Signal: Provides power‑good logic sequencing signals to backplane

Cooling Mode: Natural convection cooling, no fan required

Operating Temperature:0℃ ~ +60℃，non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Weight:1.6kg

Dimension:64mm ×292mm ×224mm

Application: Power plant auxiliary control, petrochemical process control, legacy Series 90‑70 PLC system renovation, industrial automation rack maintenance and spare‑part replacement.

Product Details

IC697PWR748D is a 90‑watt DC‑input rack power supply for GE Fanuc Series 90‑70 PLC control system, revision D hardware version, designed for industrial sites with 48VDC field power supplyQualitrol.

This power module must be inserted into the left‑most dedicated power slot of the 90‑70 main chassis. It delivers +5VDC, +12VDC and‑12VDC multi‑rail DC power for CPU, I/O boards and other plug‑in modules via 48‑pin backplane connector. It supports wide‑range 35‑60VDC DC input, adapting to fluctuation of industrial 48V DC power network.

The +5V bus adopts electronic short‑circuit and over‑current protection, with built‑in over‑voltage clamping circuit. When abnormal voltage occurs, it clamps voltage below 6.7V to avoid burning core logic modules on the backplane. Full‑load hold‑up time reaches more than 10ms, providing short‑time data protection against momentary power dip.

Within allowable load range, one IC697PWR748D can supply power for two racks simultaneously, reducing hardware investment for multi‑rack projects. It outputs power‑good sequential logic signals to the backplane, ensuring orderly power‑on and power‑off sequence for each module. Front‑panel LED directly shows power running status for quick on‑site inspection.

Slide‑in rack‑mount structure brings convenient installation and replacement. Natural convection cooling makes it run reliably under 0‑60℃ environment without fan. Widely used in power, petrochemical and heavy‑industry fields for maintenance, upgrade and spare‑part replacement of old Series 90‑70 PLC automation racks.
