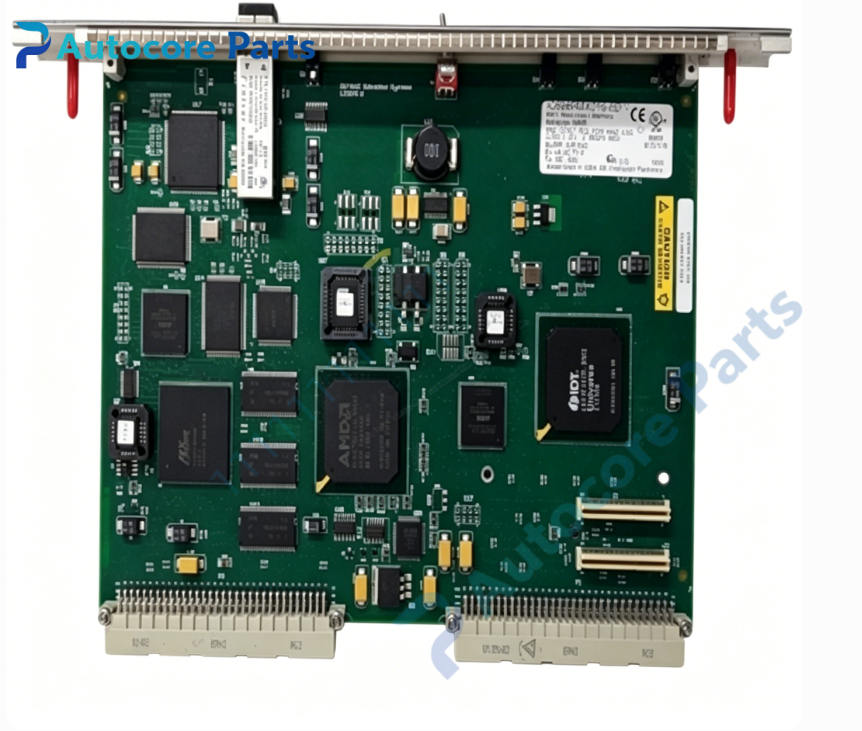

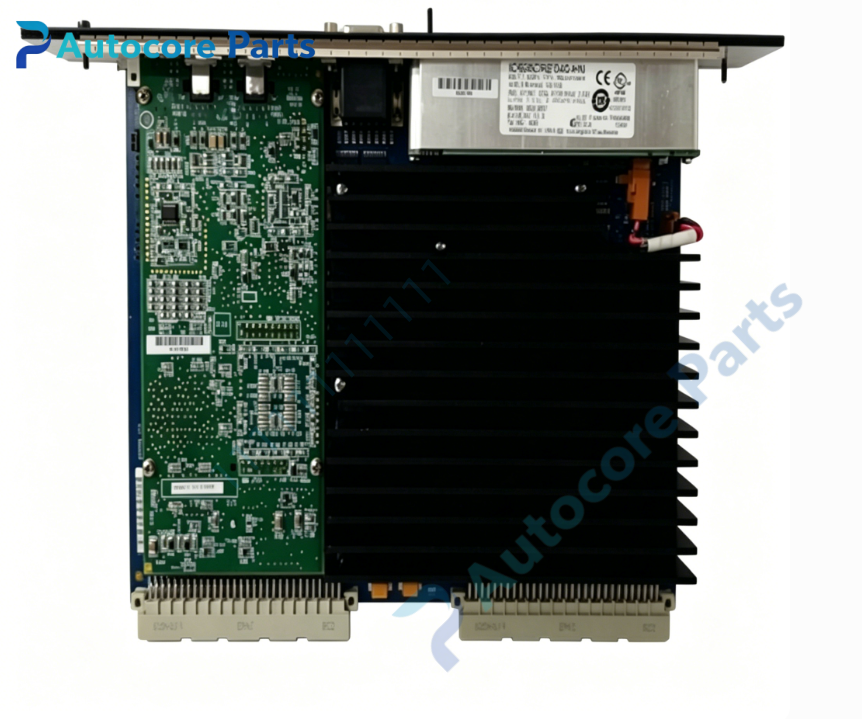

GE IC697CMM742‑LL Series 90‑70 Type‑2 TCP/IP Ethernet Interface Module

Technical Specifications

Model: IC697CMM742‑LL

Brand: GE Fanuc（Emerson Automation）

Product Type: Series 90‑70 Type‑2 ethernet communication coprocessor module

Compatibility: GE Series 90‑70 PLC rack, occupies one single slot

Network Rate: 10Mbps IEEE802.3 CSMA/CD ethernet

Physical Ports: 10Base‑T RJ‑45, 10Base2 BNC, 15‑pin AUI port（only one active at one time）

Serial Debug Port: RJ‑11 RS232 station‑manager local diagnostic port

Firmware Load Port: 15‑pin D‑sub serial download port

Supported Protocols: TCP/IP, UDP/IP, SRTP, EGD(Ethernet Global Data), Modbus TCP Server & Client, ICMP

Max Concurrent Connections: Up to 32 network connections

EGD Function: Deterministic peer‑to‑peer controller‑to‑controller data exchange

Off‑load Feature: Independent coprocessor handles ethernet traffic, no increase of CPU scan time

Configuration Storage: Non‑volatile memory stores IP, subnet, gateway and EGD exchange settings

Backplane Power: +5VDC 2.0A max，+12VDC 0.5A max, power supplied by PLC backplane

Status LED: Module OK, LAN online, link activity, fault diagnostic indicator lights

Configuration Software: Logicmaster 90‑70, Proficy Machine Edition

Operating Temperature:0℃ ~ +60℃，non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Weight:0.54kg

Dimension:110mm ×250mm ×40mm

Application: Power‑plant auxiliary control, petrochemical process automation, PLC‑to‑PLC EGD data synchronization, SCADA/HMI network connection, legacy Series 90‑70 system maintenance and spare‑part replacement.

Product Details

IC697CMM742‑LL is the enhanced LL hardware revision Type‑2 ethernet coprocessor for GE Fanuc Series 90‑70 PLC platform, specially designed for industrial ethernet networking of legacy 90‑70 control systems.

This communication module adopts independent on‑board coprocessor, which offloads all ethernet protocol processing work from the main CPU. Heavy network traffic will not extend PLC scan cycle, ensuring stable real‑time control performance of the whole system.

Multiple physical media interfaces are integrated: 10Base‑T RJ‑45, 10Base2 BNC and 15‑pin AUI transceiver port. Only one physical port can be activated at the same time, supporting twisted‑pair, coaxial cable and external AUI transceiver expansion for various field wiring conditions.

It supports rich industrial network protocols. EGD realizes deterministic peer‑to‑peer data exchange between multiple PLC controllers; SRTP supports remote programming, online diagnosis and firmware download over LAN; Modbus TCP server/client enables data interaction with HMI, SCADA and third‑party automation devices.

IP address, subnet mask, gateway and EGD exchange configuration are saved in non‑volatile memory. Configuration will not be lost after power‑off. Front‑panel multi‑color LED indicators clearly show module running status, network link and fault information for quick field troubleshooting.

Slide‑in single‑slot installation inside Series 90‑70 rack. It is widely used in power plant auxiliary control and petrochemical process sites, used for network transformation and spare‑part replacement of old Series 90‑70 PLC automation systems.
