GE IC697CPX928‑FE Series 90‑70 High‑Speed CPU Processor Module

Technical Specifications

Model: IC697CPX928‑FE

Brand: GE Fanuc（Emerson Automation）

Product Type: Series 90‑70 high‑performance single‑slot CPU module

Microprocessor: Intel 80486DX4 32‑bit microprocessor

Clock Frequency: 96MHz

Typical Scan Speed: 0.4µs per boolean logic function

User RAM: 6MB lithium‑battery‑backed RAM，battery model IC697ACC701

Non‑volatile Flash: 256KB flash memory for firmware and user configuration

Max I/O Capacity: Up to12K mixed discrete I/O points；up to8K analog I/O channels

Floating‑point: Full 32‑bit floating‑point arithmetic support

Serial Communication Ports: 1×RS232, 2×RS485, factory reset dedicated port

Supported Serial Protocols: SNP, Modbus RTU master/slave, Genius bus communication

Programming Languages: Ladder Diagram, Statement List, Function Block, C language

Max Program Size: Large user program storage for complex process control logic

Backplane Compatibility: Standard Series 90‑70 backplane, occupies one single rack slot

Power Consumption: +5VDC 3.1A, power supplied by PLC rack backplane

Run/Stop Switch: Three‑position hardware run/stop switch on front panel

Status Indicator: 7‑channel multi‑color LED for system, fault and communication diagnosis

Configuration Software: LogicMaster 90‑70, Proficy Machine Edition

Operating Temperature:0℃ ~ +60℃，non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Weight:0.78kg

Dimension:110mm ×292mm ×44mm

Application: Power plant turbine & auxiliary control, petrochemical large‑scale process control, heavy‑industry automation, legacy Series 90‑70 PLC system upgrade and spare‑part replacement.

Product Details

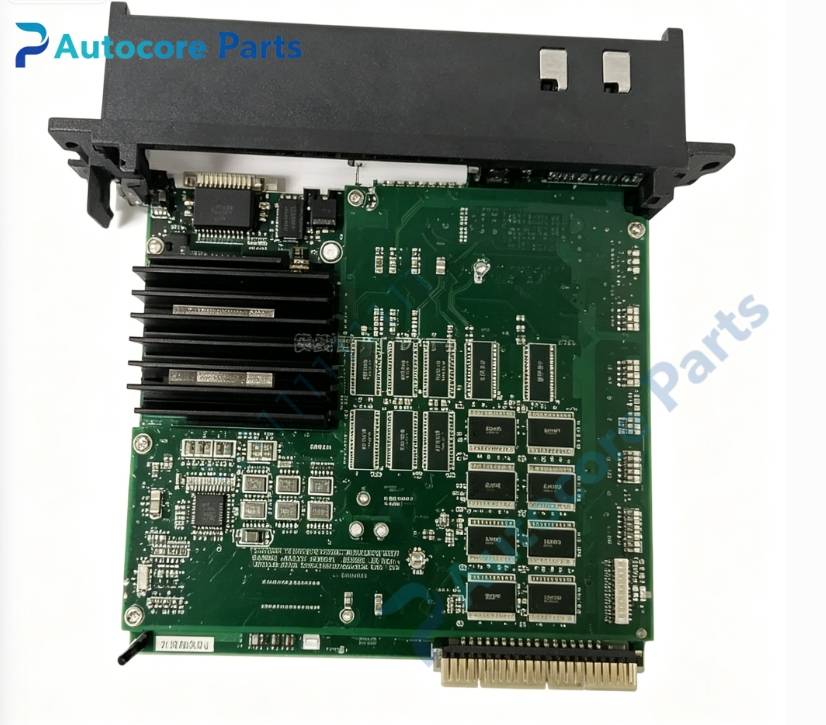

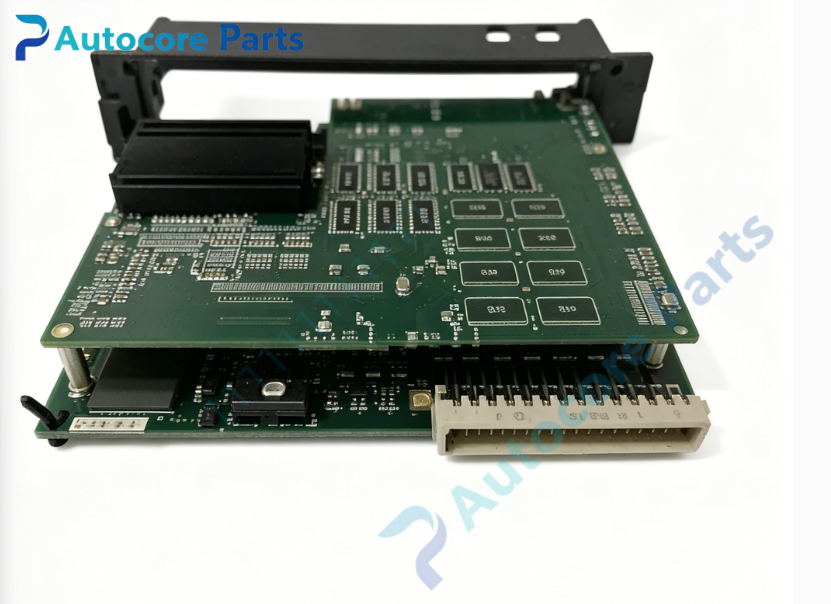

IC697CPX928‑FE is the high‑end high‑speed CPU processor for GE Fanuc Series 90‑70 PLC platform, adopting 96MHz Intel 80486DX4 32‑bit processor, designed for large‑scale complex industrial automation control projects.

This CPU is equipped with 6MB lithium‑battery‑backed RAM and 256KB non‑volatile flash memory. User logic programs, register data and system hardware configurations can be reliably preserved after power‑off. The replaceable lithium battery IC697ACC701 keeps RAM data for up to six months without rack power supply.

It delivers fast logic execution performance, typical scan speed reaches 0.4 microseconds per boolean function. It supports up to 12 thousand mixed discrete I/O points and 8 thousand analog channels, and fully supports 32‑bit floating‑point calculation for complex process algorithm operations.

Three serial ports are integrated on the module. One RS232 and two RS485 interfaces support SNP, Modbus RTU and Genius bus protocols, connecting HMI, remote I/O stations and third‑party serial field devices. The hardware run‑stop switch on front panel can manually control CPU running status. Seven independent LED indicators show system operation, fault alarm and communication link status for fast field troubleshooting.

It supports multiple programming languages, compatible with Series 90‑70 whole‑series I/O modules, Genius remote I/O and various communication coprocessor boards. It adopts single‑slot slide‑in plug‑in installation inside the 90‑70 rack. It is widely used in power, petrochemical and heavy‑industry sites, applied for maintenance, upgrading and spare‑part replacement of old large‑scale Series 90‑70 PLC automation systems.
