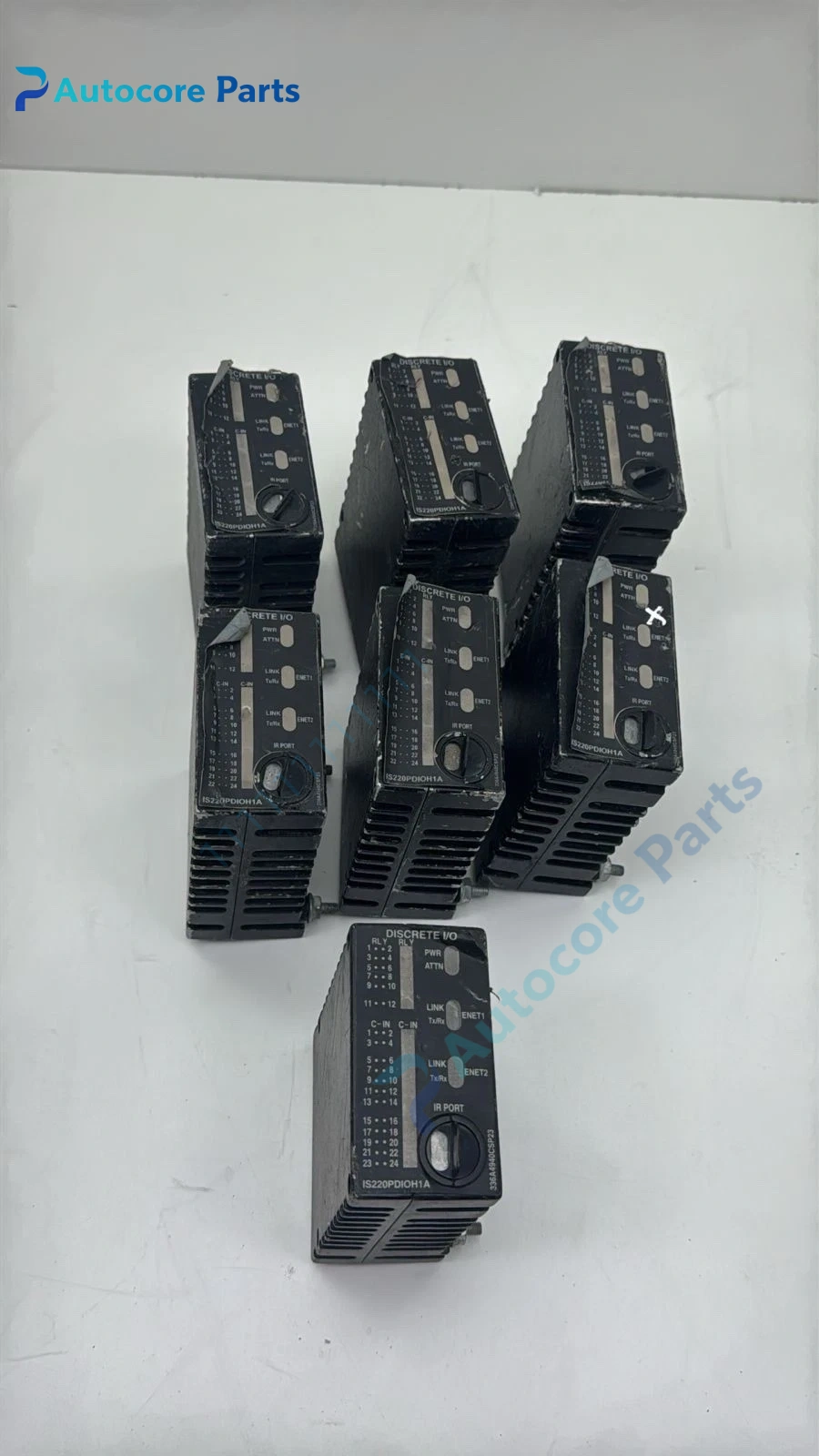

GE IS220PDIOH1A PDIO Discrete Input Output I/O Pack Unit

Module Feature

IS220PDIOH1A belongs to GE Speedtronic Mark VIe intelligent combined discrete input and output I/O pack.

It integrates 24 channels discrete input and 12 channels relay output on one pack, equivalent to combining PDIA input pack and PDOA output pack function. It adopts dual redundant IONet Ethernet communication to exchange data with Mark VIe controller. It supports hot-swap replacement without rack shutdown. Matched terminal base IS200TDBSH2A for simplex or IS200TDBTH2A for TMR redundant configuration. It collects breaker auxiliary contact, limit switch and pressure switch status, and outputs relay signal to drive solenoid valve, contactor and trip relay. It is widely stocked as maintenance spare for power plant gas turbine, steam turbine and auxiliary control cabinet.

Working principle

Field discrete signals are collected by DI channels and converted to digital data.

Pack onboard CPU uploads status to controller via dual IONet network. It receives control command from controller and triggers internal drive circuit to actuate relay outputs. Each channel has optical isolation and feedback monitoring. The module continuously compares feedback signal to detect contact failure and wiring breakage, and reports fault to control system.

Onboard components

Local processing CPU, dual IONet Ethernet transceiver, DI signal conditioning circuit, relay drive circuit, channel feedback monitoring circuit, isolation optocoupler, channel status LED array, infrared service port, rear edge connector and metal shielding housing.

LED indicators

Front LEDs indicate module power, RUN status, network link, channel active status and channel fault alarm.

Hardware self‑diagnosis

Built-in supervision detects network communication timeout, channel open/short, relay feedback mismatch, power supply anomaly and internal hardware fault. Fault logs can be viewed and downloaded by ToolboxST software.

Programming software

ToolboxST, used for point configuration, network mapping, logic download and module fault diagnosis.

Electrical & Process Parameters

Model:IS220PDIOH1A Brand:GE Device type:Mark VIe combined discrete input output I/O pack Function:Field discrete signal acquisition and relay control output for turbine and BOP safety logic

Mechanical & Structure

Mounting:Plug-in installation on dedicated terminal base Protection class:IP20 Housing:Reinforced metal industrial pack housing

Environmental

Operating temperature:-30℃ ~ +65℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, ATEX Zone2, IEC

Status:Original GE turbine control spare

Installation

Follow hot-swap operation procedure before replacement.

Lock pack firmly on terminal base, check IONet dual network connection, test DI acquisition and DO relay action together with feedback signal after installation.

Interface

Dual IONet Ethernet port, backplane signal connector, terminal base matching interface, 24VDC auxiliary power terminal.

Diagnostic

Module offline: IONet cable fault, network IP mismatch or pack hardware damage. DI no signal: Field switch open, wiring break or channel burnout. DO no output: Drive circuit damaged, relay contact burned or field coil open. Feedback mismatch: Relay contact wear, terminal loose or wiring fault.

Product Brief

GE IS220PDIOH1A combined I/O pack, Mark VIe PDIO DI+DO spare card for gas turbine and steam turbine control cabinet replacement.
