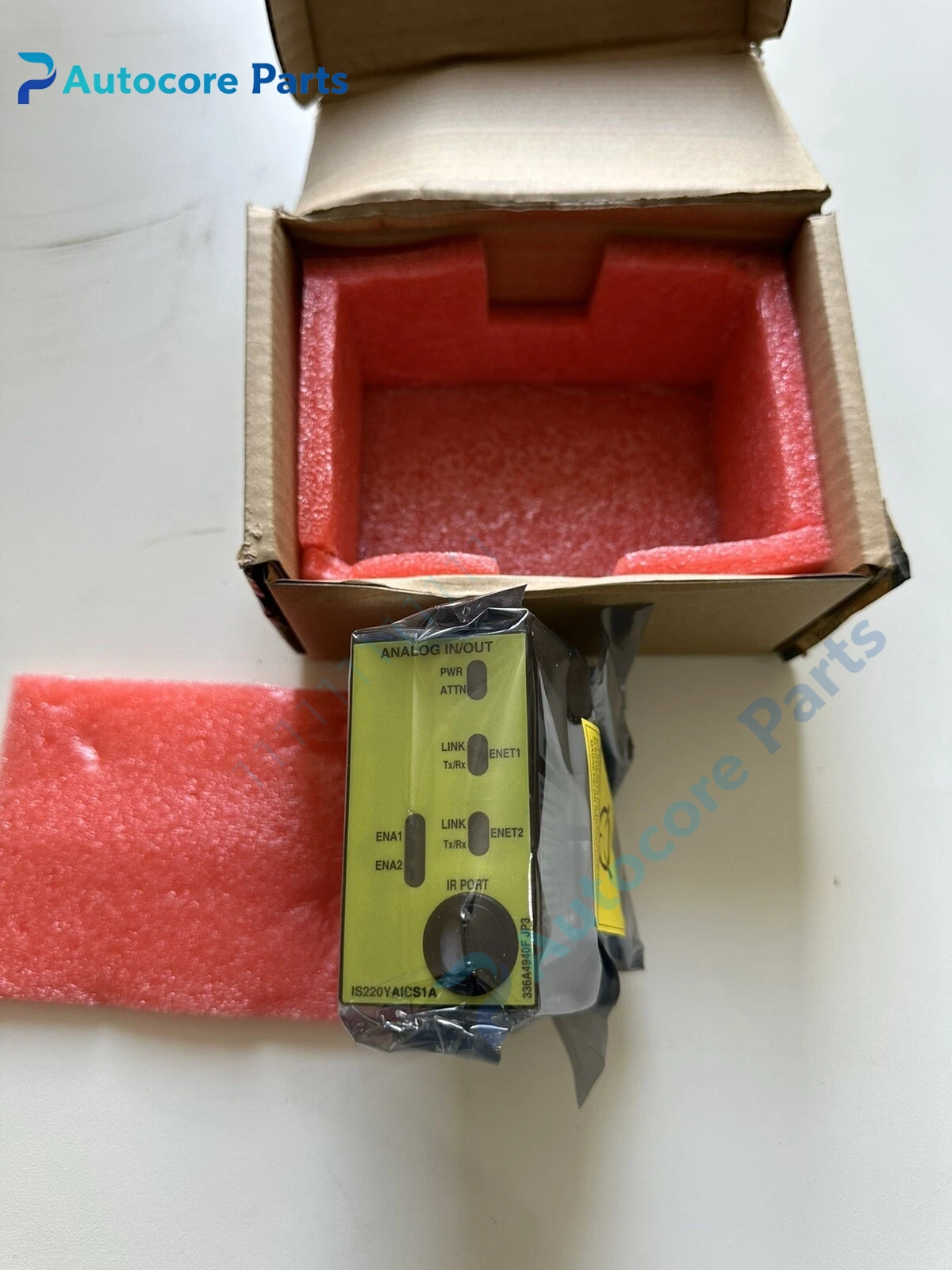

GE IS220YAICS1A Turbine Control I/O Module Unit

Module Feature

IS220YAICS1A belongs to GE Mark VIe control system YAICS series analog I/O pack, dedicated for power turbine control application.

It supports multi-channel 4-20mA and 0-10V analog signal sampling and output, 16-bit high resolution conversion, channel isolation design to suppress EMC interference. It communicates with UCS controller via high-speed Ethernet backplane bus, supports hot swap function. The module collects field transmitter signals and outputs analog command to valve positioners and actuators. It has built-in signal range supervision, suitable for boiler, gas turbine and combined cycle power generation control cabinet.

Working principle

Field analog measurement signals enter the module, the internal ADC converts analog value into digital data and uploads to Mark VIe main controller.

Controller executes control algorithm and sends setpoint back to this module, the DAC converts digital command into standard 4-20mA / 0-10V analog signal to drive field control equipment. The module continuously monitors signal quality and reports wire break, short circuit and over-range fault to the system.

Onboard components

Analog signal conditioning circuit, ADC/DAC chip, FPGA communication processor, isolated Ethernet transceiver, surge protection circuit, status indicator panel, edge backplane connector, terminal matching circuit.

LED indicators

Front LEDs indicate power supply, link running, communication active, signal fault and module health status.

Hardware self‑diagnosis

Built-in supervision detects signal open circuit, short circuit, out-of-range, backplane link loss, over-temperature and internal hardware error. Fault information can be checked on Mark VIe ToolboxST software.

Programming softwareToolboxST, used for channel configuration, signal range setup, alarm threshold definition, fault log review and module calibration.

Electrical & Process Parameters

Model:IS220YAICS1A Brand:GE Device type:Mark VIe YAICS analog I/O interface module Function:Analog signal acquisition and analog control output for turbine control system

Mechanical & Structure

Mounting:Plug-in slot installation inside Mark VIe I/O rack Protection class:IP20 Housing:Reinforced metal and plastic industrial module housing

Environmental

Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC

Status:Original GE turbine control spare

Installation

Confirm rack power supply normal, insert module into correct slot, lock the fixing screw.

Wire field transmitters and actuators to matched terminal board, download I/O configuration and perform loop test before commissioning.

Interface

High-speed Ethernet backplane port, analog signal terminal matching interface, 24VDC auxiliary power terminal.

Diagnostic

Signal fault alarm: Field cable open/short, transducer failure or signal range mismatch. Communication offline: Backplane network failure, slot configuration mismatch or module hardware damage. Output unstable: Power ripple, grounding interference or DAC channel drift.

Product Brief

GE IS220YAICS1A YAICS module, Mark VIe analog I/O spare part for gas turbine and steam turbine power generation control cabinet replacement.
