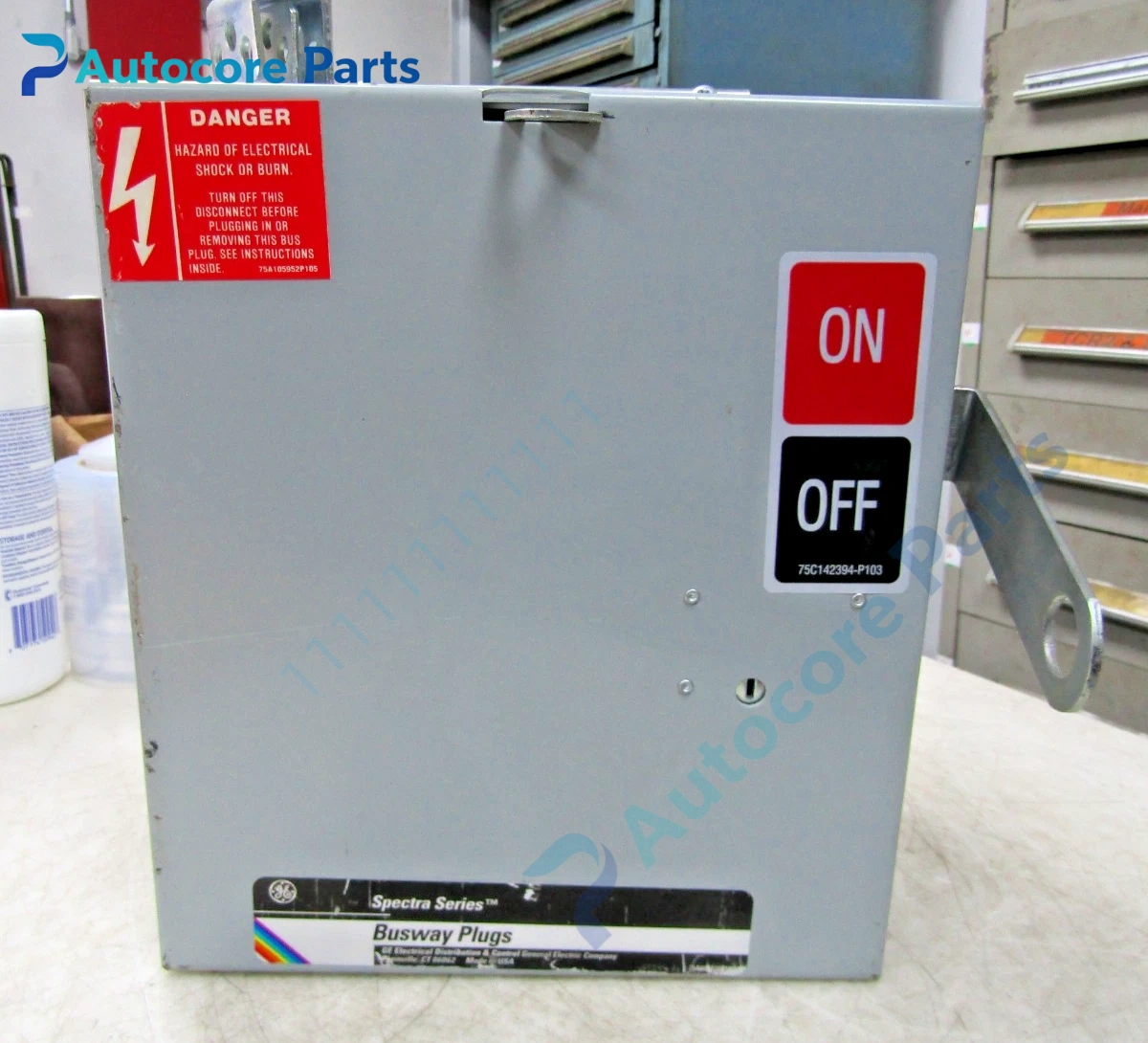

GE SB462RG Bus Plug Unit

Module Feature

SB462RG belongs to GE Spectra SB busway series. It is a plug-in fusible tap for GE Spectra sandwich busway system, 3-pole 4-wire configuration with ground, rated 60A, max voltage 600VAC. This bus plug adopts aluminum housing, built-in fuse clips for Class R fuses, providing overload and short-circuit protection for downstream branch circuits. It is equipped with manual disconnect handle and mechanical safety interlock mechanism to prevent cover opening under energized condition. The plug-in design allows quick installation and removal on matched Spectra busway for flexible power branch expansion. Widely used in factory low voltage trunk power distribution, workshop production line power supply and industrial MCC busway systems.

Working principle

GE SB462RG bus plug is inserted and locked onto Spectra busway. Internal contact block connects with the main bus bar to draw power. When overload or short-circuit fault occurs, the internal fuse melts and cuts off fault current to protect downstream cables and loads. The disconnect handle provides visible isolation gap for maintenance lockout-tagout. The mechanical interlock prohibits opening the fuse compartment while the plug is energized.

Onboard components

Aluminum enclosure, plug-in contact assembly, fuse clip holders, rotary disconnect handle, mechanical interlock, arc shield, load cable terminal block, grounding lug.

LED indicators

No onboard LED indicators.

Hardware self-diagnosis

Visual inspection of contact ablation, housing deformation, interlock jamming; contact resistance test, insulation resistance measurement, check temperature rise at contact points.

Programming software

No configuration software required.

Electrical & Process Parameters

Model:SB462RG Brand:GE Device type:Fusible Bus Plug Rated voltage:480/600VAC Pole:3P4W Rated current:60A Short circuit rating:200kA @480VAC Compatible fuse:Class R fuse Protection:Overload, short circuit protection by fuse

Mechanical & Structure

Mounting:Plug-in mount for GE Spectra sandwich busway Protection class:IP20 Housing:Aluminum powder coated enclosure

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL compliant Status: GE original Spectra series fusible bus plug for low voltage busway power distribution

Installation

Follow lockout-tagout safety procedure before operation. Align GE SB462RG bus plug with Spectra busway guide rail, insert and lock the latch. Install matched Class R fuses and tighten downstream load cable lugs. Test handle on-off operation and verify interlock function before power restoration.

Interface

Busway plug-in contact interface, load outgoing screw terminals, grounding terminal.

Diagnostic

Plug overheating: poor contact or contact surface oxidation. Handle cannot operate: interlock mechanism stuck. Fuses blow repeatedly: downstream overload or short circuit fault.

Product Brief

GE SB462RG Spectra series 3P4W fusible bus plug, 60A 480/600VAC aluminum housing, plug-in tap with Class R fuse protection, used for GE Spectra busway branch power tapping.
