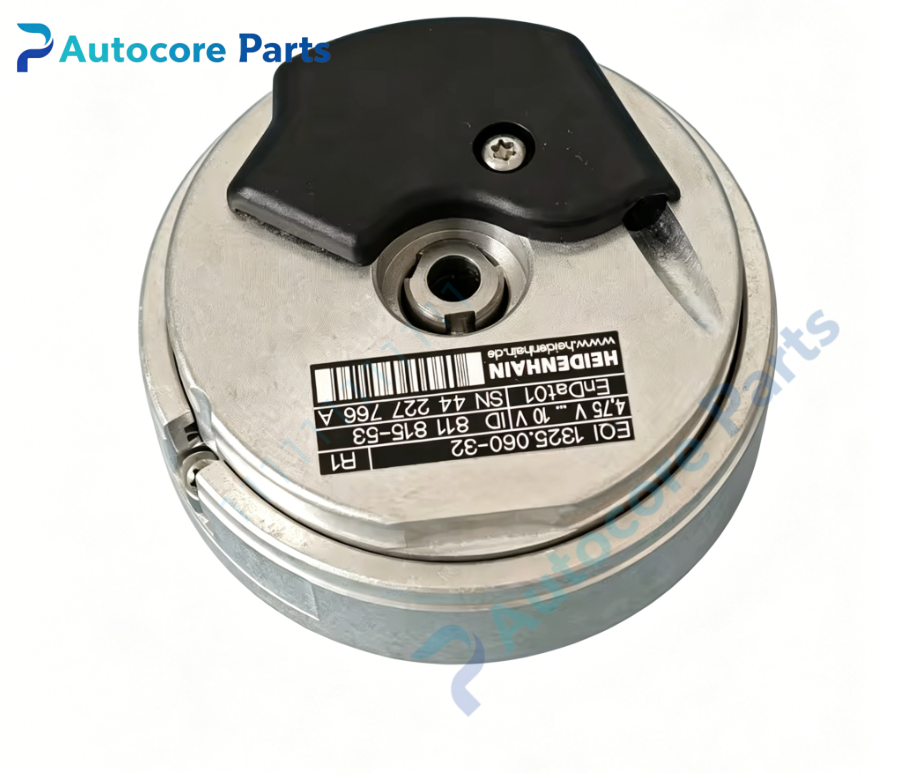

HEIDENHAIN EQI 1325.060-32 Absolute Rotary Encoder

Technical Specifications

Model：EQI 1325.060-32 Brand：HEIDENHAIN Product Type: Non-bearing inductive multiturn absolute rotary encoder for servo motors and spindles

Module Feature

Function: HEIDENHAIN EQI 1325.060-32 is a hollow-shaft multiturn absolute rotary encoder based on inductive scanning principle. It outputs absolute position data immediately after power-on without axis homing. The hollow shaft design allows direct mounting through the motor shaft. It features strong resistance to dust, oil mist and mechanical vibration. Widely used on heavy horizontal boring mills, high precision machining centers and closed-loop servo drive systems.

Measuring principle: Inductive absolute scanning Hollow shaft specification: Open hollow shaft, supports large axial mounting tolerance Interface: EnDat Onboard components: Inductive rotor/stator measuring unit, metal housing, 12-pin M23 connector

LED indicators: POWER, COM, FAULT diagnostic lights

Hardware self-diagnosis

Internal temperature monitoring, signal amplitude detection, EnDat communication fault diagnosis

Programming software

HEIDENHAIN diagnostic software for encoder parameter reading and fault log retrieval

Electrical Parameters

Supply voltage: 3.6VDC ~14VDC Power consumption: Max 0.9W

Mechanical & Structure

Mounting: Hollow shaft directly fitted onto motor rotor shaft Protection class: IP40 (housing)

Environmental

Operating temperature: -40℃ ~ +115℃ Ambient humidity: 5~85% non-condensing Certification: CE Status: HEIDENHAIN heavy-duty inductive multiturn absolute rotary encoder

System compatibility

Compatibility description: EQI1325 series belongs to HEIDENHAIN EQI1300 encoder family with EnDat interface. Compatible with HEIDENHAIN CC series control units. Suitable for Fives Giddings & Lewis PIC900 CNC heavy boring mill spindle and servo axis.

Function

Function description: EQI 1325.060-32 is inductive multiturn absolute rotary encoder manufactured by HEIDENHAIN. The open hollow shaft structure simplifies installation and compensates axial installation deviation. Multiturn function records multiple revolutions, absolute position is available instantly after power up. Inductive scanning technology provides excellent immunity to minor contamination and high mechanical vibration. It is high precision rotary measuring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder DC power. Fit EQI1325 encoder hollow shaft onto motor rotor shaft and secure anti-rotation stator assembly. Connect shielded EnDat encoder cable to servo control unit. Restore power, verify LED indicators, run encoder signal test and spindle orientation calibration.

Interface

Interface list: M23 12-pin flange connector, DC power and EnDat signal terminals,on-board POWER / COM / FAULT LED indicators for HEIDENHAIN EQI 1325.060-32.

Diagnostic

Troubleshooting: No encoder communication: Check 3.6~14V DC supply, cable breakage or connector pin damage. FAULT LED lit: EnDat communication timeout, low signal amplitude, over-temperature or shaft misalignment. Spindle positioning error: Rotor eccentricity, loose anti-rotation bracket or debris on measuring area.

Product Brief

Brief description: EQI 1325.060-32 HEIDENHAIN hollow-shaft inductive multiturn absolute rotary encoder with EnDat interface,provides absolute angular position and speed feedback for heavy CNC boring mill spindle and servo motor closed-loop control,rotary encoder spare.
