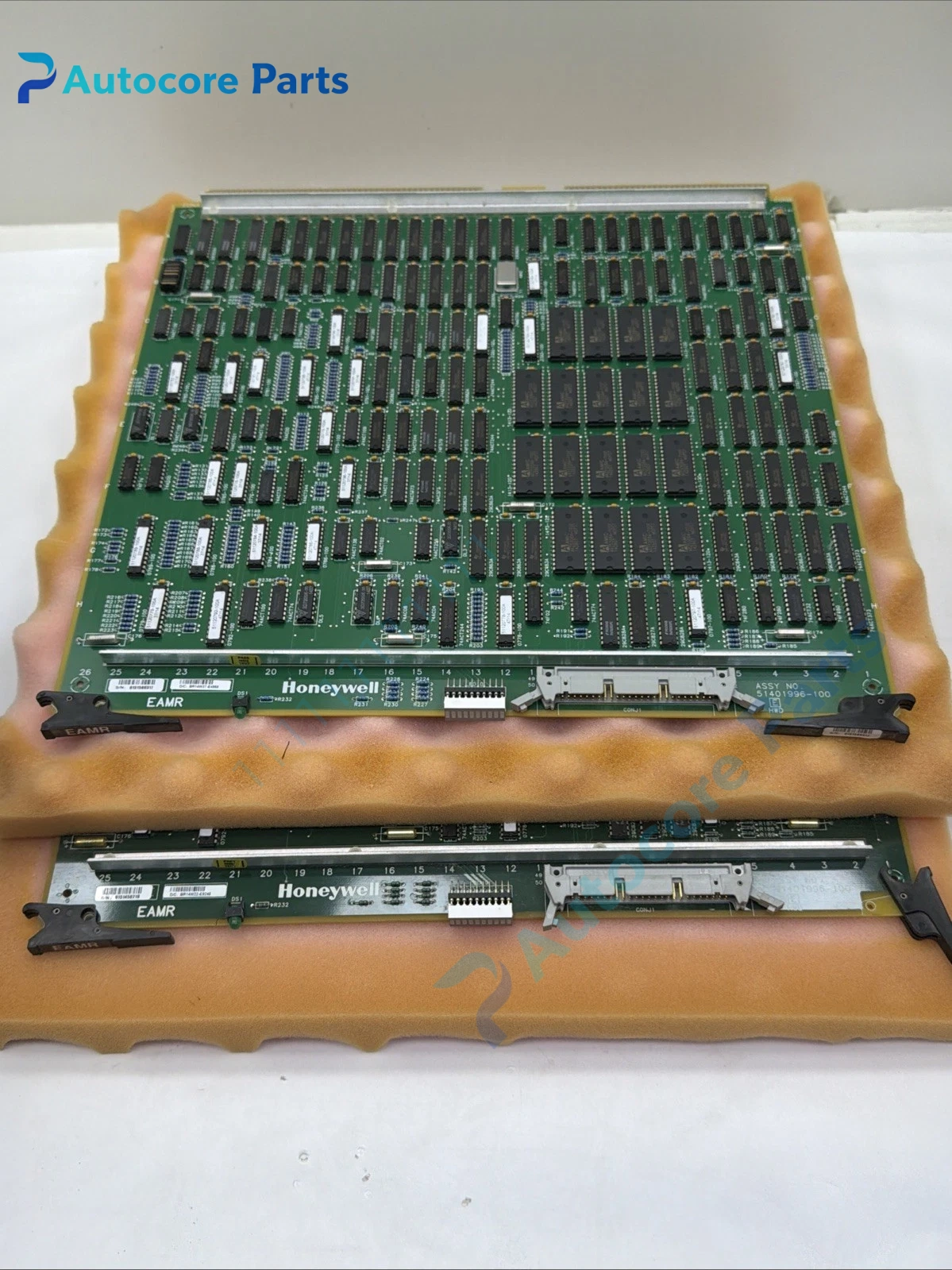

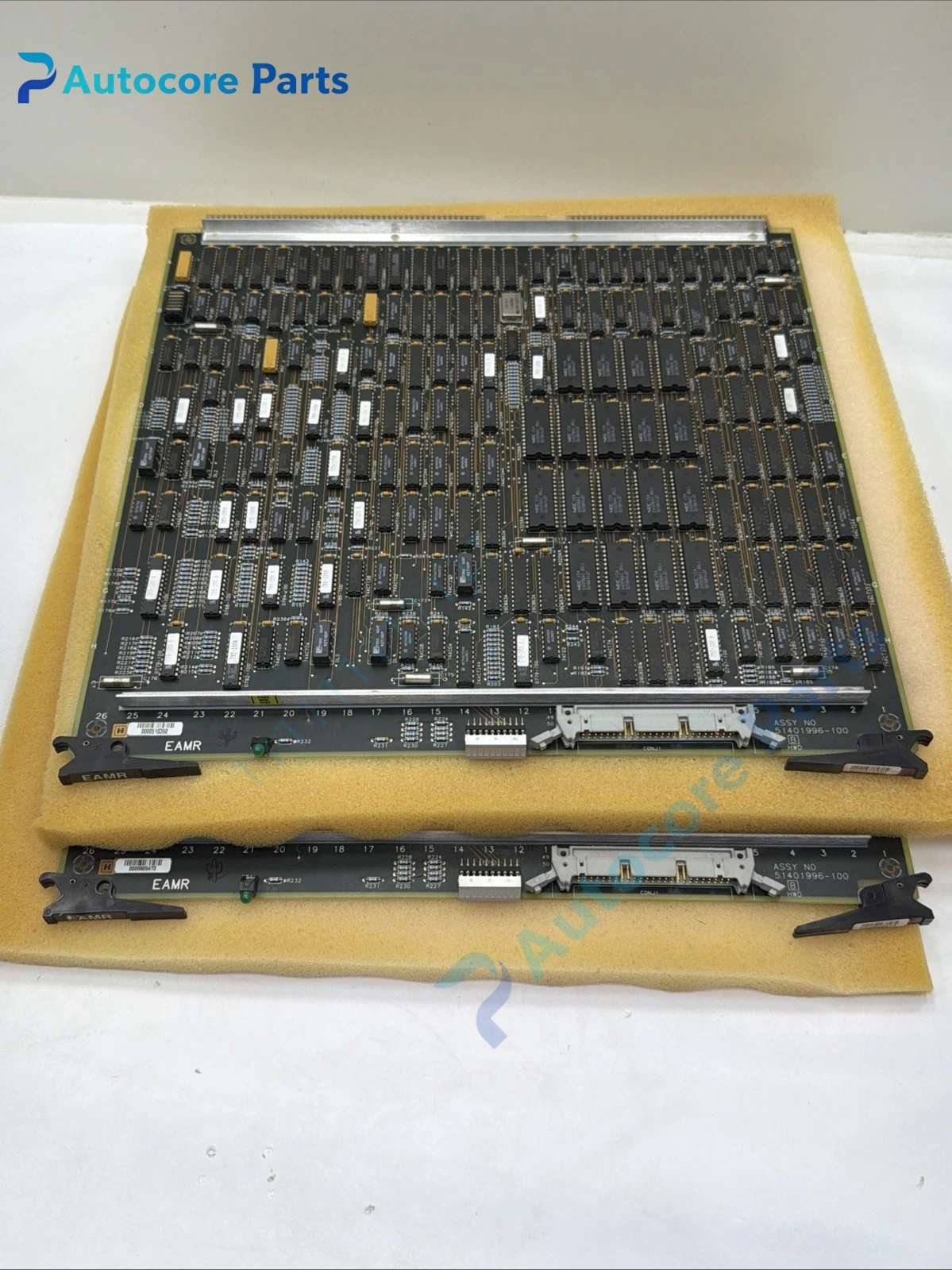

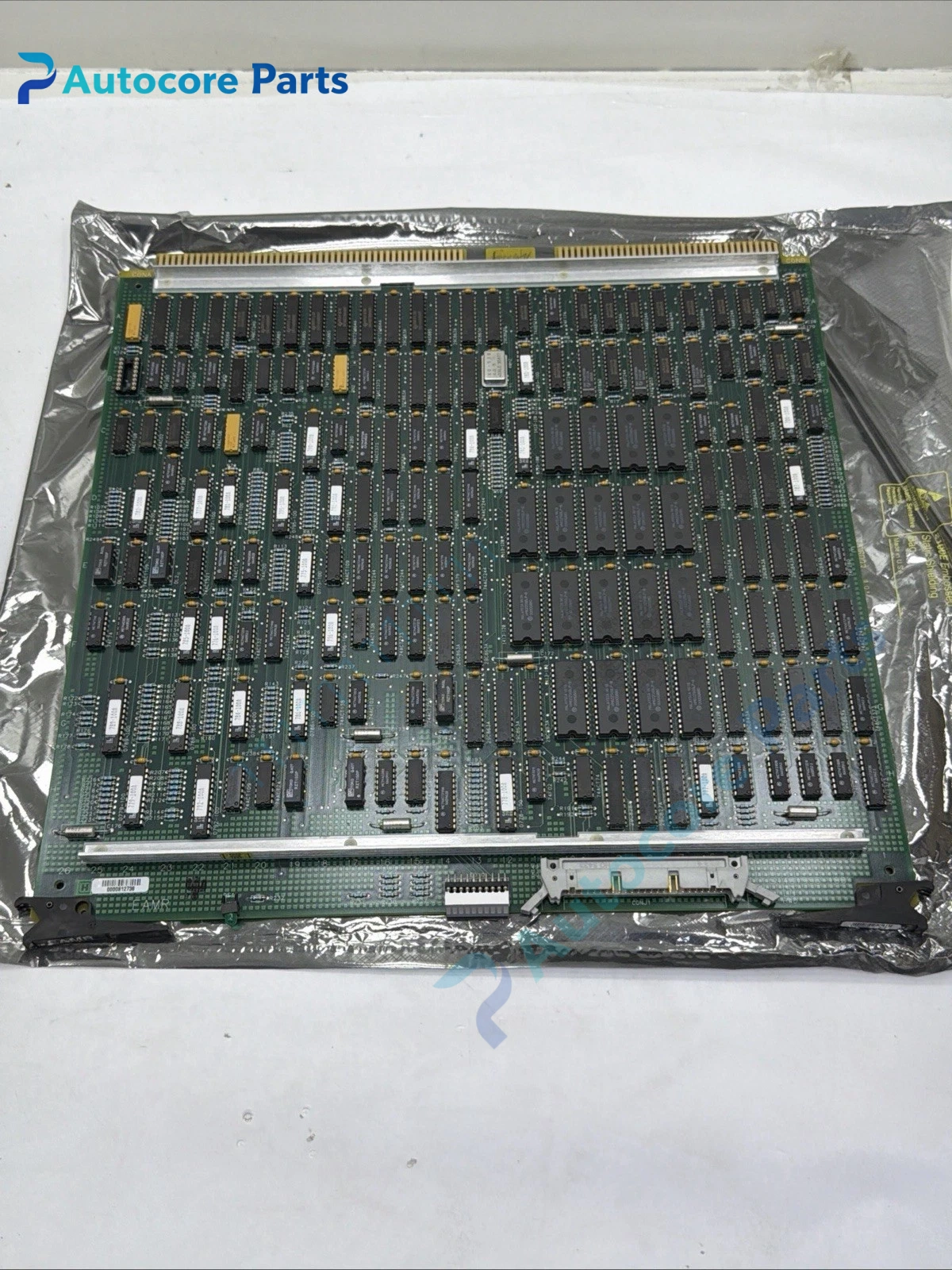

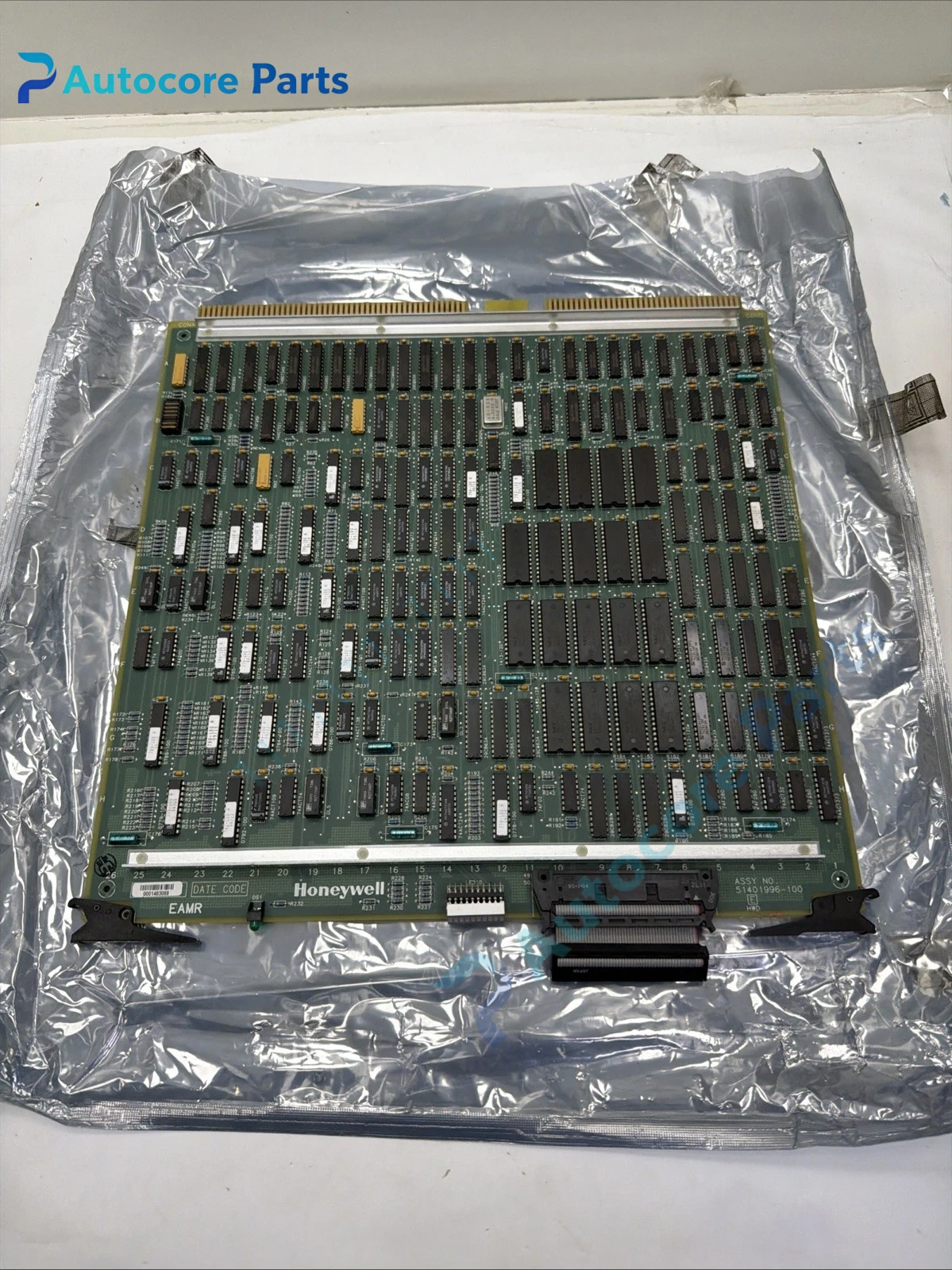

Honeywell 51401996-100 EAMR Redundancy Card Unit

Module Feature

51401996-100 is the EAMR enhanced application module redundancy card for Honeywell TDC3000 DCS system.

It is used together with primary and standby AM application modules, completes high-speed real-time data mirroring and state synchronization. It supports hot swap and instantaneous standby takeover, widely used in chemical, oil & gas and power plant high availability process control cabinet.

Working principle

The card continuously synchronizes memory and control data between active and backup AM modules.

When the primary module fails, it triggers fast switching to standby module without interrupting control logic. It monitors the health status of both channels and reports fault information to the DCS host.

Onboard components

Redundancy processing chip, high-speed data buffer, dedicated interconnection interface, backplane bus connector, status LED array.

LED indicators

Onboard LEDs show power supply, module run state, synchronization status and redundancy fault alarm.

Hardware self‑diagnosis

Power-on self-test and continuous monitoring detect synchronization loss, channel mismatch, communication failure and hardware anomaly, fault information is uploaded to DCS station.

Programming software

Honeywell TDC3000 Configuration Tool, used for AM redundancy setting and fault event review.

Electrical & Process Parameters

Model:51401996-100 Brand:Honeywell Device type:EAMR redundancy card System:TDC3000 DCS Supply voltage:24V DC Function:Application module redundancy synchronization and failover control

Mechanical & Structure

Mounting:Plug-in installation on TDC3000 chassis backplane

Protection class:IP20

Housing:PCB assembly with metal shielding frame

Environmental

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Ambient humidity:5~95% non‑condensing

Certification:CE

Status:Original discontinued DCS spare

Installation

Cut off cabinet power before replacement, insert card into designated chassis slot and lock fasteners.

Connect interconnection cable between paired AM modules, download redundancy configuration and verify switchover test.

Interface

Backplane bus connector, AM module synchronization signal connector.

Diagnostic

Redundancy sync loss: Loose signal cable, mismatched AM firmware version.

Module fault alarm: Hardware damage on EAMR card.

Failover invalid: Wrong redundancy parameter setting.

Product Brief

Honeywell 51401996-100 TDC3000 EAMR redundancy card, synchronization board for application module hot backup and seamless failover.
