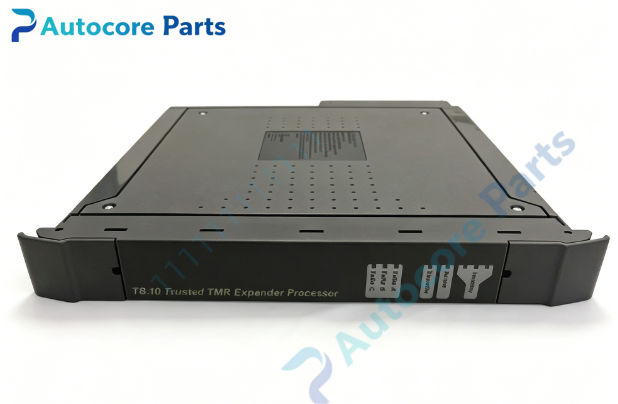

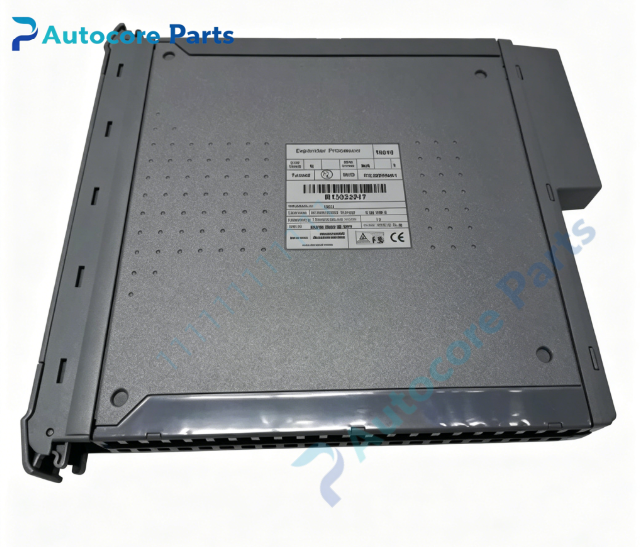

ICS TRIPLEX T8310 Expander Processor Module

Technical Specifications

Model:T8310

Brand:ICS TRIPLEX

Product type:TMR expander processor module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8300 expander chassis,T8110 series main processor,T8311 expander interface,T8312 adapter,T84xx I/O modules

Redundancy:TMR triple modular redundant hot swap architecture

Power bus:20~32V DC from T8300 chassis backplane

Data transfer rate:250Mbps

Connection:Matched with T8312 adapter and TC-301 hot link cable

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:1.14kg

Certification:CE,TÜV,SIL3

System compatibility

This expander processor hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs in T8300 expander chassis. It communicates with T8100 main controller chassis via dedicated hot link cable,collects all I/O signals from T84xx modules inside expansion rack and transfers data to main CPU. Widely used in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8310 serves as high integrity expansion processing unit of Trusted TMR SIS. It adopts HIFT hardware fault tolerant TMR architecture,responsible for local I/O data acquisition and forwarding between main controller and expander rack. It continuously runs comprehensive self-diagnosis to detect internal hardware fault,backplane error and link communication abnormality. Single slice failure will not interrupt system operation.

Installation

Insert T8310 vertically into dual processor slot of T8300 expander rack. Install T8312 expander interface adapter,connect TC-301 hot link cable between main chassis and expander chassis. Check processor operating status and fault information via Trusted Workbench.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑Rear port for T8312 adapter and TC-301 hot link cable

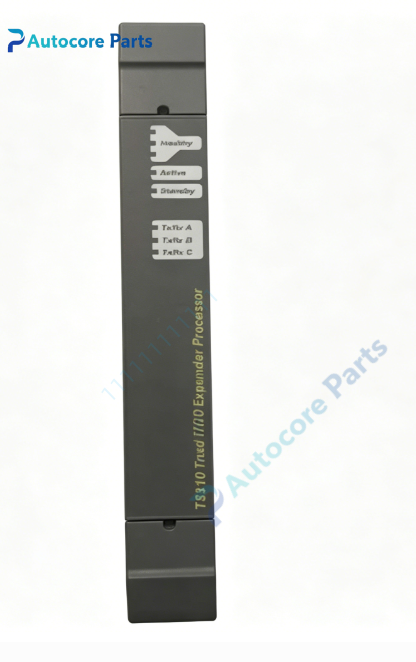

‑Three slice health LED indicators

‑LED indicators for active/standby,alarm and fault status

‑Onboard TMR voting and high-speed data processing circuit

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple channel hardware voting fault tolerant design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8310 is spare expander processor board for ICS TRIPLEX Trusted SIS. Common faults include core chip damage,memory failure and hot link communication fault. Confirm T8300 chassis slot definition and cable compatibility before replacement.

Diagnostic

When internal hardware failure,hot link disconnection or backplane communication error is detected,the module triggers fault alarm and uploads diagnostic messages to safety workstation.

Built‑in function

Expander rack I/O signal processing,high-speed data bridging and hardware self-diagnosis for Trusted TMR expansion rack,used as SIS expander processor spare replacement.

Product Brief

T8310 is ICS TRIPLEX Trusted SIL3 TMR expander processor module,hot swappable,installed in T8300 expander chassis,works with T8312 adapter and TC-301 cable. Verify system compatibility before ordering. ESD anti-static protection must be followed during handling installation.
