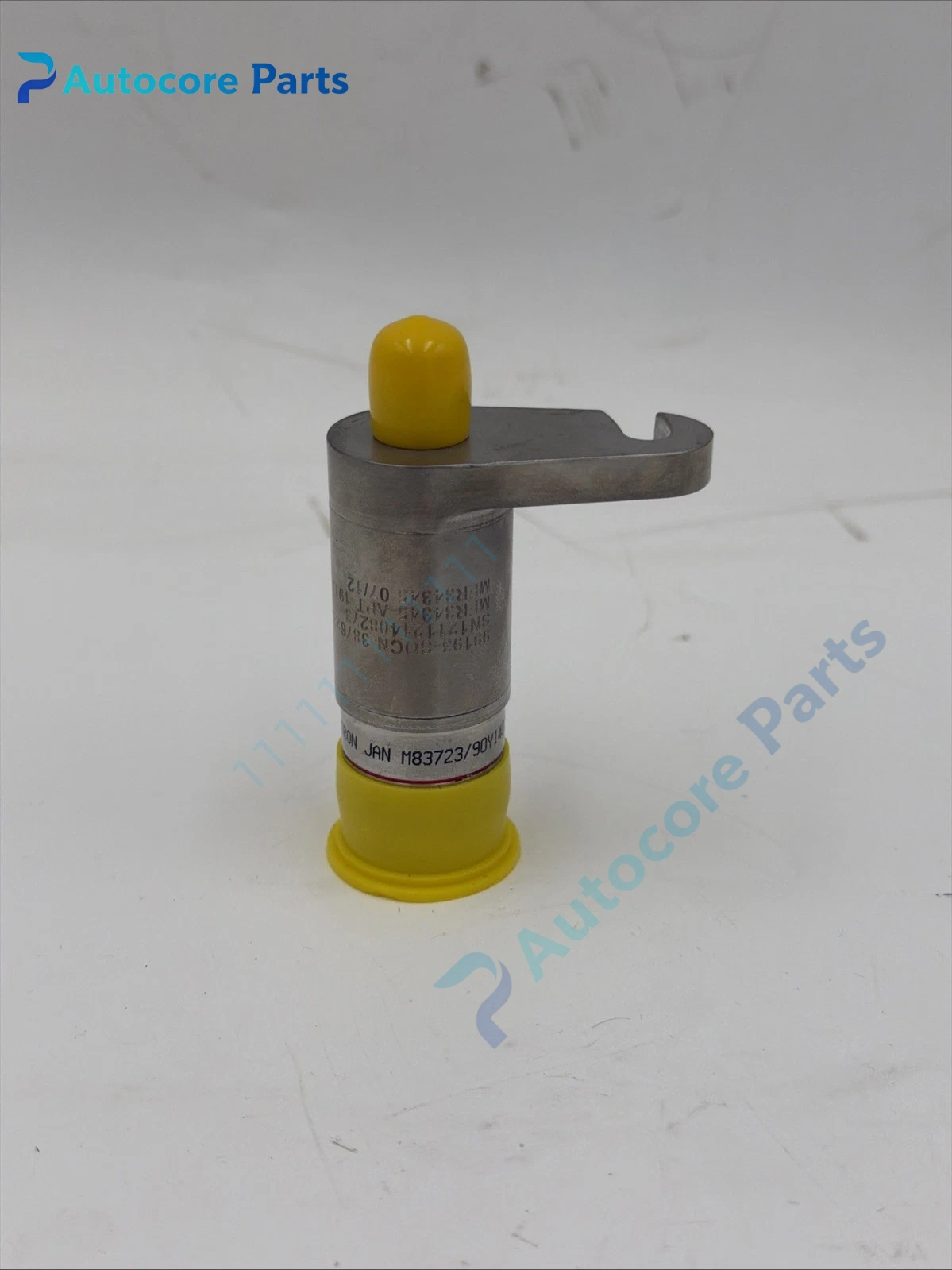

ITT Neo-Dyn 99193-SOCN-3876225-2 Pressure Switch Unit

Module Feature

99193-SOCN-3876225-2 is ITT Aerospace Neo-Dyn series hermetically sealed pressure switch for aviation and defense fluid system.

It adopts diaphragm or piston sensing structure, wetted material is corrosion resistant stainless steel. SPDT gold-plated contact for low-current dry signal switching, set point can be calibrated at factory. Hermetic sealed housing prevents fluid leakage and moisture ingress. It outputs discrete switch signal when fluid pressure reaches trip threshold, widely used as spare for aircraft engine lubrication oil, fuel and hydraulic pipeline pressure protection.

Working principle

Process fluid pressure acts on internal sensing diaphragm or piston.

When pressure rises or drops to preset trip point, mechanical force overcomes spring preload to trigger SPDT contact switching. The contact state changes and sends digital alarm or interlock signal to aircraft control unit. Hysteresis is fixed during calibration to avoid chattering caused by minor pressure fluctuation.

Onboard components

Pressure sensing diaphragm/piston, adjustable spring assembly, SPDT gold contact group, hermetic sealed metal housing, threaded process port, circular military electrical connector.

LED indicators

Not applicable. Switch status is read by host controller discrete channel.

Hardware self‑diagnosis

No built-in electronic self-diagnosis. System judges switch failure by stuck contact, missing state change and pressure trend mismatch.

Programming software

Not applicable, factory preset trip point.

Electrical & Process Parameters

Model:99193-SOCN-3876225-2 Brand:ITT Aerospace Neo-Dyn Device type:Aerospace hermetic pressure switch Function:Pressure threshold detection and discrete contact output for aviation fuel, oil and hydraulic system

Mechanical & Structure

Mounting:Thread port inline mounting on fluid manifold Protection class:Hermetic sealed, IP67 Housing:Stainless steel alloy aerospace housing

Environmental

Operating temperature:-55℃ ~ +120℃ Storage temperature:-55℃ ~ +135℃ Ambient humidity:5~95% non‑condensing

Certification:AS9100, MIL aerospace standard

Status:Original ITT aerospace spare

Installation

Depressurize fluid circuit before replacement.

Do not modify factory calibrated set point, tighten thread to specified torque, perform functional pressure test after installation.

Interface

Threaded fluid pressure port, military spec circular electrical connector.

Diagnostic

No switching action: Sensing element blocked, spring fatigue or contact burnout. Intermittent trip: Vibration induced loose internal component or contact contamination. Leakage: Diaphragm rupture or thread seal failure.

Product Brief

ITT Neo-Dyn 99193-SOCN-3876225-2 pressure switch, hermetic aerospace pressure sensing spare for aircraft fuel, lube oil and hydraulic monitoring circuit replacement.
