Johnson Controls MS-NCE2560-0 Metasys NCE25 Network Control Engine Unit

Feature & Principle

Integrated network supervisory and field DDC controller, combines NAE supervisory function and FEC local control, supports multi-protocol trunk communication, collects HVAC sensor data and executes control logic for air handlers and central plant.

Specifications

Model: MS-NCE2560-0 Brand: Johnson Controls Series: Metasys NCE25 Power: 24V AC Communication: Ethernet, BACnet MS/TP, Modbus RTU/TCP Mounting: DIN rail / surface mount Certification: CE

Components & Diagnostics

Embedded mainboard, Ethernet port, isolated RS485 bus terminal, status LED, backup battery socket and SA Bus expansion port. Common faults: bus communication offline, battery low causing data loss, web interface access failure.

Product Brief

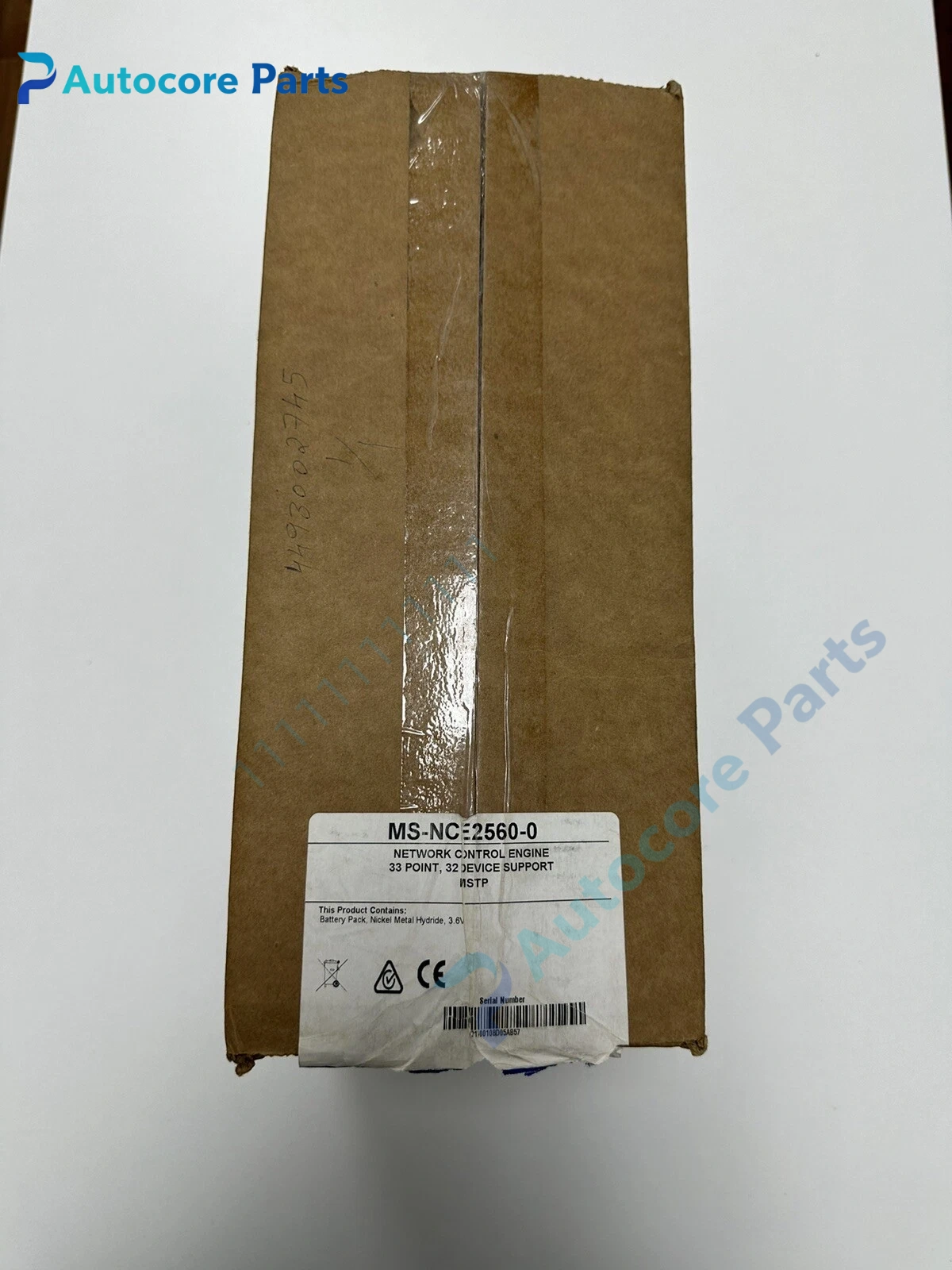

MS-NCE2560-0 controller, Johnson Controls Metasys building automation spare used for HVAC central plant and air handler monitoring and control.
