Kollmorgen BJRL-20012-110001 Servo Drive Spare Part

Technical Specifications

Model:BJRL-20012-110001

Brand:Kollmorgen

Part No:BJRL-20012-110001

Product type:Digital servo amplifier

Input voltage:1/3 phase 220V AC,50/60Hz

Continuous output current:6.5A RMS

Peak output current:13A RMS

Switching frequency:30kHz

Dimension:152mm102mm45mm

Weight:0.5kg

Feedback interface:Resolver, incremental encoder

Mounting:Eurocard rack slot mounting

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

BJRL-20012-110001 belongs to Kollmorgen Goldline BJRL servo drive family,matched with Kollmorgen Goldline series brushless servo motors,widely used in old CNC machine tools,precision positioning equipment,packaging and printing automation systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

BJRL-20012-110001 is eurocard rack-mounted four-quadrant digital servo amplifier adopting V-MOS power technology.It supports speed and torque control mode,accept ±10V analog command signal.Resolver or incremental encoder feedback realizes closed-loop speed and position control,supports regenerative energy feedback.It features compact card structure and high switching frequency,stable for high-speed precision positioning applications.Built-in overcurrent,overvoltage,undervoltage and overtemperature protection,parameter configuration via dedicated software.

Installation

Install BJRL-20012-110001 into standard eurocard rack slot.Connect AC power wiring,motor power cable and encoder/resolver feedback cable.Fasten connectors,complete shielding and grounding inspection before power-on test.

Interface

‑220V AC single/three phase power terminal

‑3 phase motor power output terminal

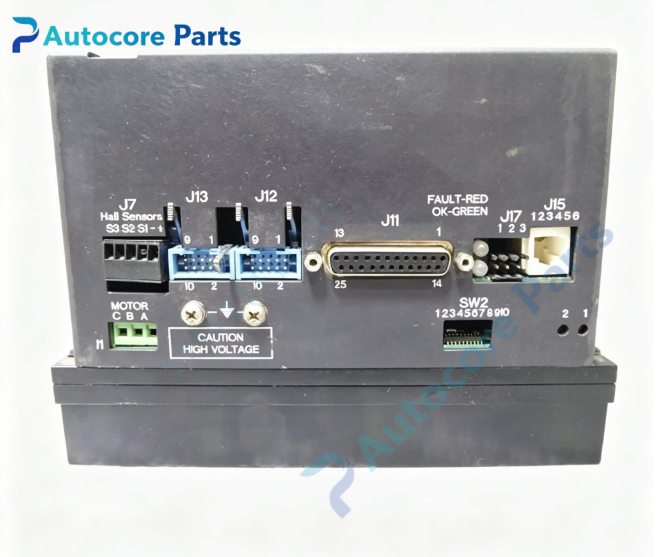

‑Resolver / incremental encoder feedback connector

‑±10V analog command port

‑Digital input and output terminal

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,V-MOS four-quadrant power stage,integrated dynamic braking circuit,multi fault protection circuit,compact eurocard form factor,high speed response.

Feature

BJRL-20012-110001 is obsolete Kollmorgen spare part.Typical faults:power transistor damage,electrolytic capacitor aging,feedback circuit failure,connector pin oxidation.Test DC bus voltage,three-phase output balance and feedback signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no rotation,axis jitter,position drift,intermittent positioning error.

Built‑in function:Command signal processing,motor power amplification,speed/torque closed-loop control,fault safety protection,as Kollmorgen Goldline BJRL series rack servo amplifier spare replacement.

Product Brief

BJRL-20012-110001 is Kollmorgen Goldline BJRL series eurocard rack servo amplifier,6.5A continuous output,4-quadrant V-MOS power stage,matched with Goldline brushless motors for legacy precision automation equipment maintenance.Confirm power supply type and feedback signal before ordering.ESD protection required during handling and installation.
