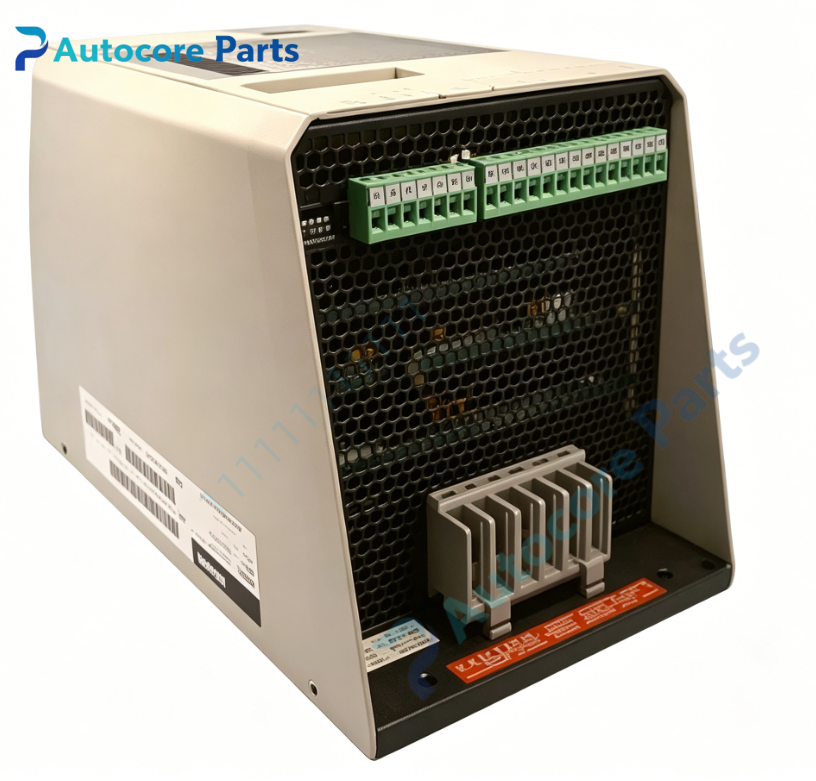

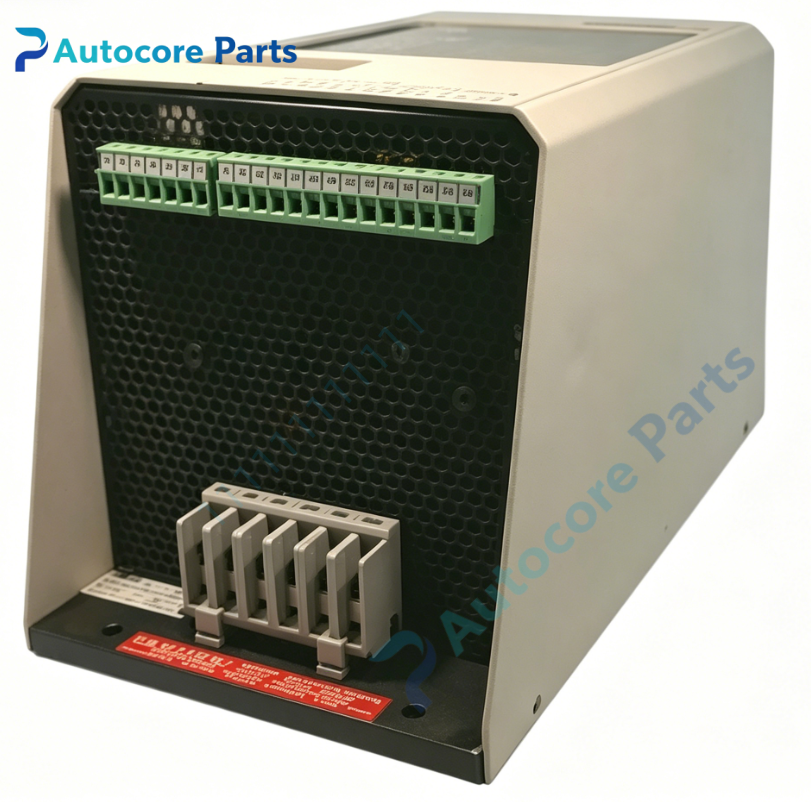

MODICON 110-222 Power Supply Module

Technical SpecificationsModel:110-222 Brand:MODICON Product Type:Micro Series PLC Rack Power Supply Module Input Voltage:100~240V AC Output Voltage:24V DC Output Power:40W Mounting:Cabinet DIN rail mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.32kg Dimension:185mm90mm70mm Protection:IP20

System compatibility110-222 belongs to MODICON Micro series power supply module. Compatible with MODICON Micro series CPU and expansion I/O modules. It provides stable DC power for the whole Micro PLC rack. Suitable for packaging machinery, small production line, standalone machine control system replacement as industrial spare part.

Function110-222 is dedicated power supply unit for MODICON Micro PLC system. It converts alternating current input into stable 24V DC power, supplies power to CPU and expansion I/O modules. It has overvoltage, overcurrent and short circuit protection functions. Widely used for small automation PLC rack power supply, serving as reliable power spare part.

InstallationCut off main power before installation. Mount the 110-222 module on DIN rail inside electrical cabinet. Connect AC input wiring and DC output bus wiring. Power on and test output voltage before formal operation.

InterfaceAC input terminals,DC output bus terminals,power status LED indicators for 110-222 MODICON power supply module.

FeatureMODICON 110-222 Micro series PLC power supply,wide AC input range,built-in multiple protection,compact DIN rail installation,stable continuous output,IP20 cabinet protection. This discontinued legacy industrial spare part used for old Micro PLC system maintenance and replacement.

DiagnosticNo DC output: check AC input, fuse and power wiring for 110-222. Output voltage unstable: inspect input voltage fluctuation and load overload condition. Power LED off: verify main power supply and internal fuse status. Overload alarm: check short circuit of backplane bus and I/O wiring. Abnormal heat: check excessive load and cabinet ventilation.

Product Brief110-222 is MODICON Micro series PLC rack power supply module. It supplies 24V DC power for Micro series CPU and expansion I/O modules, classic spare part for small legacy automation equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
