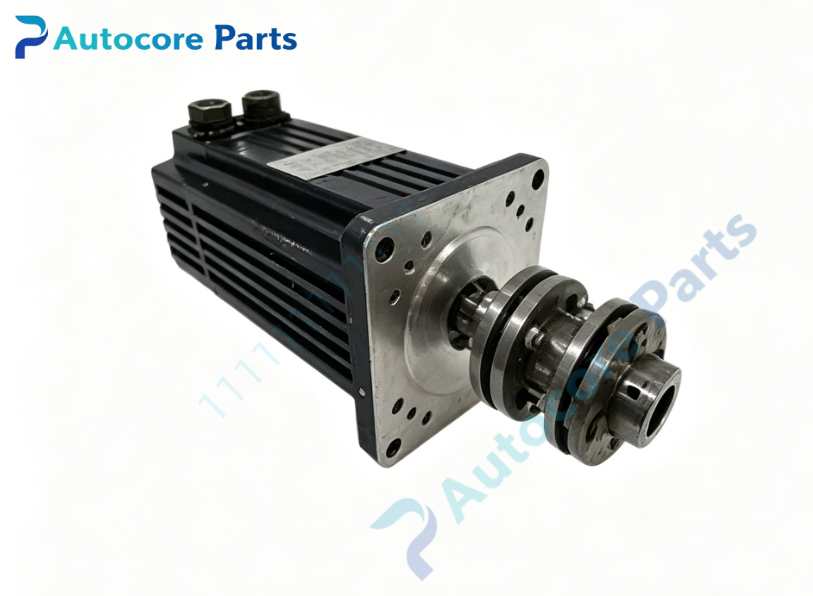

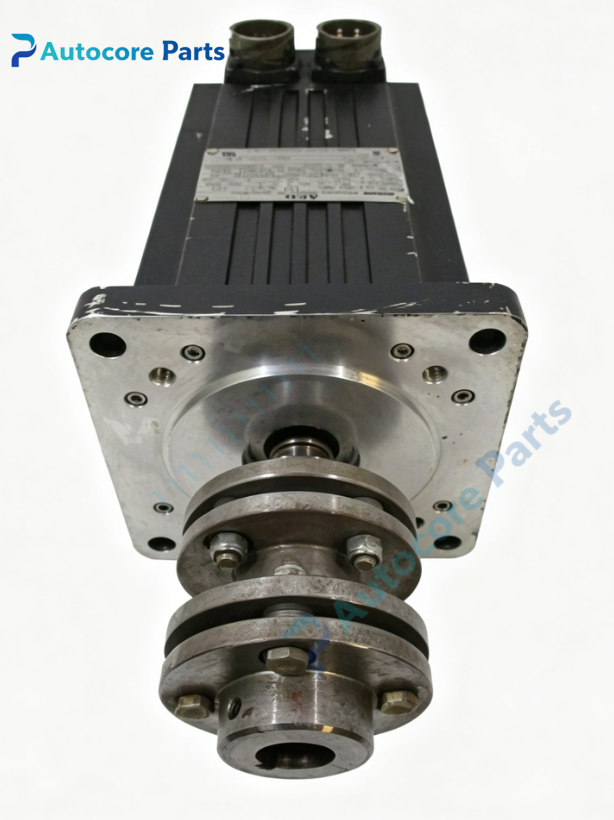

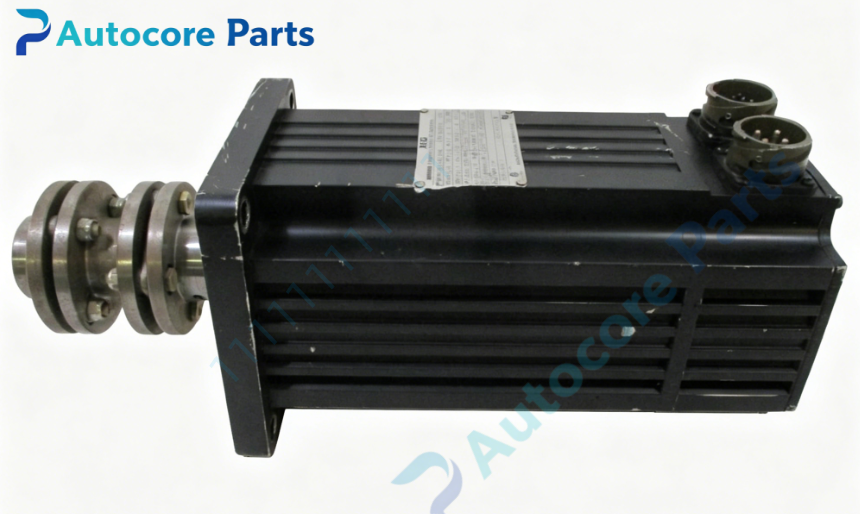

MODICON 1210880V5 Servo Motor

Technical SpecificationsModel:1210880V5 Brand:AEG MODICON Product Type:Low Inertia Precision Servo Motor Rated Voltage:220-240V AC Rated Speed:3000RPM Insulation Class:Class B Mounting:Flange mounting Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:4.2kg Dimension:220mm145mm120mm Protection:IP65

System compatibility1210880V5 belongs to AEG MODICON servo motor series. Compatible with MODICON motion controller and matching servo drive system. It can connect with encoder feedback cable and servo drive, matched with MODICON PLC for complete motion control solution. Suitable for packaging machinery, material handling, automated production line positioning control system replacement as industrial spare part.

Function1210880V5 is low inertia high precision servo motor. It receives speed and position commands from servo drive, converts electrical signal into mechanical rotation, realizes accurate positioning, speed regulation and torque control. Built-in encoder provides real-time position feedback for closed-loop control, equipped with over temperature and overload protection. Widely used for high-speed positioning motion control, serving as reliable motion spare part.

InstallationCut off power before installation. Fix the 1210880V5 servo motor on equipment flange. Connect power cable and encoder feedback cable to servo drive. Set motor parameters in drive, perform homing test and motion trial run before formal operation.

InterfaceMotor power terminal,encoder feedback port,thermal protection signal terminal for 1210880V5 AEG MODICON servo motor.

FeatureAEG MODICON 1210880V5 low inertia servo motor,fast response for frequent start-stop,high positioning accuracy,built-in thermal protection,flange mounting design,IP65 protection for workshop environment. This discontinued legacy industrial spare part used for old automation equipment motion system maintenance and replacement.

DiagnosticMotor no rotation: check power supply, cable wiring and servo drive enable signal for 1210880V5. Position deviation abnormal: inspect encoder cable, encoder damage and parameter setting. Motor overheating: check overload, ventilation condition and brake stuck fault. Vibration and noise: verify mechanical alignment, bearing wear and speed gain parameter. Overload alarm: check mechanical jamming and load overload condition.

Product Brief1210880V5 is AEG MODICON low inertia precision servo motor. It cooperates with MODICON motion control system to realize high-precision positioning, widely used for legacy automated machinery, classic spare part for old motion control equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
