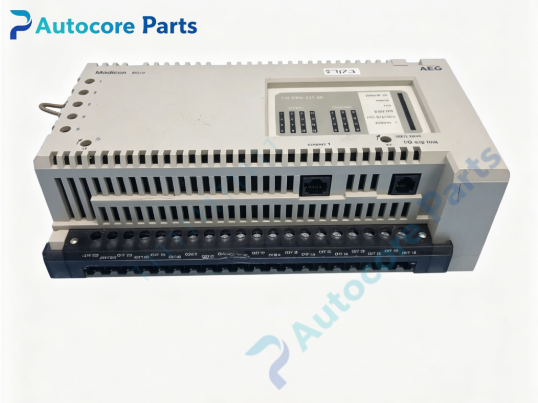

MODICON 110CPU31100 Micro PLC CPU

Technical SpecificationsModel:110CPU31100 Brand:MODICON(Schneider/AEG) Product Type:Micro Series Integrated PLC CPU Power Supply:Built-in 230VAC power I/O Configuration:Fixed onboard discrete I/O, relay output type Communication:Integrated Modbus serial interface Mounting:DIN rail mounting Operating temperature:0℃ ~ +60℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.4kg Dimension:180mm110mm75mm Protection:IP20

System compatibility110CPU31100 belongs to MODICON Micro series compact PLC. Compatible with Micro series extension modules. It can connect HMI, barcode reader and other Modbus devices. Suitable for packaging machinery,conveyor,small automation skid,textile equipment renovation and replacement as industrial spare part.

Function110CPU31100 integrated compact PLC controller. It integrates CPU,AC power supply and fixed digital I/O in one unit. It executes ladder logic program,cyclically scans onboard I/O signals and completes logic/arithmetic calculation. It supports Modbus serial communication for data exchange with HMI and upper system. Backup battery retains user program and data during power loss. Built-in hardware self-diagnosis,run status monitoring and fault alarm function. Widely used for small-scale standalone automation control, serving as reliable compact PLC spare part.

InstallationCut off main AC power before installation. Mount 110CPU31100 on DIN rail,lock the device. Connect 230VAC main power and field sensor/actuator wiring. Connect Modbus communication cable. Download PLC program,configure I/O address and communication parameters,complete function test before formal operation.

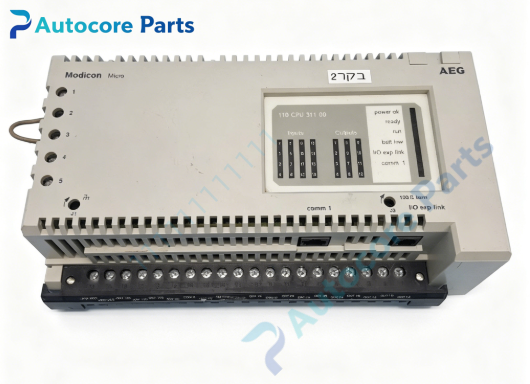

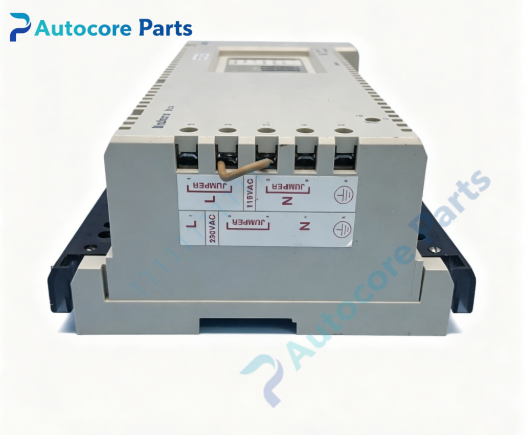

InterfaceAC power terminal block,field I/O terminal block,Modbus serial port,run/fault/battery status LED indicators for 110CPU31100 MODICON Micro PLC.

FeatureMODICON 110CPU31100 all-in-one Micro PLC,built-in AC power and fixed I/O,DIN rail installation,Modbus communication,battery memory backup,hardware diagnostic LED,compact cabinet saving design,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON Micro small automation system maintenance and replacement.

DiagnosticModule no power: check 230VAC input supply,fuse and wiring for 110CPU31100. PLC fault alarm: inspect program error,memory fault and low backup battery voltage. Modbus communication failure: check serial cable,baud rate and shielding grounding. Program lost after power off: verify backup battery aging and connector contact. Intermittent I/O failure: check field wiring oxidation and electromagnetic interference.

Product Brief110CPU31100 is MODICON Micro series integrated compact PLC CPU. It combines processor,AC power and fixed I/O for small automation control, supports Modbus serial communication,classic spare part for legacy MODICON industrial automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
