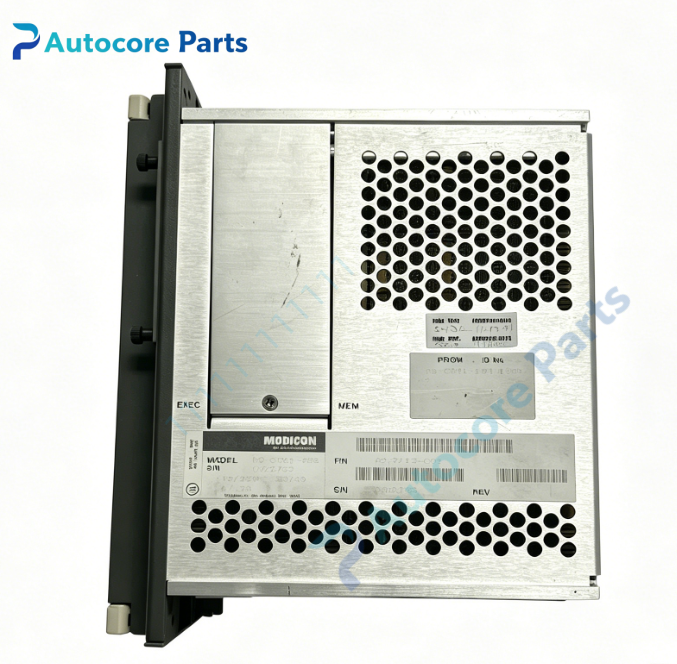

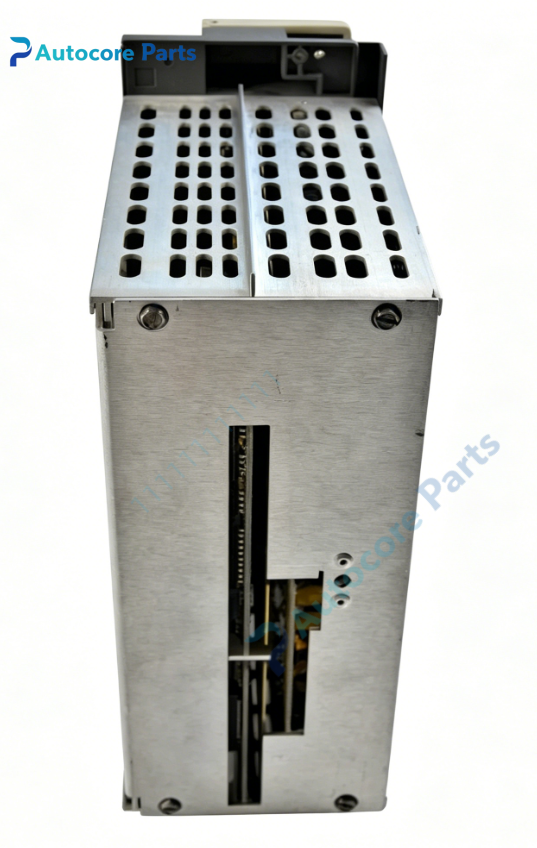

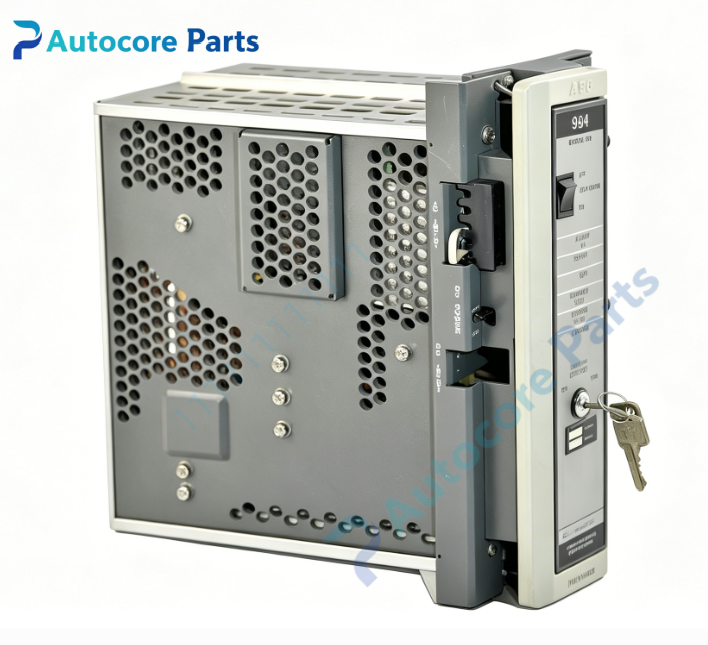

MODICON AS-9715-001 PLC CPU Module

Technical SpecificationsModel:AS-9715-001 Brand:MODICON Product Type:984 Series PLC CPU Processor Module Power Supply:115/220V AC,50/60Hz Mounting:Backplane rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:2.7kg Dimension:280mm140mm95mm Protection:IP20

System compatibilityAS-9715-001 belongs to MODICON 984 series PLC CPU module. Compatible with MODICON 984 series backplane, digital and analog I/O modules, communication modules. It supports connection with HMI, remote I/O and host monitoring system. Suitable for old industrial production line, water treatment, metallurgy equipment control system replacement as industrial spare part.

FunctionAS-9715-001 is programmable logic controller processor unit. It executes user control logic program, processes digital and analog input signals, outputs control commands to field actuators. It supports program storage, data register retention, fault diagnosis and communication data exchange. Widely used for industrial automated process control, serving as reliable core control spare part.

InstallationCut off rack power before installation. Insert the AS-9715-001 CPU module into MODICON backplane slot and lock the module. Connect power wiring and communication cables. Download control program and complete online test before formal operation.

InterfaceProgramming port, communication port, backplane bus connector, status LED indicators for AS-9715-001 MODICON CPU module.

FeatureMODICON AS-9715-001 984 series rack type CPU module,stable long-term continuous operation,built-in power-off data retention,rich communication function,IP20 cabinet protection. This discontinued legacy industrial spare part used for old PLC system maintenance and replacement.

DiagnosticModule no power: check rack power supply, fuse and backplane connection for AS-9715-001. CPU fault alarm: check program error, memory fault and module insertion status. I/O communication abnormal: inspect backplane bus, module slot contact and wiring. Program download fail: verify programming cable, communication port and software version of the MODICON controller. Runtime error: check logic program and field sensor signal.

Product BriefAS-9715-001 is MODICON 984 series PLC CPU processor module. This CPU widely applied in legacy factory automation systems, reliable logic processing capability, classic industrial control spare part for old equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
