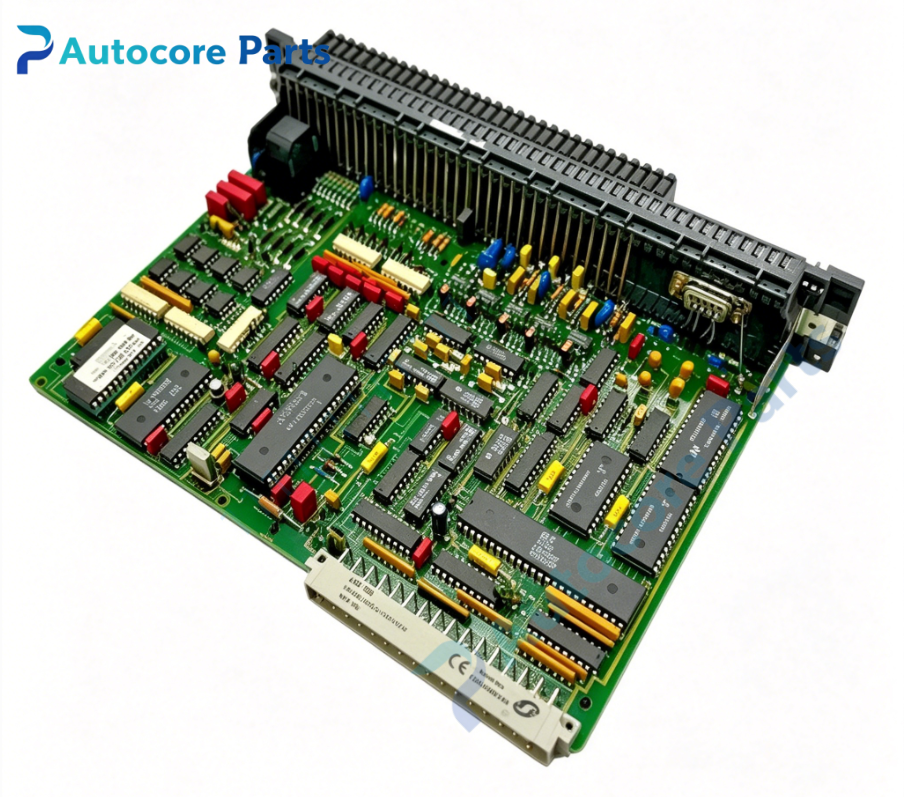

MODICON MM-FMC3-010 Motion Controller

Technical SpecificationsModel:MM-FMC3-010 Brand:MODICON Product Type:Multi-axis Servo Motion Control Module Power Supply:24V DC, 3.5A Mounting:Cabinet DIN rail mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:0.85kg Dimension:140mm90mm40mm Protection:IP20

System compatibilityMM-FMC3-010 belongs to MODICON motion control series module. Compatible with mainstream servo drives and stepping drives for automation machinery. It supports bus communication and pulse command output, can connect with MODICON PLC, HMI and host control system. Suitable for automatic assembly, handling, cutting equipment as industrial spare part.

FunctionMM-FMC3-010 is high performance multi-axis motion controller. It completes linear interpolation, circular interpolation, electronic cam, positioning and synchronous motion control. It supports program storage, motion parameter setting and real-time position monitoring, with overtravel and overload protection function. Widely used in automated production line, serving as reliable control spare part.

InstallationCut off power before installation. Mount the MM-FMC3-010 module on DIN rail inside electrical cabinet. Connect 24V DC power cable, servo signal wiring and communication cable. Complete parameter configuration and motion test before formal operation.

InterfaceDigital input terminals,digital output terminals,servo pulse/direction port,bus communication port,HMI communication port for MM-FMC3-010 MODICON motion controller.

FeatureMODICON MM-FMC3-010 multi-axis motion control module,compact DIN rail design,high-speed motion response,rich motion instructions,real-time position monitoring,IP20 cabinet protection. This industrial spare part used for automation equipment motion system maintenance and replacement.

DiagnosticModule no power: check 24V DC power supply, fuse and wiring for MM-FMC3-010. Axis cannot move: check enable signal,pulse wiring and servo drive status. Position deviation: verify servo parameter,electronic gear ratio and mechanical backlash. Communication abnormal: check communication cable,station address and baud rate configuration of the MODICON controller. Fault alarm: read fault code via supporting configuration software.

Product BriefMM-FMC3-010 is MODICON multi-axis industrial servo motion control module. This controller widely used in automatic assembly and processing machinery,rich motion control functions,stable operation,popular industrial spare part for automation equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
