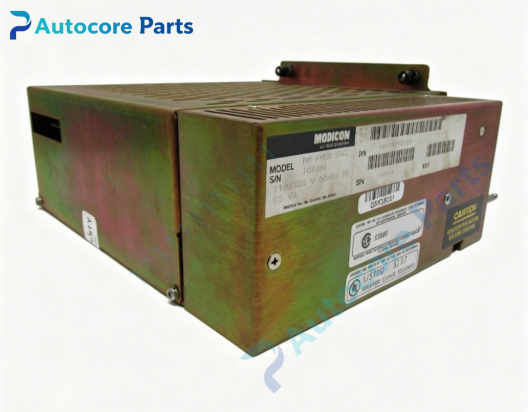

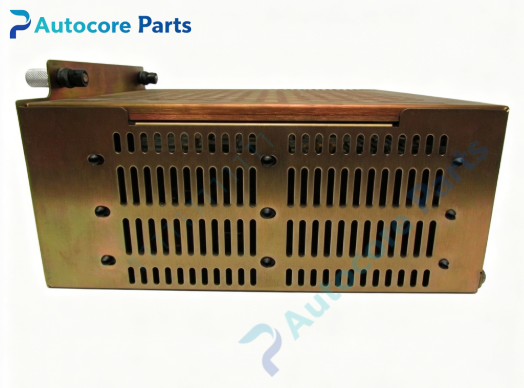

MODICON MM-PMC1-200 92-00595-03 HMI Mainboard

Technical Specifications

Model: MM-PMC1-200 92-00595-03 Brand: MODICON(AEG/Schneider) Product Type: PanelMate+4000 CRT HMI Main Control Board Display: Matches 14 inch CRT display assembly Project storage: 10 screen pages Communication: Modbus serial interface Mounting: Installed inside PanelMate CRT operator panel enclosure Operating temperature: 0℃ ~ +50℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Weight: 0.45kg Dimension: 225mm165mm22mm Protection: IP20 (when assembled in panel housing)

System compatibility

MM-PMC1-200 92-00595-03 belongs to MODICON PanelMate+4000 series HMI mainboard. Compatible with PanelMate CRT display assembly, supports communication with MODICON 984 PLC series. Suitable for repair and replacement of old CRT operator panels in chemical plants, water treatment plants, power plants as industrial spare part.

Function

MM-PMC1-200 92-00595-03 HMI main control circuit board. It is the core mainboard of PanelMate+4000 CRT operator panel. It processes touch/key operation signals, stores HMI screen project, realizes Modbus serial data exchange with PLC, reads real-time process variables and alarm information, and outputs to CRT display. Onboard backup battery retains screen project and runtime data after power loss. Built-in watchdog and hardware self-diagnosis function. Widely used for human-machine interaction in legacy MODICON process control system, serving as reliable HMI core spare part.

Installation

Cut off HMI power before installation. Open PanelMate panel housing, disconnect original board connectors. Install MM-PMC1-200 92-00595-03 mainboard, fix mounting screws and reconnect CRT display, touch/keyboard and Modbus communication cable. Download HMI project, verify display, touch input and PLC communication function before formal operation.

Interface

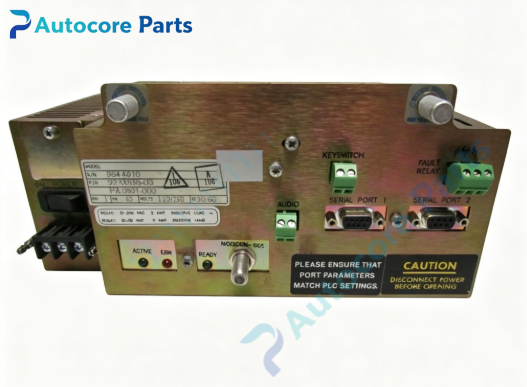

CRT display connector, touch/keyboard connector, Modbus serial port, power terminal, run/fault status LED indicators for MM-PMC1-200 92-00595-03 MODICON HMI mainboard.

Feature

MODICON MM-PMC1-200 PanelMate+4000 mainboard, onboard project memory, Modbus serial communication, CRT display driving, battery backup for project retention, hardware watchdog, self-diagnosis, industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON PanelMate CRT operator panel hardware maintenance and replacement.

Diagnostic

Panel no CRT display: check board power supply, backlight cable and mainboard hardware for MM-PMC1-200 92-00595-03. Touch/key no response: inspect touch/keyboard wiring and signal processing circuit. Project lost after power off: check onboard backup battery voltage and connector contact. PLC Modbus communication failure: verify serial cable, baud rate, parity and shielding grounding. Intermittent screen crash: check loose connectors and component aging.

Product Brief

MM-PMC1-200 92-00595-03 is AEG MODICON PanelMate+4000 series CRT HMI main control board. It is the core circuit board for 14-inch PanelMate operator panel, responsible for CRT display, touch input and Modbus data exchange with Modicon PLC, classic spare part for legacy MODICON industrial automation equipment overhaul.

Disclaimer:

All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
