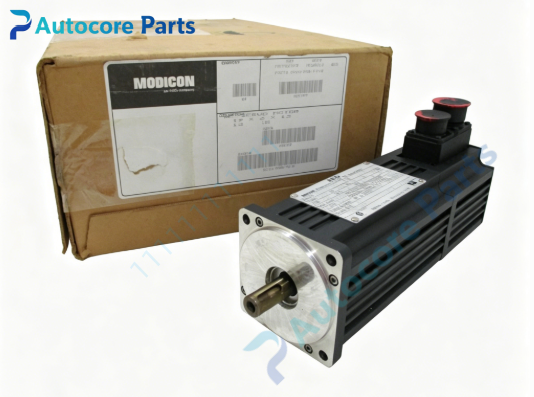

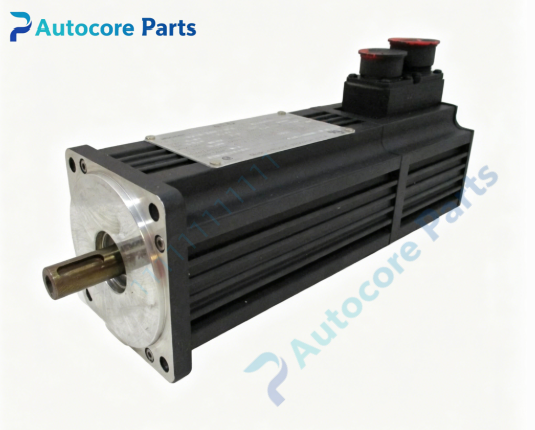

MODICON S31N-R00-F010 AC Servo Motor

Technical SpecificationsModel:S31N-R00-F010 Brand:MODICON Product Type:S31 Series AC Servo Motor Feedback:Incremental encoder Structure:Low inertia rotor Mounting:Flange mounting Operating temperature:0℃ ~ +40℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Protection:IP65

System compatibilityS31N-R00-F010 belongs to MODICON S31 series servo motor. Matches MODICON S series servo drive and 984 PLC motion modules. Used for positioning control of packaging, textile and assembly equipment. Suitable for legacy motion control system renovation and replacement as industrial spare part.

FunctionS31N-R00-F010 AC servo motor. It receives drive pulse/analog command to realize precise speed and position control. Built-in incremental encoder feeds real-time rotor position back to servo drive for closed-loop positioning. It delivers stable torque in dynamic start-stop applications. Widely used for linear/rotary axis positioning in legacy industrial automation equipment, serving as reliable motion spare part.

InstallationCut off power before installation. Fix S31N-R00-F010 by flange, couple with mechanical load. Connect power cable and encoder shielded cable to servo drive. Set motor parameters, complete jog test and position loop tuning before formal operation.

InterfaceMotor power connector, encoder feedback connector, status marking for S31N-R00-F010 MODICON servo motor.

FeatureMODICON S31N-R00-F010 low inertia servo motor, incremental encoder closed loop, fast dynamic response, IP65 protection, industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON motion control system axis drive maintenance and replacement.

DiagnosticMotor no rotation: check servo enable command, power supply and wiring for S31N-R00-F010. Position deviation: inspect encoder cable, coupling looseness and servo parameter setting. Motor overheating: verify load, ventilation and overload operation. Vibration & noise: check mechanical alignment and gain parameter. Intermittent position jump: check shielding grounding and connector loose.

Product BriefS31N-R00-F010 is MODICON S31 series low inertia AC servo motor. It works with MODICON servo drive to realize closed-loop position and speed control for automation motion axis, classic spare part for legacy MODICON motion equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
