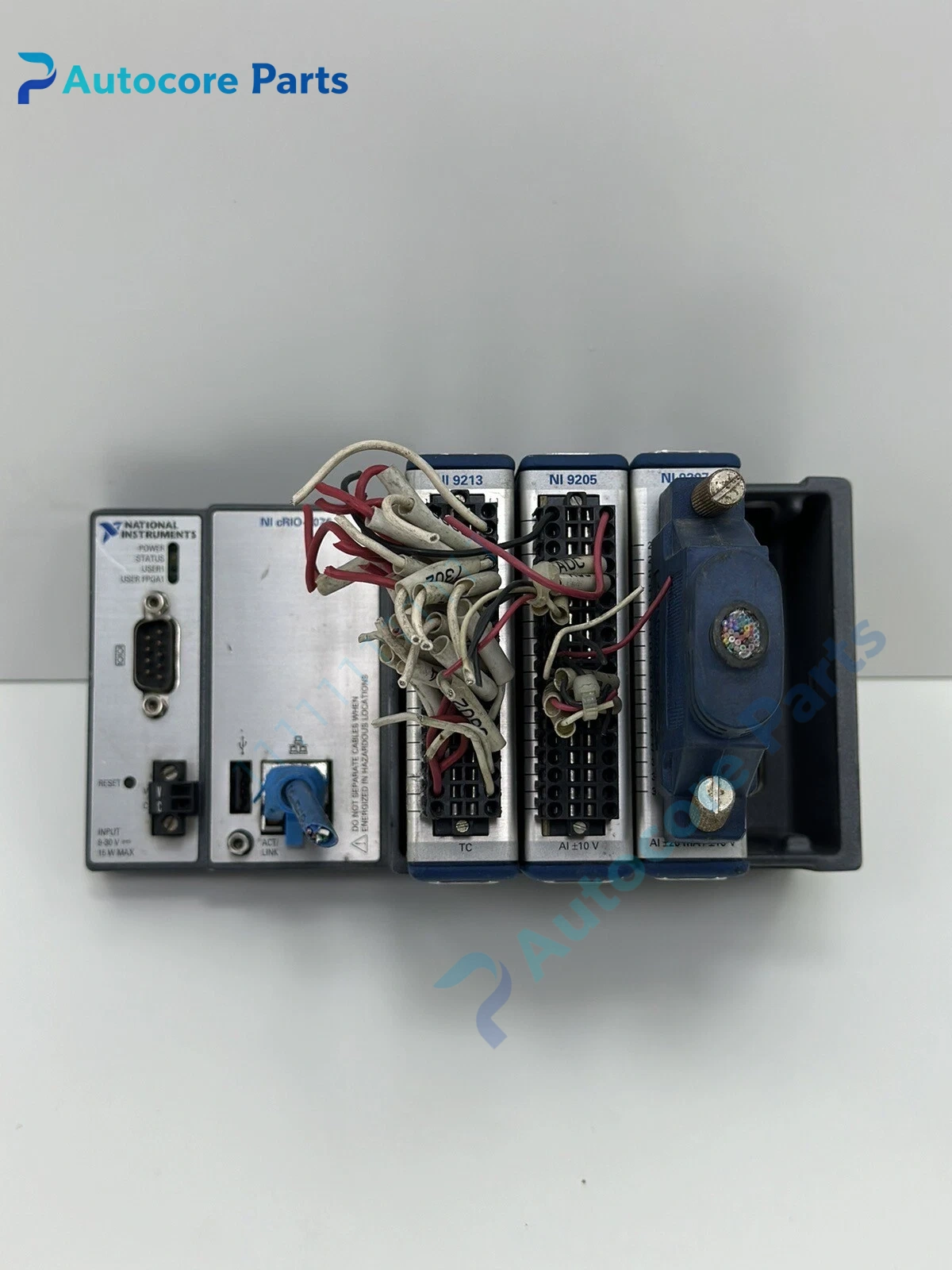

NI-9205 C Series 32-Channel 16Bit Analog Input Module Unit

Feature & Principle

This multiplexed analog input module uses programmable gain amplifier and 16-bit ADC. It supports multiple input voltage ranges, with overvoltage protection and channel-to-earth isolation. It collects sensor voltage signals and transmits data to chassis controller via C series bus, matched with NI-DAQmx and LabVIEW for test, monitoring and data logging.

Specifications

Model: NI-9205 Brand: NI (National Instruments) Type: C series analog input Channels: 32 single-ended / 16 differential Resolution: 16 bit Aggregate sampling rate: 250 kS/s Voltage ranges: ±200mV, ±1V, ±5V, ±10V Connector: Spring terminal or 37pin D-SUB Compatibility: CompactDAQ, CompactRIO Certification: CE, UL

Components & Diagnostics

Front-end multiplexer, programmable gain amplifier, ADC chip, isolation circuit, C-series bus interface and terminal assembly. Common faults: channel reading abnormal, signal jump, bus communication failure, overvoltage damage and grounding noise interference.

Product Brief

NI-9205 acquisition module, NI test measurement spare widely used for laboratory test, industrial signal sampling, sensor calibration and automated data acquisition system.
