OPTIMATION INC OL0001 Blank Filler Card

Module Feature

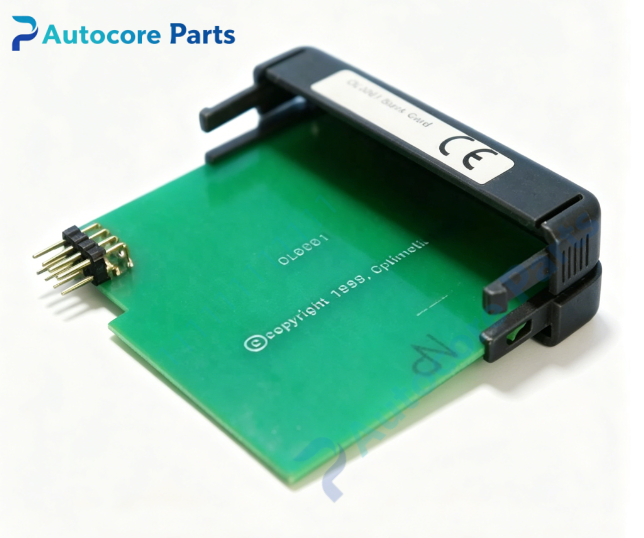

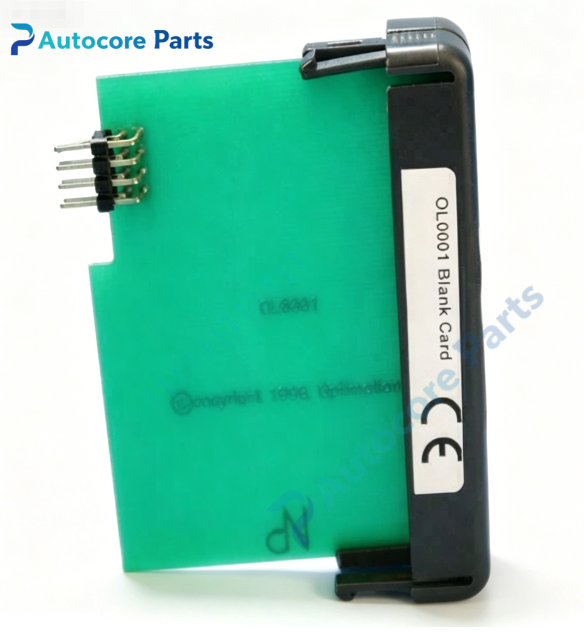

OPTIMATION INC OL0001 is OptiLogic series blank filler card. It is designed to occupy unused empty slots inside OptiLogic RTU racks including OL4054, OL4058 and OL4228. Installing blank filler card can keep internal airflow of rack, reduce electromagnetic interference, maintain EMC shielding performance and prevent foreign dust or metal debris falling into backplane connectors. Same mechanical dimension and snap lock structure as standard OptiLogic I/O modules. Widely used in semiconductor wet bench and chemical fluid delivery control cabinet I/O rack assembly.

Working principle: OL0001 fills vacant card slot mechanically. It seals the empty opening of rack card cage, maintains proper air circulation path inside chassis and protects backplane edge connectors from contamination. No electrical circuit on this filler card. Onboard components: Plastic/metal blank panel, locking latch mechanism, no electronic circuit components

LED indicatorsNo LED indicators, passive filler card

Hardware self-diagnosis

Visual inspection, mechanical fit test, locking latch check

Programming softwareNo configuration software required, passive mechanical filler card

Electrical & Process ParametersNo electrical circuit, purely mechanical component

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION INC OptiLogic blank filler card

System compatibility

Compatible with OL4054, OL4058, OL4228 OptiLogic RTU chassis.

Function

OL0001 blank filler card manufactured by OPTIMATION INC. It fills empty rack slots for airflow and EMC shielding. Missing blank card may cause poor heat dissipation or increased electromagnetic noise. It is mechanical accessory component for wet bench automation OptiLogic I/O rack.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert OL0001 blank card into unused slot and lock the latches, ensure card fully seated.

InterfaceNo electrical interface, only mechanical locking structure matching OptiLogic rack slot.

Diagnostic

Cannot lock into slot:Deformed card latch or slot guide rail damage. Falling out of slot:Latch not fully engaged.

Product Brief

OL0001 OPTIMATION INC OptiLogic blank filler card,mechanical slot cover for unused rack slots,maintain airflow and EMC shielding,for semiconductor wet bench and chemical delivery OptiLogic I/O rack assembly.
