OPTIMATION OL2111A Relay Output Module

Module Feature

OPTIMATION OL2111A belongs to OptiLogic series 8-channel mechanical relay output module. Each channel adopts independent isolated dry contact relay, capable of switching both AC and DC loads. Each relay supports resistive load, per-channel front panel LED status indicator, equipped with removable screw terminal block. Standard OptiLogic form factor, hot-plug compatible with OL4054, OL4058, OL4228 RTU racks. OL2111A is the conformal coated rugged version for chemical vapor and high humidity cabinet environment. Widely used to control solenoid valves, small pumps, alarm horns and auxiliary contact signals in semiconductor wet bench and chemical delivery control systems.

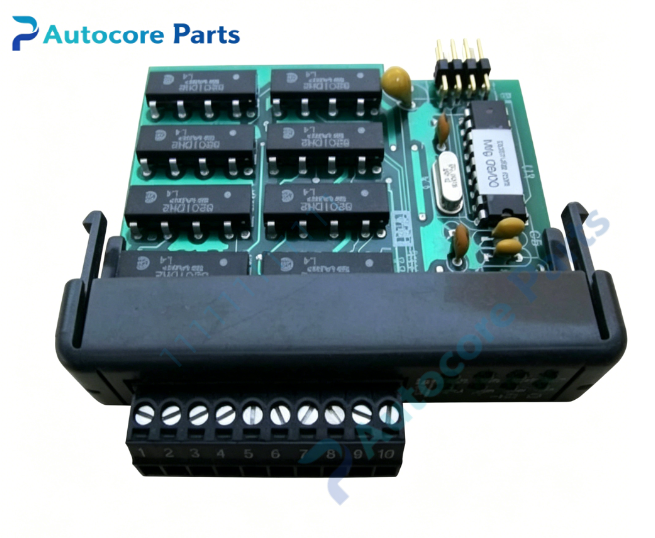

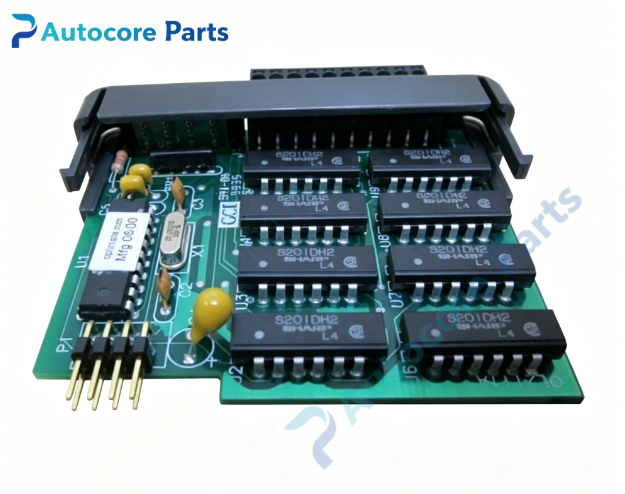

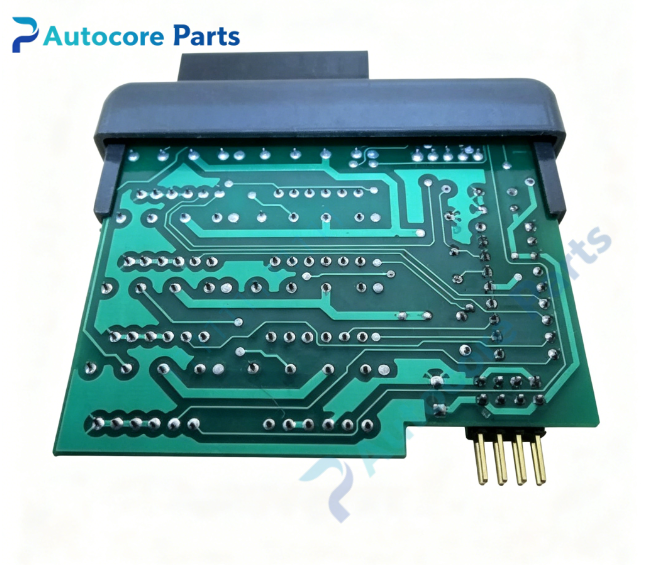

Working principle: RTU backplane transmits on/off control signal to drive internal relay coil. Mechanical relay contact closes or opens to switch field side AC/DC load. Galvanic isolation separates field power circuit and control backplane bus to protect RTU mainboard. Conformal coating on OL2111A PCB prevents corrosion from wet bench corrosive atmosphere. Onboard components:8 mechanical relay units, relay drive PCB with conformal coating, removable terminal block, backplane edge connector, front panel per-channel LED indicators

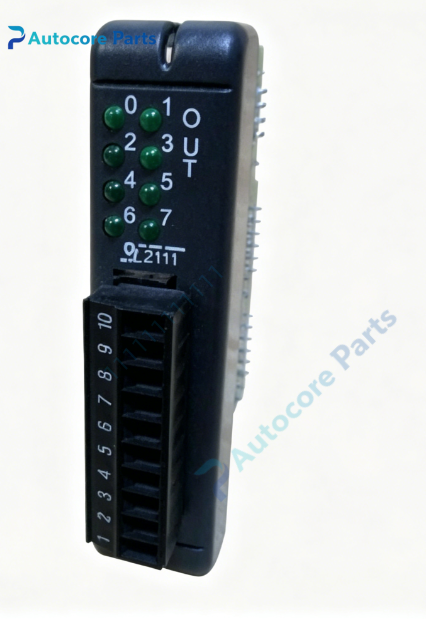

LED indicatorsIndividual channel output status LED indicators on module front panel

Hardware self-diagnosis

Visual inspection, relay on-off action test, contact continuity check, backplane slot identification verification

Programming software

OPTIMATION OL System Builder software for output tag mapping, fail-safe state configuration, relay action logic setup

Electrical & Process Parameters

Power supply:Power supplied from rack backplane Output type:Isolated mechanical dry contact relay Per channel rating:2A resistive load Switchable voltage:up to 250VAC / 30VDC Channel quantity:8 isolated relay points Version feature:OL2111A rugged version with PCB conformal coating Terminal:Removable pluggable screw terminal block

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ (OL2111A improved chemical vapor resistance) Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic 8-point relay output I/O module

System compatibility

Compatible with OL4054, OL4058, OL4228 OptiLogic RTU chassis; works with OPTIMATION OP / OM series operator panels and Modbus host PLC.

Function

OL2111A relay output module manufactured by OPTIMATION. It switches AC or DC field loads via mechanical relay contacts. Relay contact burnout may occur with inductive loads without surge suppression. It is universal discrete output component for wet process automation control rack.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert module into empty rack slot and lock latches. Wire field loads to removable terminal block, add surge suppressor for inductive loads. Test all 8 relay channels before production startup.

InterfaceField load removable terminal block, OptiLogic backplane edge connector, per-channel relay status LED indicators on housing of OL2111A.

Diagnostic

No relay actuation:No control signal or failed relay coil. Contact cannot cut off:Relay contact welded by overload current. Intermittent output:Loose terminal screw connection. Module not detected:Poor backplane edge connector contact.

Product Brief

OL2111A OPTIMATION OptiLogic 8-channel isolated mechanical relay output module,dry contact for AC/DC load switching,PCB conformal coated rugged version,for semiconductor wet bench chemical delivery solenoid valve and pump discrete control.
