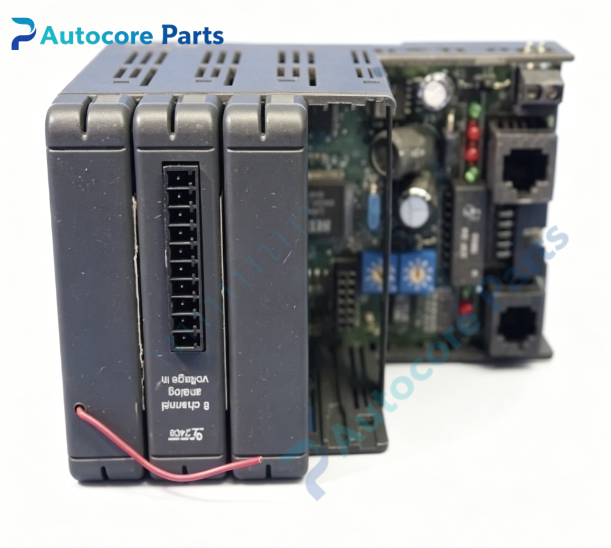

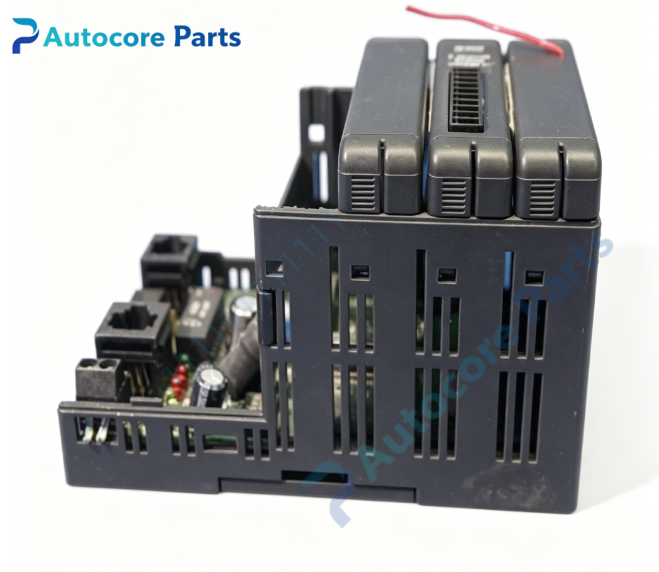

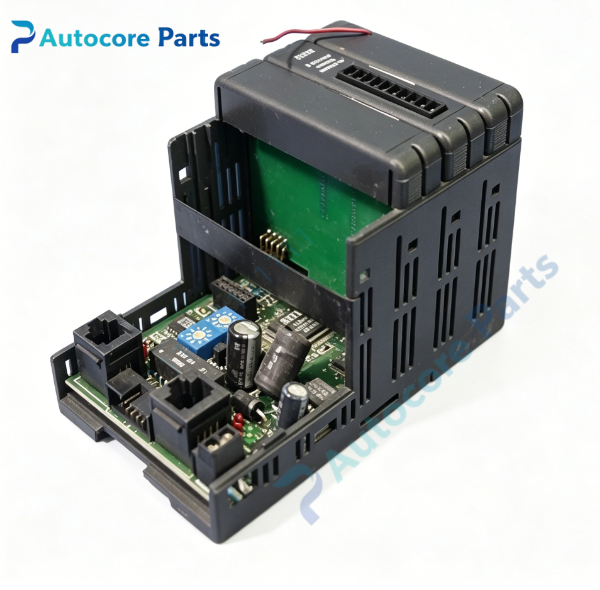

OPTIMATION OL4054 4 Slot RTU Assembly with OL2408

Module Feature

OPTIMATION OL4054 is OptiLogic 4-slot modular Remote Terminal Unit base chassis. This assembly is fitted with OL2408 analog input module. OL4054 supports hot-plug OptiLogic I/O cards, equipped with 10BaseT Ethernet supporting OptiLogic/UDP and IPX protocols, plus RS232 serial port for local configuration or HMI connection. Backplane provides 2.8A@5V power supply for all installed I/O modules. OL2408 is 8-channel analog input module,designed to collect analog signals such as pressure,flow,temperature from field transmitters. Removable screw terminal block,opto-isolated signal circuit. The remaining empty slots can be fitted with other OptiLogic I/O modules or OL0001 blank filler cards. Widely used for semiconductor wet bench and chemical delivery control cabinet analog and discrete signal acquisition.

Working principle: OL4054 rack backplane provides power and parallel bus communication. OL2408 collects analog field signals and transmits data to RTU mainboard. RTU uploads all I/O data to host PLC via Ethernet, and receives control commands to drive output modules. RS232 port supports local parameter setting and connection to OptiMate HMI panels.

Onboard components: Metal DIN rail housing,OL4054 main motherboard PCB,10BaseT Ethernet transceiver,RS232 serial interface,OL2408 analog input module,DC power terminal block,backplane edge connectors,front panel status LEDs

LED indicatorsPower, Ethernet link, RS232 TX/RX, rack fault LED indicators on front panel; per-channel signal LEDs on OL2408.

Hardware self-diagnosis

Visual inspection, module seating check, backplane continuity test, Ethernet link test, analog signal sampling verification.

Programming software

OPTIMATION OL System Builder software for network address setup,I/O module mapping,analog channel scaling and fault log reading.

Electrical & Process Parameters

Power supply:8 ~ 30VDC Backplane power:2.8A @5V for I/O modules Ethernet:10BaseT 10Mbps, OptiLogic/UDP, IPX Serial port:RS232 Rack slot:4 slots (1 occupied by OL2408,3 spare slots) OL2408:8 channel analog input

Mechanical & Structure

Mounting:DIN rail cabinet mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic 4-slot RTU assembly with OL2408 analog input module

System compatibility

Compatible with full range of OptiLogic I/O modules and OL0001 blank filler card; works with OP / OM series OptiMate operator panels and mainstream PLC.

Function

OL4054 RTU with OL2408 analog input card manufactured by OPTIMATION. It collects analog process signals from field sensors. Poor backplane contact or wrong IP configuration will lead to module offline and communication interruption. It is pre-assembled compact I/O rack for wet bench automation analog signal monitoring.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Confirm OL2408 fully locked in slot, install OL0001 blank filler for unused slots. Wire 8~30VDC power and Ethernet cable. Configure network and analog channel parameters, test all channels before commissioning.

InterfaceDC power terminal block,10BaseT RJ45 Ethernet,RS232 serial port,OL2408 analog signal terminal block,status LED indicators.

Diagnostic

No Ethernet communication:IP mismatch,cable damage or network fault. OL2408 no reading:Poor module seating or field sensor wiring error. Intermittent analog drift:Ground loop interference or missing signal isolation. Rack power alarm:Overload or loose DC wiring.

Product Brief

OL4054 OPTIMATION OptiLogic 4-slot RTU remote terminal unit pre-assembled with OL2408 8-channel analog input module,10BaseT Ethernet & RS232,DIN rail mount,for semiconductor wet bench and chemical delivery analog process signal monitoring.
