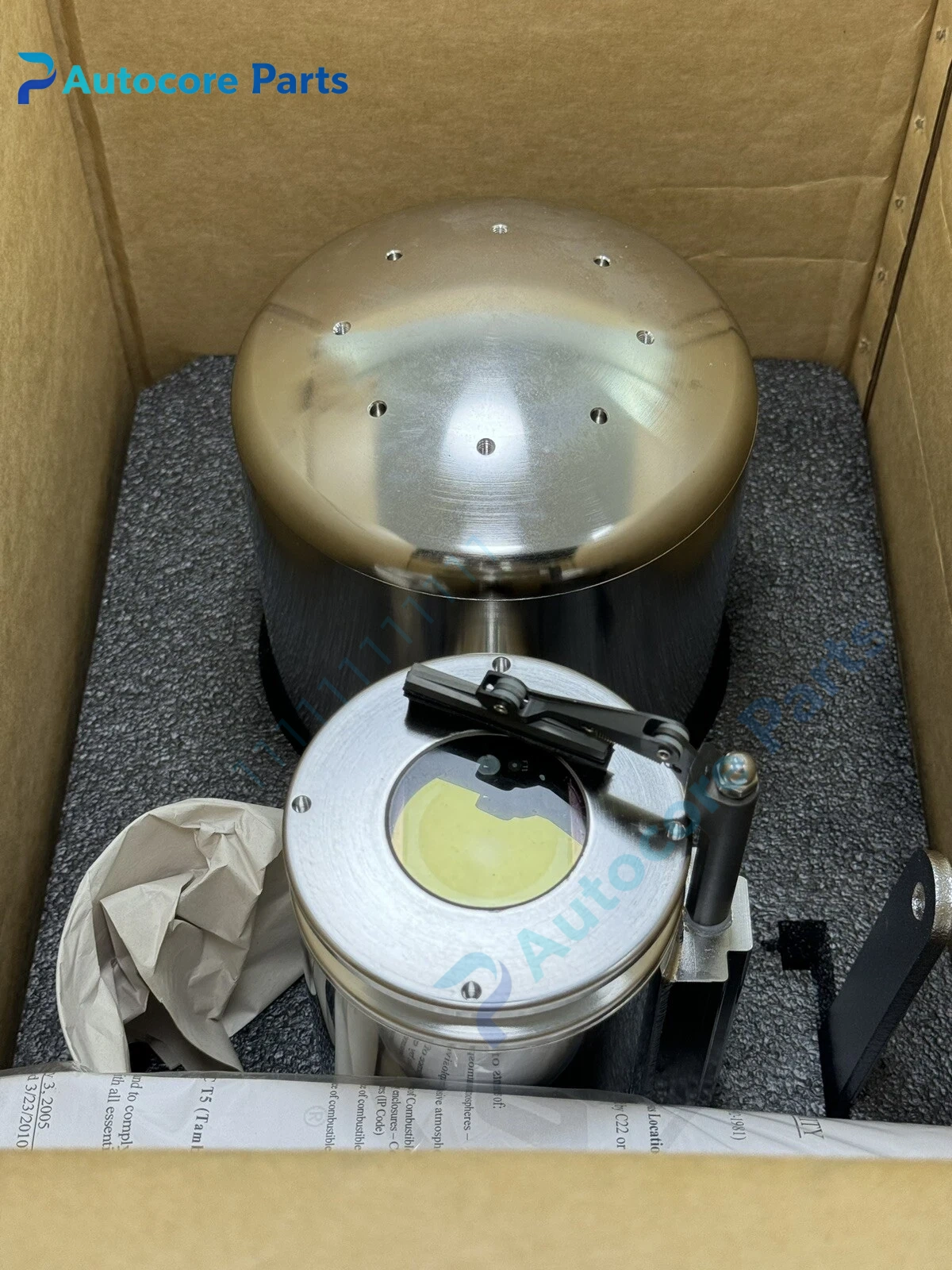

Pelco IPSXME136-7X Explosion Proof PTZ Camera Unit

Module Feature

IPSXME136-7X belongs to Pelco ExSite IP explosion-proof integrated PTZ positioning system. The whole unit adopts electropolished 316L stainless steel enclosure, suitable for Class I Division 1 explosive hazardous locations. It integrates 36x optical zoom day/night camera module, auto iris lens and removable IR cut filter, supporting color and monochrome mode switching. Built-in windshield wiper cleans the front window for outdoor marine and heavy dust environments. Dual video streams are supported, compression formats include H.264, MPEG-4 and MJPEG. It has motion detection, privacy masking and multi-protocol network control functions. It can be installed upright or inverted. Widely deployed on refineries, gas plants, offshore platforms and chemical process areas.

Working principle

Image sensor captures scene light signal, and the built-in DSP processes video and encodes it into network stream for transmission via Ethernet port. PTZ driver receives commands from VMS to realize pan, tilt and zoom movement. Wiper control circuit triggers wiper action by remote command. All electronic components are sealed inside explosion-proof housing to prevent internal ignition from spreading to external flammable gas atmosphere.

Onboard components

316L stainless steel explosion-proof housing, 36x optical zoom day-night camera core, PTZ servo drive assembly, built-in wiper mechanism, network video encoding board, 100Base-TX Ethernet interface, terminal junction compartment.

LED indicators

Internal PCB LED for power and network activity; no external visible indicator on explosion-proof housing.

Hardware self‑diagnosis

Self-check covers network link loss, PTZ drive overcurrent, wiper motor fault, camera signal loss and internal over-temperature. Fault messages are uploaded to video management system.

Programming software

Pelco DX, Endura or third-party ONVIF VMS software for live view, PTZ control, recording and parameter setup.

Electrical & Process Parameters

Model:IPSXME136-7X Brand:Pelco (Schneider Electric) Device type:Explosion Proof PTZ IP Camera Zoom:36x optical zoom Image:Day/night, IR cut filter Communication:100Base-TX Ethernet, ONVIF Power supply:100~240V AC Housing material:316L stainless steel Function:Video surveillance and remote PTZ monitoring in explosive hazardous zones

Mechanical & Structure

Mounting:Wall bracket mount Protection class:Explosion proof certified Housing:Electropolished 316L stainless steel

Environmental

Operating temperature:-60℃ ~ +60℃ Storage temperature:-60℃ ~ +65℃ Ambient humidity:5~95% non‑condensing Certification:UL, ATEX, IECEx, CE compliant Status:Pelco original ExSite hazardous area camera spare

Installation

Install matched explosion-proof wall bracket. Route cable through certified explosion-proof cable gland. Wire AC power and Ethernet cable into junction compartment. Set network IP, stream profile and PTZ preset via VMS. Test wiper function and verify explosion seal integrity after maintenance.

Interface

Explosion-proof cable gland ports, internal terminal block for power and network.

Diagnostic

No video stream: Power loss, Ethernet cable fault or encoder module failure. PTZ no movement: Drive overload, limit trigger or command protocol mismatch. Image blurry: Window dirty, wiper failure or lens contamination. Night mode abnormal: IR cut filter stuck.

Product BriefPelco IPSXME136-7X ExSite explosion-proof PTZ IP camera, 36x zoom day-night, wiper equipped, 316L stainless steel, 100-240V AC, for oil, gas and chemical hazardous area video monitoring.
