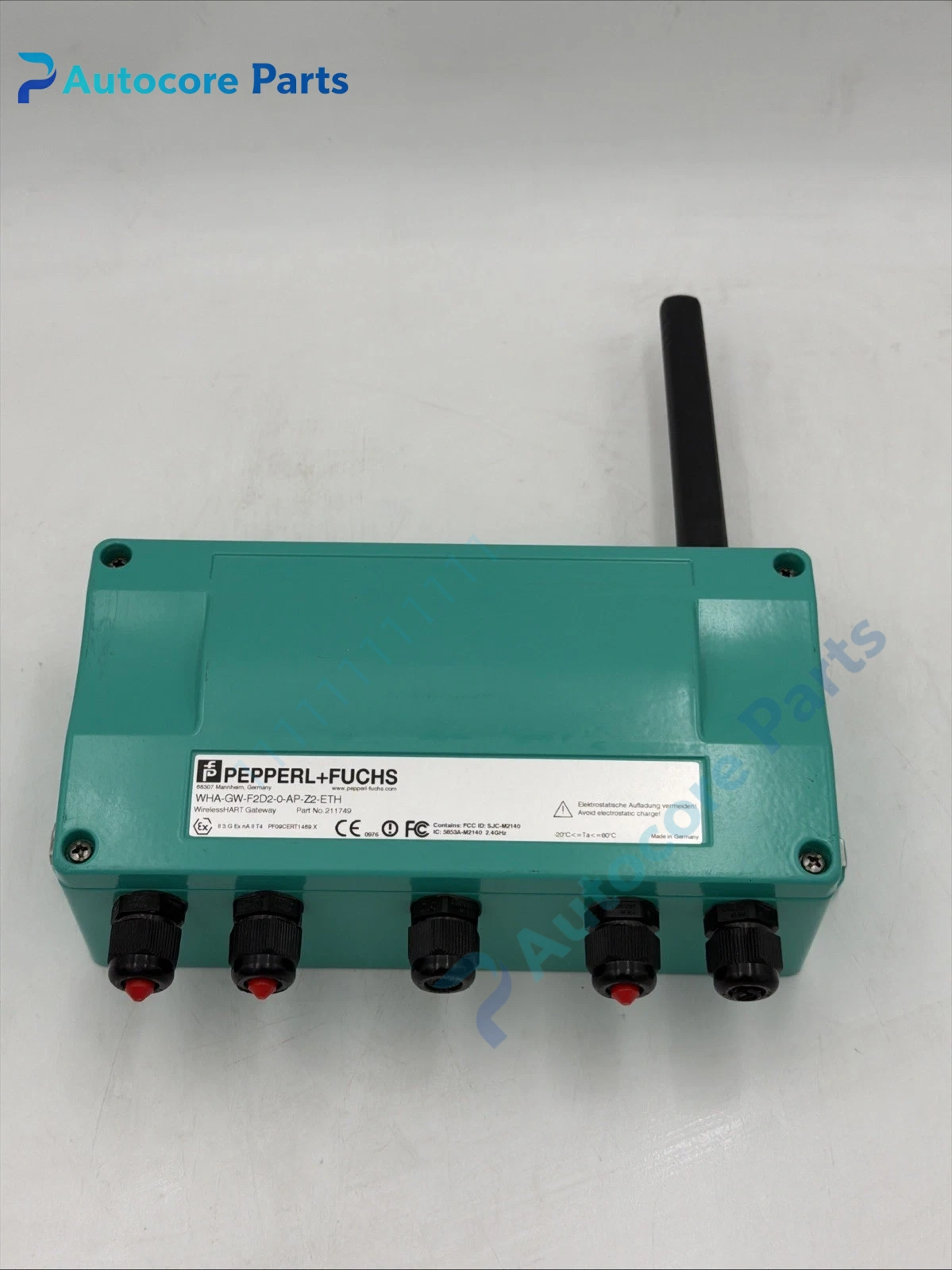

Pepperl+Fuchs WHA-GW-F2D2-0-ETH WirelessHART Communication Gateway Unit

Feature & Principle

It serves as the bridge between WirelessHART mesh field network and host control system, supports self-healing wireless network, collects instrument data and converts to Modbus protocol for upper system.

Specifications

Model: WHA-GW-F2D2-0-AP-Z2-ETH Brand: Pepperl+Fuchs Power: 24V DC Max Nodes: 250 Interfaces: Ethernet 10/100M, RS485 Protocol: WirelessHART, Modbus TCP/RTU Gland: Plastic cable gland Certification: CE

Components & Diagnostics

Wireless antenna, Ethernet port, RS485 terminal, status indicator and redundant power terminal. Common faults: antenna loose causing weak signal, network offline, power supply failure.

Product Brief

WHA-GW-F2D2-0-AP-Z2-ETH gateway, Pepperl+Fuchs WirelessHART communication spare part for industrial process monitoring system.
