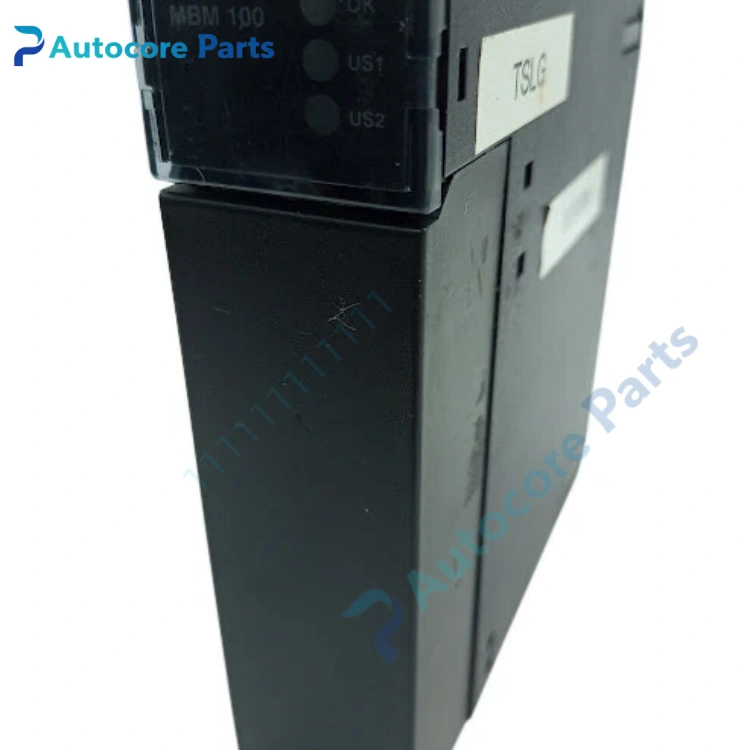

ProSoft CF693MBM100 Modbus Module

Feature & Principle

It is a ProSoft Technology third-party communication module for GE Fanuc Series 90-30 PLC. It plugs directly into the 90-30 backplane and communicates with the PLC CPU via the rack bus. It handles Modbus RTU protocol stack independently, acting as Modbus master to read field VFDs, meters and sensors, or as Modbus slave for host SCADA system access. Onboard status LEDs indicate power, communication and fault conditions. It reduces CPU communication burden and is widely used for retrofitting legacy 90-30 control systems.

Specifications

Model: CF693MBM100 Brand: ProSoft Technology Compatible system: GE Fanuc Series 90-30 PLC Protocol: Modbus RTU (Master / Slave configurable) Interface: RS485 Backplane: 90-30 single slot Power supply: 5VDC from rack backplane Operating temperature: 0℃ ~ 60℃ Lifecycle: Discontinued legacy spare Application: Water treatment, power plant, factory automation retrofit Certification: CE, UL

Components & Diagnostics

Main control PCB, RS485 transceiver circuit, protocol processor, status LED indicators, gold-plated backplane connector. Common faults: communication timeout, module not recognized by CPU, no TX/RX activity, unstable bus signal.

Product Brief

CF693MBM100 Modbus communication module, ProSoft third-party spare for GE 90-30 PLC widely used for old automation cabinet overhaul and replacement.
