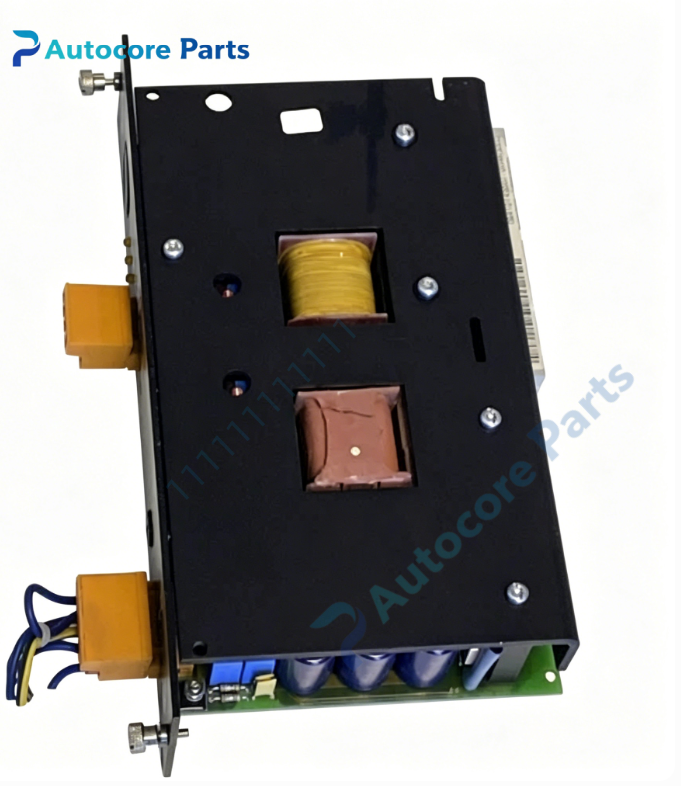

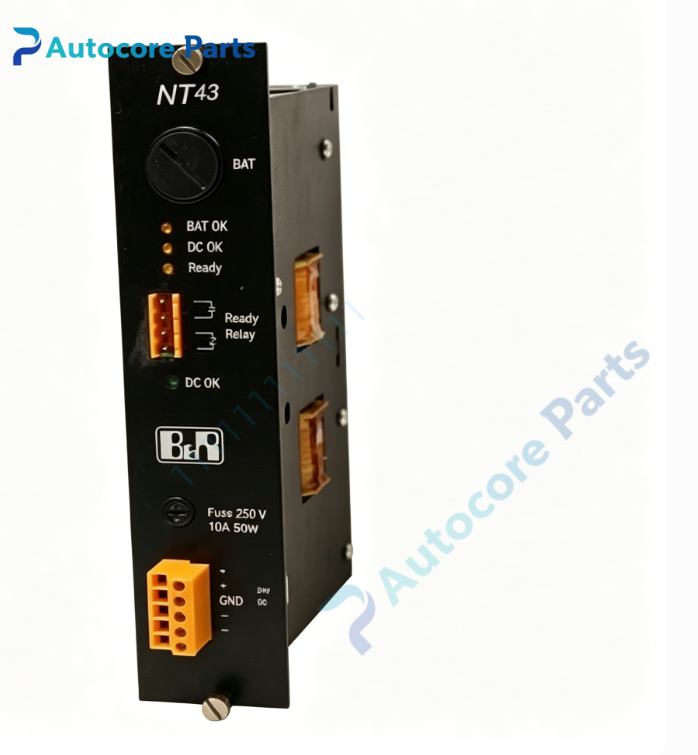

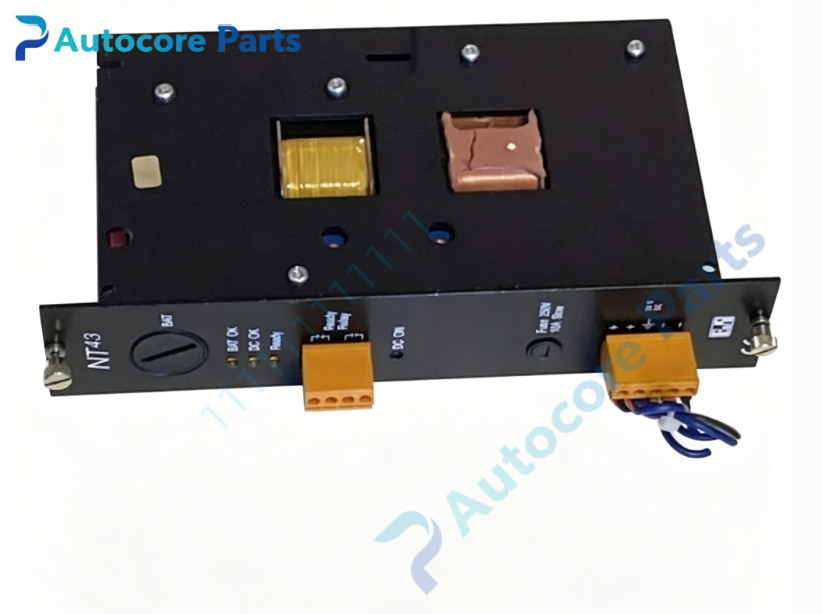

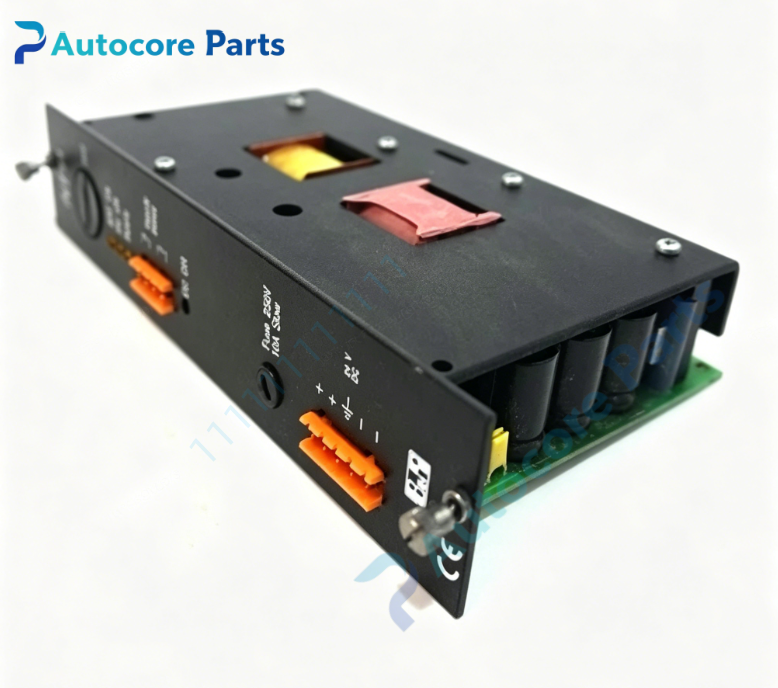

B&R ECNT43‑0 Power Supply Module

Technical Specifications

Model:ECNT43‑0

Brand:B&R

Product Type:MULTI‑CONTROL rack series rack‑mount power supply module

Applicable System:B&R Midi‑Multi‑Control rack system,applied for early‑generation packaging machinery,process automation equipment to provide stable backplane bus power for rack CPU and I/O modules

Input Voltage:100‑240VAC universal input

Output:24VDC,4.16A,100W rated power

Efficiency:＞90%

Protection:overload protection,short‑circuit protection,overtemperature protection

Diagnosis:extended fault diagnosis function,status LED for power and fault indication

Installation:Install in dedicated slot of MULTI‑CONTROL rack

Weight:1.1kg

Degree of protection:IP20

Certification:CE,UL,CSA

Working temperature:‑10℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Rack‑mounted power supply provides stable 24VDC bus power for MULTI‑CONTROL rack CPU and each I/O module. Universal wide‑voltage AC input adapts to various on‑site power supply environments. Built‑in multiple protection mechanisms avoid module damage caused by power grid abnormality or load fault. Extended diagnosis function facilitates rapid positioning of power supply related faults during equipment maintenance

Product Brief

ECNT43‑0 belongs to B&R MULTI‑CONTROL old‑generation system family,it is discontinued legacy rack power unit specially used for Midi‑Multi‑Control rack. It must be installed in the dedicated power slot of the rack to supply power for the whole rack hardware. Widely used for original B&R old‑equipment maintenance and renovation. Before purchase,please confirm rack hardware version and slot matching requirement. ESD anti‑static protection shall be followed during installation
