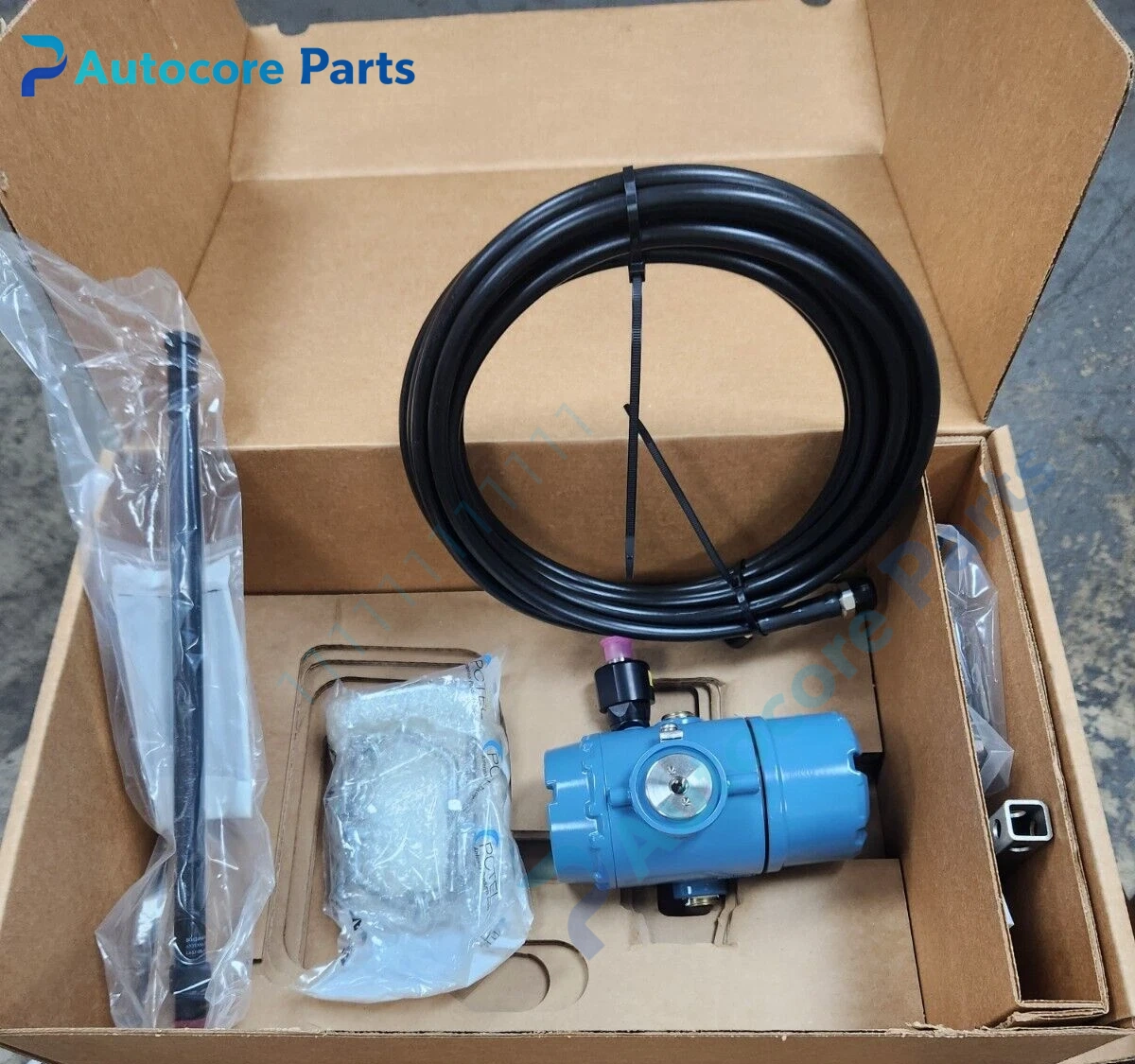

Rosemount 702DX32D1I5WA3WJ1M5B4 Discrete Transmitter

Module Feature

702DX32D1I5WA3WJ1M5B4 is Rosemount 702 series two‑channel wireless discrete transmitter. It receives dry‑contact signals from level, pressure or flow switches. Powered by replaceable internal battery, it sends status data via WirelessHART network. Suitable for field points hard to run cables in process plants.

Working principle

The device detects open/close state of external dry‑contact switches. Signal is converted to digital data and transmitted to wireless gateway over WirelessHART. Gateway forwards status information to DCS for monitoring and alarm handling.

Onboard components

Discrete input circuit, WirelessHART radio module, lithium battery pack, switch input terminals, optional LCD display, explosion‑proof housing and seals.

LED indicators

No separate LED. Input status and network information are shown on local LCD, also accessible from WirelessHART gateway.

Hardware self‑diagnosis

Check battery level, wireless signal strength, channel input status, read fault codes via gateway system.

Programming software

Configure parameters through AMS software or WirelessHART gateway. Local keypad supports basic on‑site setup.

Electrical & Process Parameters

Model:702DX32D1I5WA3WJ1M5B4 Brand:Rosemount Device type:Wireless Discrete Transmitter Communication:WirelessHART Power:Internal replaceable lithium battery Function:Dry‑contact switch signal acquisition and wireless transmission

Mechanical & Structure

Mounting:Bracket wall mount Protection class:IP66 / NEMA 4X Housing:Aluminum alloy explosion‑proof housing

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:0~100% non‑condensing Certification:Hazardous area approvals Status: Rosemount original 702 series discrete transmitter

Installation

Mount unit on bracket. Wire external dry‑contact switches to input terminals. Install battery, join wireless network, configure channel mode and verify data upload.

Interface

Discrete signal input terminals, battery compartment, optional local display, WirelessHART radio interface.

Diagnostic

No data upload: low battery or weak wireless signal. Wrong switch status: wiring fault or bad contact. Network drop‑out: signal obstruction or incorrect network settings.

Product Brief

Rosemount 702DX32D1I5WA3WJ1M5B4 WirelessHART discrete transmitter, wirelessly collects dry‑contact switch status for remote industrial monitoring.
