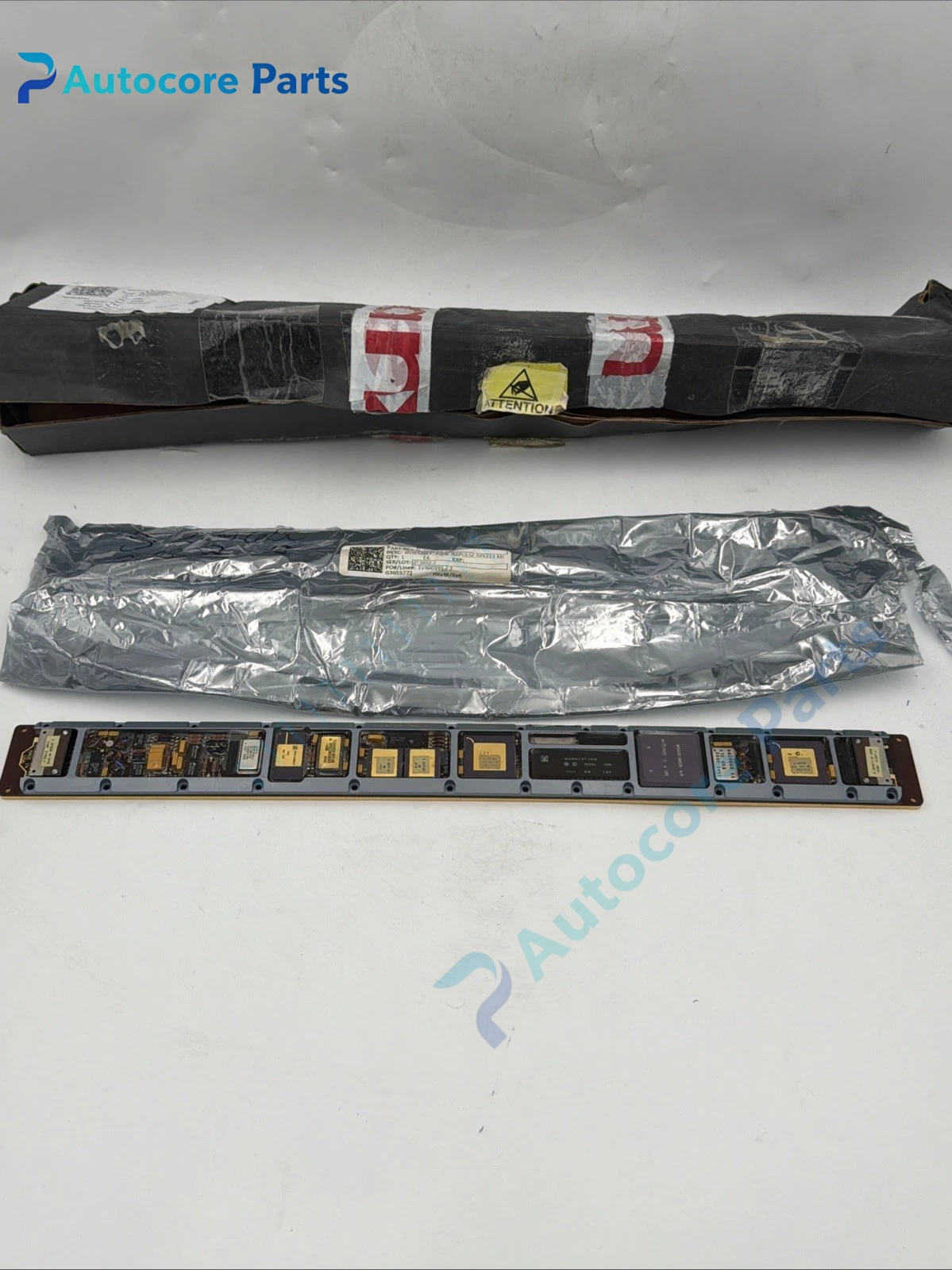

S-269630-AM Control Board Unit

Module Feature

S-269630-AM is an industrial printed circuit board assembly for process automation equipment.

It provides signal isolation, analog/digital signal conditioning and bus data transmission functions for field sensors and actuators. It adopts backplane hot-swap design, widely used for old DCS and PLC cabinet spare replacement in chemical and power plant.

Working principle

Field discrete and analog signals are filtered and isolated by onboard circuit.

Process data is transmitted to main controller through backplane bus. Isolation components reduce electromagnetic interference from heavy-duty industrial field equipment.

Onboard components

Signal conditioning chips, isolation circuit, backplane gold finger connector, SMD components, onboard LED indicator array.

LED indicators

Onboard LEDs show power supply, running state and fault alarm.

Hardware self‑diagnosis

Power-on self-check detects power abnormality, bus contact fault and signal channel error, fault codes can be viewed by upper engineering software.

Programming software

Vendor dedicated configuration tool, used for signal calibration and fault diagnosis.

Electrical & Process Parameters

Model:S-269630-AM Brand:Unspecified Device type:Industrial control PCB assembly Supply voltage:24V DC Function:Field instrument signal acquisition and transmission for process control

Mechanical & Structure

Mounting:Plug-in installation on system backplane

Protection class:IP20

Housing:PCB assembly with metal shielding frame

Environmental

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Ambient humidity:5~95% non‑condensing

Certification:CE

Status:Original industrial automation spare

Installation

Cut off cabinet power before replacement, insert the board into matched slot and lock fasteners.

Wire field signal cables according to schematic, verify bus communication and signal sampling function after power on.

Interface

Backplane bus connector, field signal terminal connector.

Diagnostic

Board offline: Damaged backplane pin, loose board locking.

Signal reading abnormal: Failed isolation circuit, wrong wiring polarity.

No LED indication: Missing 24V DC power supply.

Product Brief

S-269630-AM industrial PCB assembly, signal interface control board for automation equipment maintenance replacement.
