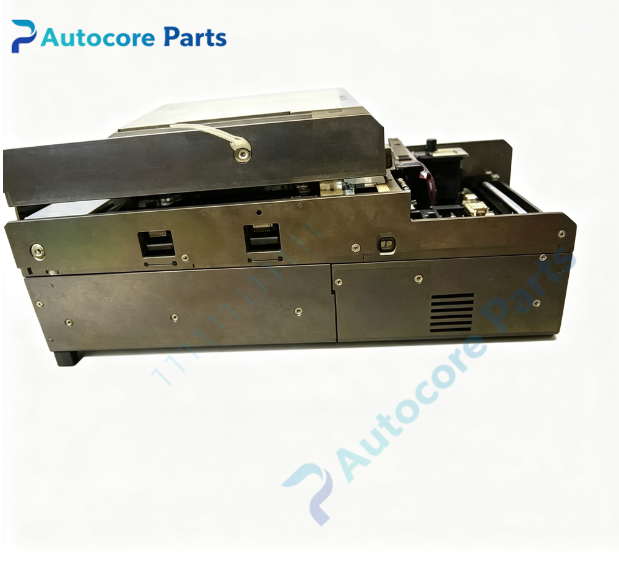

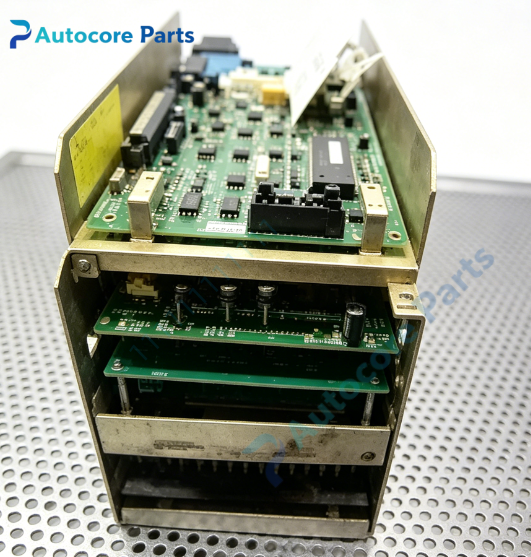

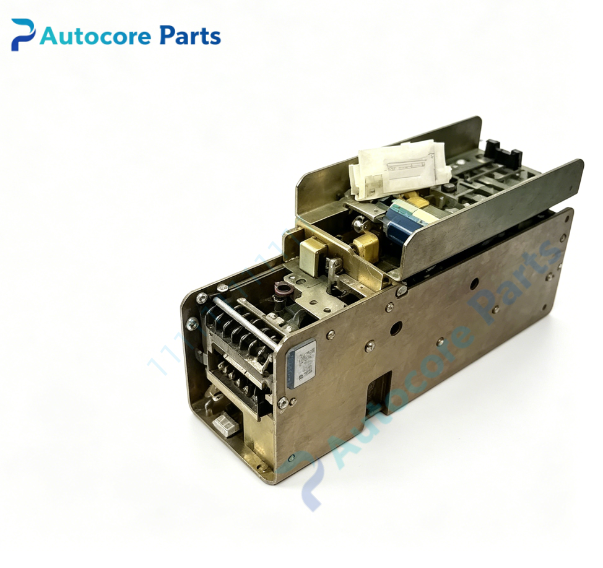

Sanyo Denki A8PU10ABFW01 Servo Amplifier

Module Feature

Sanyo Denki A8PU10ABFW01 belongs to SANMOTION PU series compact digital AC servo amplifier. AC200V single/three phase input, rated capacity 1.0kW. It adopts current and speed dual closed-loop control algorithm, featuring fast response and good vibration suppression performance. Supports position, speed, torque three control modes, can receive pulse train and analog command signals. Built-in comprehensive protection functions including overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault and emergency stop protection. DIN rail mounting design, convenient for cabinet installation and maintenance. Widely used for medium load precision motion axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The upper motion controller transmits motion instructions to this servo amplifier. The drive converts AC200V input power into three-phase variable frequency AC power to drive matched SANMOTION series servo motors. Real-time encoder position and speed feedback signal is sent back to amplifier, high speed digital closed-loop calculation adjusts output current to realize precise torque, speed and position control. When fault occurs, the amplifier will cut off power output immediately and send alarm information to host controller.

Onboard components:Power IGBT module,digital main control PCB,pulse / analog command terminal block,encoder feedback connector,AC power terminal,front panel LED status indicators,emergency stop terminal

LED indicatorsFront panel LED indicators for power, servo ready, servo enable, fault alarm and communication status.

Hardware self-diagnosis

Visual inspection of power terminals and encoder connectors; power-on self-test; input voltage detection; motor wiring continuity inspection; read alarm history and verify command signal loop.

Programming software

Sanyo Denki SANMOTION setup software for motor parameter automatic identification, servo gain tuning and alarm log reading.

Electrical & Process Parameters

Input voltage:AC200V class (single / 3 phase) Rated capacity:1.0kW Control mode:Position / Speed / Torque Command interface:Pulse train, analog signal Protection:Overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault, E-stop Mounting:DIN rail

Mechanical & Structure

Mounting:Cabinet DIN rail installation Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION PU digital servo amplifier

System compatibility

Matched with Sanyo Denki SANMOTION PU series 1.0kW servo motors for automation medium load axis positioning.

Function

A8PU10ABFW01 servo amplifier manufactured by Sanyo Denki. It provides power driving and closed-loop motion control for matched servo motors to realize high precision positioning. Improper wiring, mechanical overload or wrong parameter setting will trigger servo alarm and stop axis movement. It is compact medium power motion control unit for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off the whole servo system. Mount servo amplifier on DIN rail and reserve enough heat dissipation clearance. Wire AC power cable, motor power cable and encoder feedback cable. Connect control signal and emergency stop circuit. Configure parameters via SANMOTION software, perform axis jog test and positioning verification before formal operation.

InterfaceAC power input terminal, motor power output terminal, encoder feedback connector, pulse/analog signal terminal block, emergency stop terminal, front LED indicators on housing of A8PU10ABFW01.

Diagnostic

Servo not ready:Power supply missing or internal hardware damage. Motor no rotation:Servo enable signal missing, wiring error or incorrect motor parameters. Overload alarm:Mechanical jam, overload or motor winding defect. Encoder alarm:Cable damage, poor contact or encoder failure.

Product Brief

A8PU10ABFW01 Sanyo Denki SANMOTION PU series 1.0kW AC servo amplifier,AC200V class,digital dual closed-loop control,supports pulse/analog command,DIN rail mount,matching PU series servo motors,for semiconductor wet bench and chemical delivery medium load precision motion axis control.
