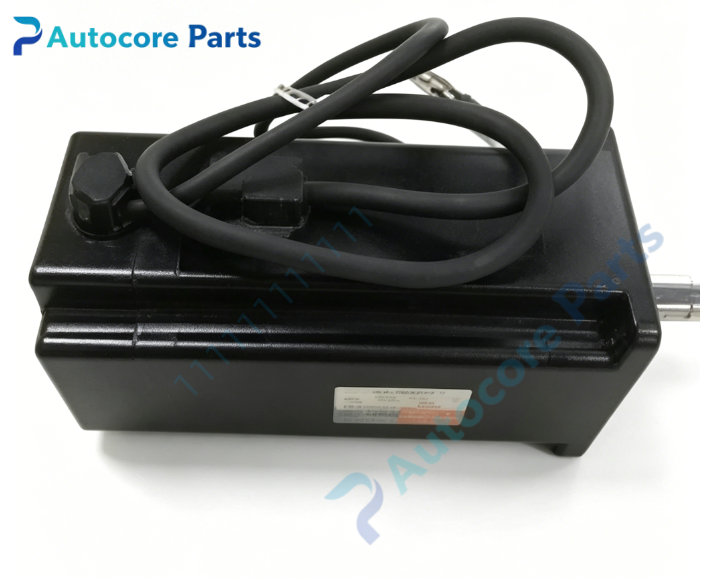

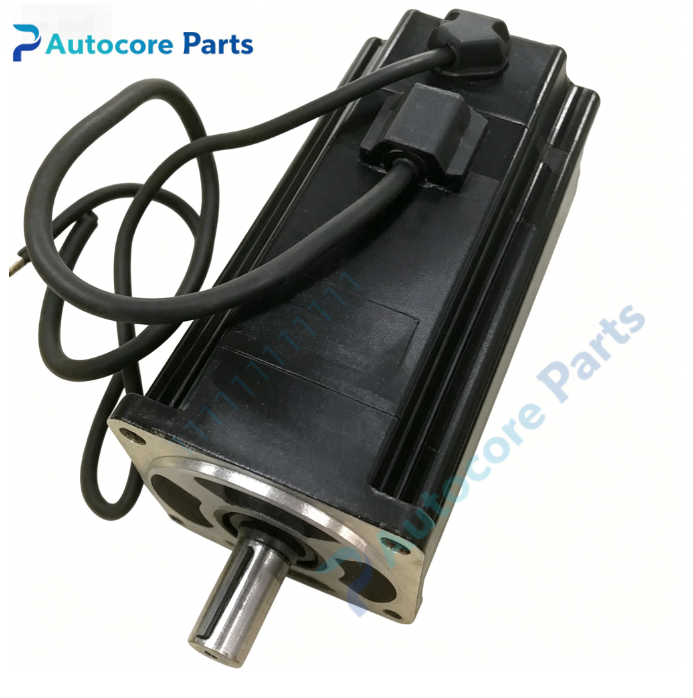

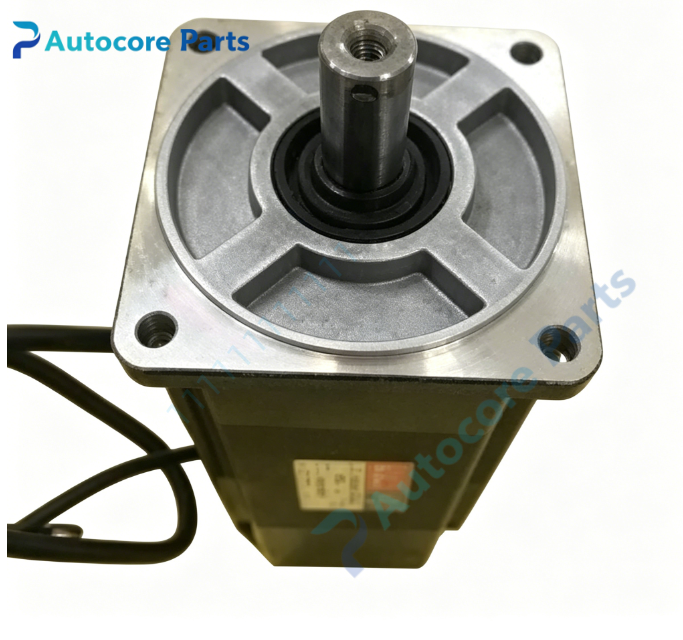

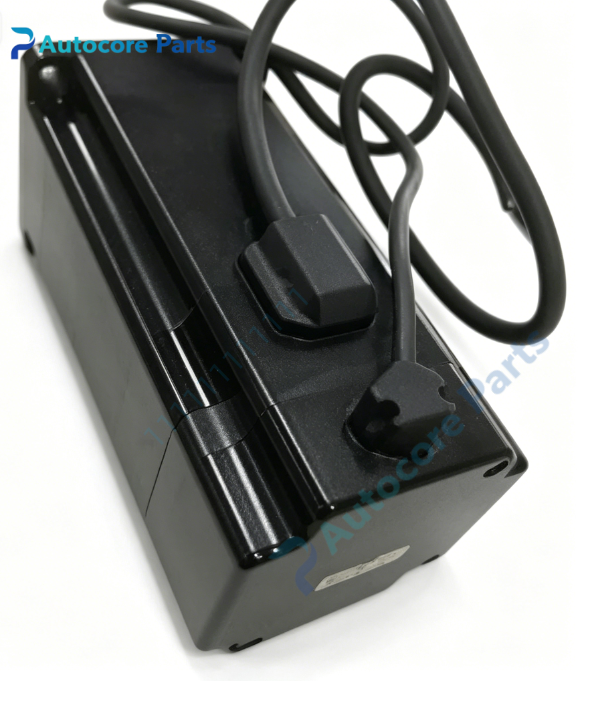

Sanyo Denki P50B08100HXS1J Servo Motor

Module Feature

Sanyo Denki P50B08100HXS1J belongs to P5 Super series medium inertia high performance AC servo motor. Rated power 1.0kW, 3-phase AC200V power supply, 50/60Hz. It adopts medium inertia permanent magnet rotor design, achieves stable high torque output with excellent dynamic response. Built-in high-resolution absolute encoder for real-time rotor position and speed feedback, no battery required for position retention. Equipped with internal thermal sensor and multi-stage overcurrent protection. Compact flange housing, outstanding shock and vibration resistance. Widely applied in semiconductor automation, CNC equipment and packaging machinery precision motion axes.

Working principle

The matched servo amplifier outputs variable frequency three-phase AC power to drive the stator winding of the servo motor. The permanent magnet rotor rotates under the action of rotating magnetic field. The built-in absolute encoder continuously feeds back rotor position and speed signals to the servo drive. The servo controller performs high-speed closed-loop calculation to adjust output current, realizing precise torque, speed and position control. Once overtemperature or overcurrent fault is detected, the motor will trigger protection to stop operation and avoid component damage.

Onboard components

Permanent magnet rotor, stator winding, absolute encoder assembly, thermal sensor, power terminal block, encoder signal connector, front and rear bearing set, motor housing and shaft oil seal.

LED indicators

No onboard LED indicators; status and alarm information are displayed on matched servo amplifier panel.

Hardware self-diagnosis

Visual inspection of motor housing, shaft surface, connectors and cable insulation; winding insulation resistance test; encoder signal continuity check; bearing noise inspection; power-on feedback signal verification with matched servo drive.

Programming software

Sanyo Denki SANMOTION setup software for motor parameter matching, servo gain tuning and fault alarm log reading.

Electrical & Process Parameters

Model: P50B08100HXS1J Input voltage: 3-phase AC200V,50/60Hz Rated power: 1.0kW Control mode: Position / Speed / Torque (depends on matched drive) Encoder type: High resolution absolute encoder Cooling: Natural cooling Protection: Overcurrent, overload, overtemperature, encoder fault Mounting: Flange mounting

Mechanical & Structure

Mounting: Flange mounting Protection class: IP65

Environmental

Operating temperature: 0℃ ~ +40℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: Sanyo Denki P5 Super series AC servo motor

System compatibility

Compatible with Sanyo Denki P5 series supporting servo amplifiers to form complete motion control system for high precision axis positioning.

Function

P50B08100HXS1J servo motor manufactured by Sanyo Denki. It converts electrical energy into mechanical rotary power under the control of matched servo amplifier, to realize high precision positioning and speed regulation for automation motion axis. Overload, wiring error or encoder damage will trigger system alarm and stop motor operation. It is reliable power execution unit for semiconductor and industrial automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off the whole servo system completely. Fix motor via flange mounting, align mechanical coupling properly to avoid radial and axial overload. Wire motor power cable and encoder feedback cable to servo drive. Set motor parameters via SANMOTION software, perform motor jog test and positioning verification before formal operation.

Interface

Motor power terminal, absolute encoder signal connector, motor housing of P50B08100HXS1J.

Diagnostic

Motor no rotation: Servo enable signal missing, wrong wiring or mismatched motor parameters. Overload alarm: Excessive mechanical load, coupling jam or mechanical stuck. Encoder alarm: Damaged encoder cable, poor connector contact or encoder failure. Overtemperature alarm: Continuous heavy load operation, poor heat dissipation or bearing failure. Insulation fault: Damaged stator winding or cable insulation aging.

Product Brief

P50B08100HXS1J Sanyo Denki P5 Super series AC servo motor,3-phase AC200V, rated power 1.0kW, medium inertia design, built-in high resolution absolute encoder, IP65 protection, flange mount, matched with P5 series servo amplifiers,for semiconductor automation and industrial precision motion axis control.
