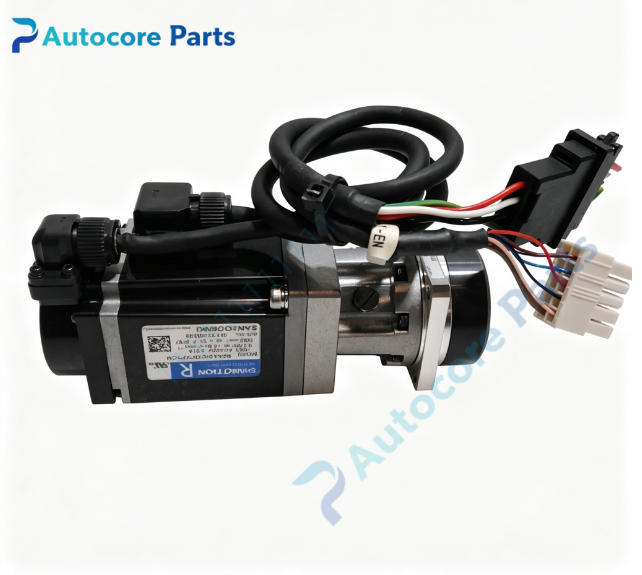

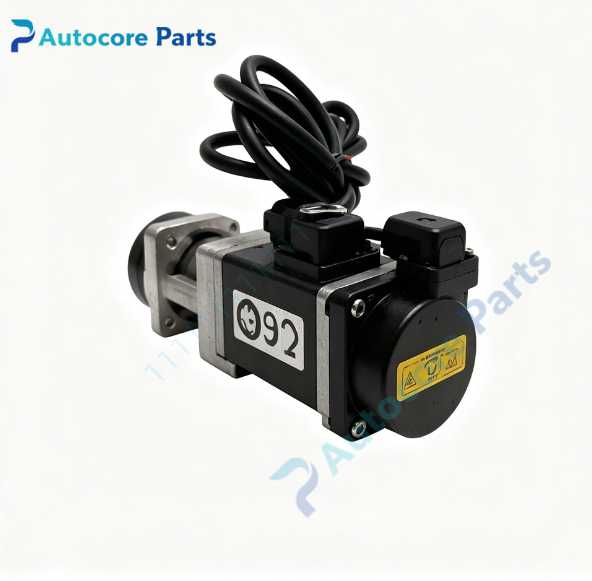

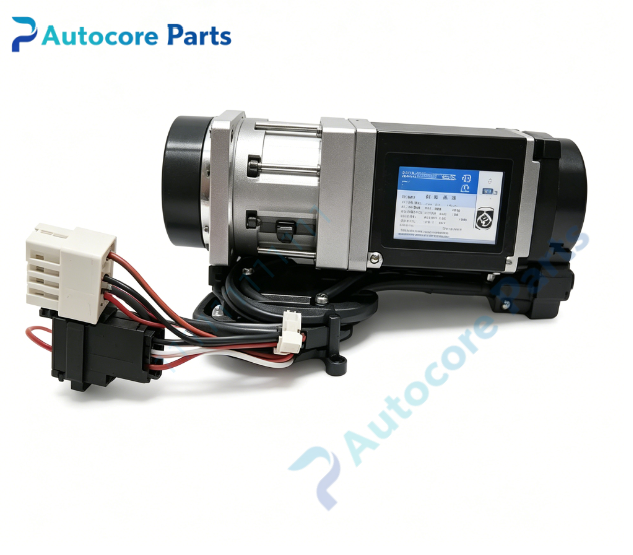

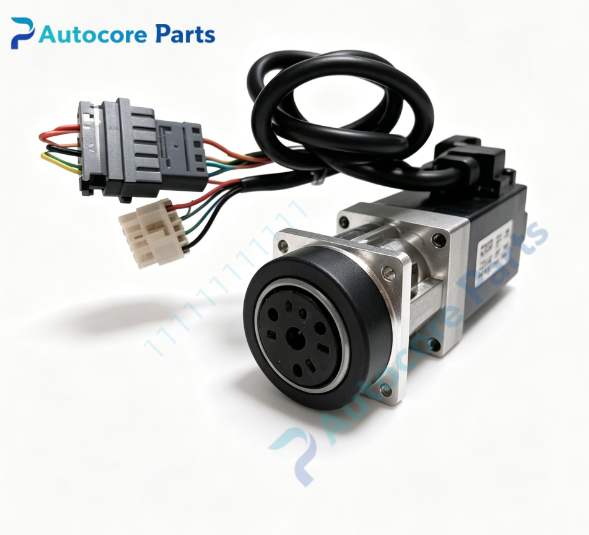

Sanyo Denki R2AA04010FXPCM AC Servo Motor

Module Feature

Sanyo Denki R2AA04010FXPCM belongs to SANMOTION R series compact AC brushless servo motor. Rated power 100W, AC200V power class, low inertia rotor design. Built-in high resolution absolute rotary encoder for closed-loop position feedback, no battery required for position retention. 40mm small square flange, ultra compact body, high torque density, low torque ripple and excellent dynamic response. High precision double ball bearing assembly, good vibration resistance and stable low-speed running characteristic. No built-in power-off holding brake, suitable for light load horizontal axis positioning applications. Widely used for light load precision motion axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The matched servo amplifier outputs three-phase AC power to motor windings. The built-in absolute encoder continuously feeds rotor angle and speed signal back to servo drive. The drive performs real-time closed-loop calculation and adjusts output current to realize precise torque, speed and position control. Absolute encoder can retain position data after power off, no need for home search after power restart. Without power-off brake, external mechanical locking device shall be equipped when applied to vertical load.

Onboard components:Motor stator & rotor assembly,built-in battery-less absolute rotary encoder,precision double ball bearing set,aluminum alloy housing,3-phase power connector,encoder feedback signal connector

LED indicatorsNo LED indicators on motor body; status LEDs are located on matched servo drive unit.

Hardware self-diagnosis

Visual inspection of shaft surface,connector pins and cable insulation; winding continuity and insulation resistance test; encoder signal waveform inspection; manual rotation smoothness test.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter auto recognition, servo gain tuning and alarm log reading.

Electrical & Process Parameters

Rated power:100W Rated voltage:AC200V Rotor type:Low inertia Feedback:Built-in battery-less absolute rotary encoder Brake:Without holding brake Cooling:Natural air cooling

Mechanical & Structure

Mounting:40mm square flange mount Protection class:IP65 (shaft and connector area) Shaft:Keyway shaft

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION R compact AC servo motor

System compatibility

Compatible with Sanyo Denki RS / PU series SANMOTION servo drives for automation light load horizontal axis positioning.

Function

R2AA04010FXPCM servo motor manufactured by Sanyo Denki. It provides high precision rotary motion and positioning control for light horizontal load axis. Winding damage,encoder failure or loose coupling will trigger servo alarm and stop movement. It is ultra compact small power motion actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off servo drive system. Align motor shaft and load coupling,fasten flange mounting bolts securely. Wire motor power cable and encoder feedback cable. Configure servo parameters via SANMOTION software, perform jog test and positioning verification before formal operation.

Interface3-phase power connector, encoder feedback connector on housing of R2AA04010FXPCM.

Diagnostic

Motor cannot rotate:Power wiring error, servo enable signal missing. Positioning inaccuracy:Encoder fault, loose coupling or servo gain mismatch. Overheat alarm:Overloaded load, poor ventilation or bearing wear. Abnormal running noise:Bearing damage or shaft misalignment between motor and load.

Product Brief

R2AA04010FXPCM Sanyo Denki SANMOTION R compact 100W AC servo motor,AC200V,40mm square flange,built-in battery-less absolute encoder,no holding brake,for semiconductor wet bench and chemical delivery light load precision horizontal axis motion control.
