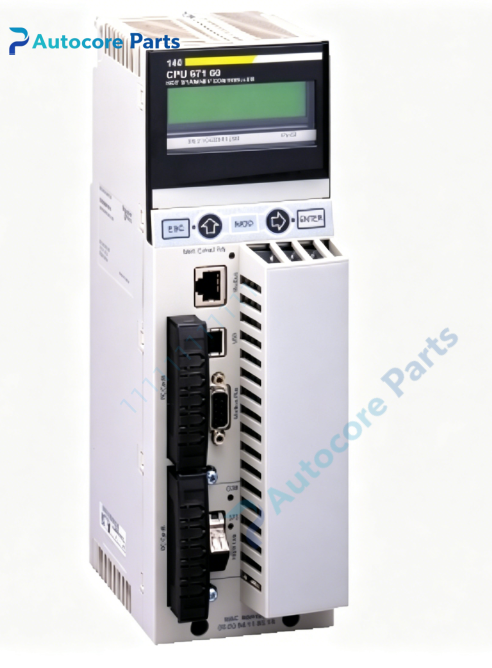

Schneider 140CPU67160 Modicon Quantum Unity Hot Standby Processor

Technical Specifications

Model：140CPU67160

Brand：Schneider

Product Type：Unity Hot Standby processor,Modicon Quantum automation platform,standard version

Processor：PowerPC 603e

Clock Frequency：266 MHz

Internal RAM：1024 kB (512 kB for program,512 kB for data)

Program Memory Expansion：7168 kB via PCMCIA card

File Storage Expansion：8 MB via PCMCIA card

Instruction Speed：20K Boolean instructions/ms,15K mixed instructions/ms

Instruction Execution：0.0525‑0.075µs Boolean,0.4‑0.5µs floating‑point

Local Racks：2 local racks

Remote I/O Stations：Max 31 remote I/O stations

Discrete I/O：31744 inputs,31744 outputs(remote)

Analog I/O：1984 inputs,1984 outputs(remote)

Integrated Interfaces：Modbus Plus(SUB‑D9),Modbus(RJ45),USB,MT‑RJ multimode fiber for hot‑standby sync

Supported Optional Modules：Up to 6 optional communication modules(Ethernet,Modbus Plus,Profibus‑DP etc.)

Hot‑Standby Distance：Max 4km via multimode fiber

Bus Current Consumption：2500mA

Weight：1.424kg

Mounting：Quantum backplane rack mounting

Protection Grade：IP20

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Application：Chemical industry,power plant,metallurgy,water treatment,redundant PLC system maintenance and spare‑part replacement。

Product Details

140CPU67160 is standard Unity hot‑standby redundant CPU for Schneider Modicon Quantum platform,without conformal coating,designed for high‑reliability industrial process control scenarios. It adopts PowerPC 603e processor at 266MHz,built‑in 1024kB internal RAM,supports PCMCIA memory card for program and file storage expansion.

This CPU integrates MT‑RJ multimode fiber port dedicated for hot‑standby synchronization,realizes bumpless automatic switchover between primary and standby CPU,ensuring continuous system operation. It comes with Modbus Plus,Modbus,USB native interfaces and supports up to 6 optional communication modules to build multi‑network industrial control architecture.

Note: Hot‑standby mode disables fast tasks,interrupt tasks and auxiliary tasks,only cyclic master task is available. It supports massive remote distributed I/O capacity,suits large‑scale DCS and PLC control system. Mainly used as replacement spare‑part for redundant Quantum PLC system in chemical,power,metallurgy and water‑treatment projects. Functionally compatible with 140CPU67160C,140CPU67160C is conformal coated version for harsh environment.
