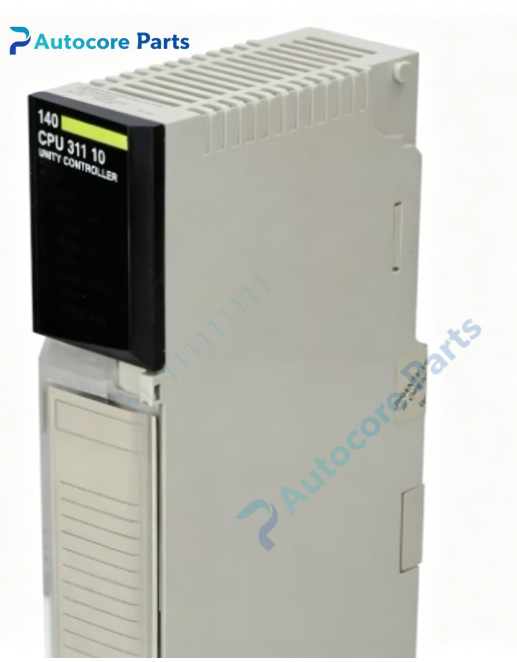

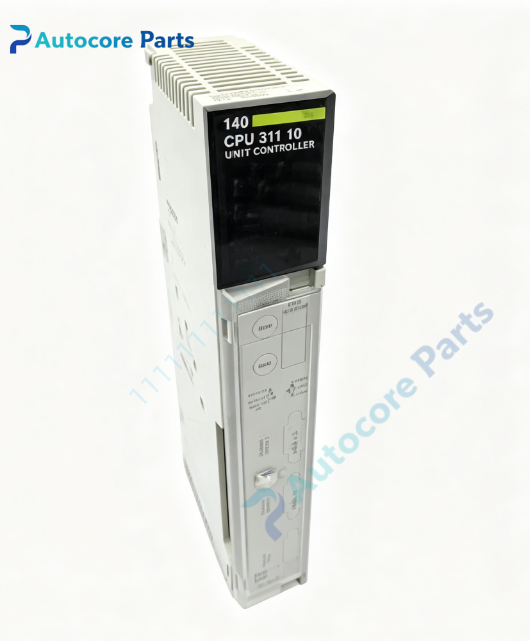

Schneider 140CPU31110 Modicon Quantum Unity Processor

Technical Specifications

Model：140CPU31110

Brand：Schneider

Product Type：Unity processor,Modicon Quantum automation platform

Clock Frequency：66 MHz

Internal RAM：548 kB

Memory Expansion：Support PCMCIA memory card

Instruction Speed：1.86K Boolean instructions/ms,2.49K mixed instructions/ms

Instruction Execution：0.12‑0.585µs Boolean,0.1‑0.27µs floating‑point

Local Racks：2 local racks

Remote I/O Stations：Max 31 remote I/O stations

Discrete I/O：31744 inputs,31744 outputs(remote)

Analog I/O：1984 inputs,1984 outputs(remote)

Integrated Interfaces：1×Modbus Plus(SUB‑D9),2×Modbus(SUB‑D9)

Optional Communication Modules：Max 2 optional communication modules

Display：Front‑panel LCD diagnostic display

Bus Current Consumption：1800mA

Weight：0.77kg

Mounting：Quantum backplane rack mounting

Protection Grade：IP20

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Application：Water treatment,machinery manufacturing,power auxiliary system,medium‑size process control system maintenance and spare‑part replacement。

Product Details

140CPU31110 is mid‑range Unity processor for Schneider Modicon Quantum automation platform,compatible with Unity Pro programming software,designed for medium‑size industrial automation and process control applications.

It runs at 66MHz clock frequency with 548kB internal RAM,supports PCMCIA memory card for program storage expansion. This CPU is equipped with front‑panel LCD display for local status checking and fault diagnosis,multiple task mechanism supports cyclic main task,fast periodic task and multi‑group interrupt tasks.

Integrated native Modbus Plus and dual Modbus serial ports,realizes peer‑to‑peer interconnection between controllers,connects HMI,inverters and field instruments. It allows up to 2 optional communication modules to expand network functions,without native Ethernet port.

Support 2 local racks and maximum 31 remote I/O stations,realizes large‑scale distributed I/O deployment. Widely applied in water treatment,equipment manufacturing and power auxiliary control,used as replacement spare‑part for existing Quantum PLC systems.
