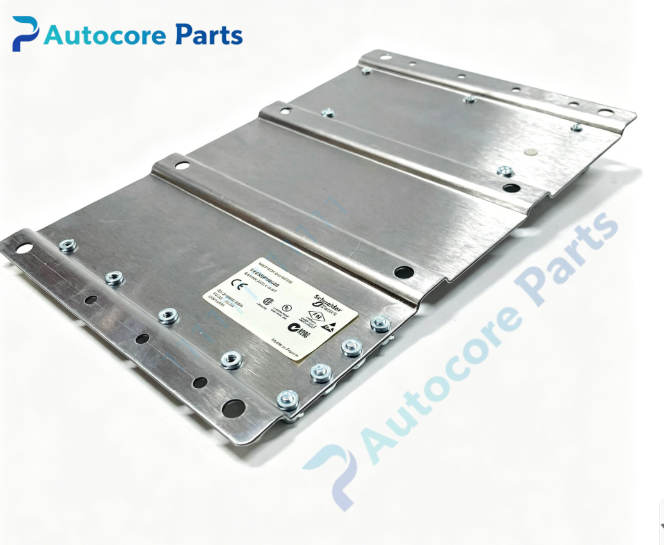

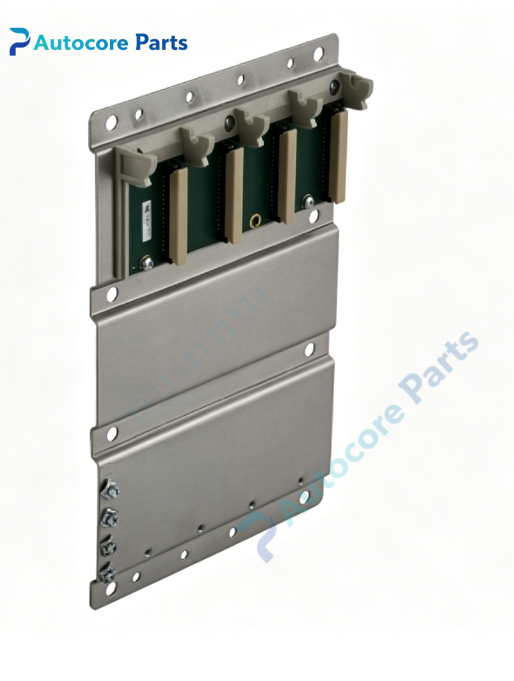

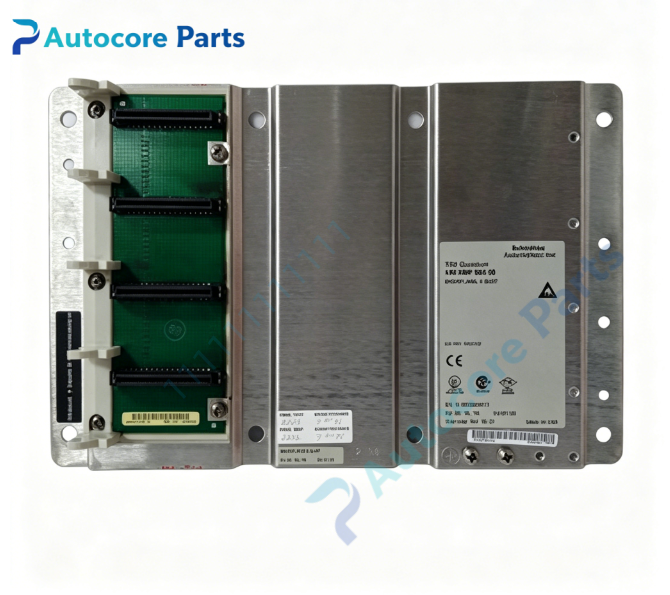

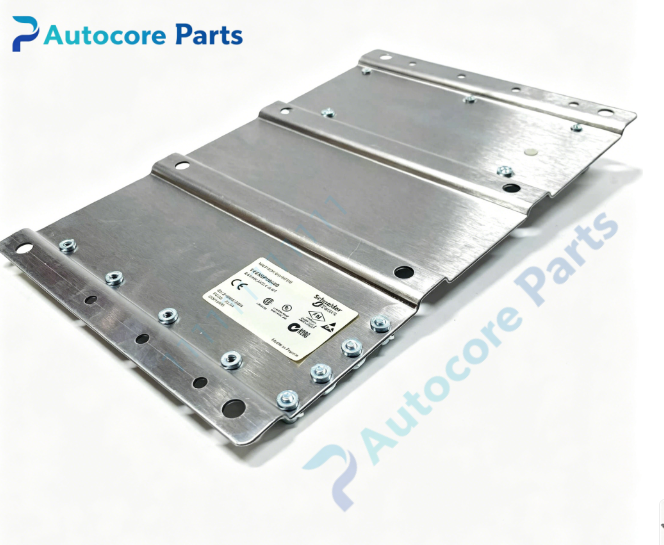

Schneider 140XBP00400 Modicon Quantum 4‑Slot Backplane

Technical Specifications

Model：140XBP00400

Brand：Schneider

Product Type：Standard 4‑slot backplane,Modicon Quantum automation platform

Slot Quantity：4 slots,support CPU,I/O,communication modules

Mounting：Panel screw mounting

Weight：0.45kg

Dimension：203mm × 179mm × 53mm

Bus Signal：Quantum backplane high‑speed parallel bus

Compatible Series：All Modicon Quantum CPU,I/O and communication modules

Protection Grade：IP20

Working Temperature：0℃ ~ +60℃，non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：10%‑95% non‑condensing

Application：Chemical industry,power plant,water treatment,metallurgy,on‑site Quantum PLC rack replacement and spare‑part replacement。

Product Details

140XBP00400 is standard 4‑slot backplane rack for Schneider Modicon Quantum platform,provides high‑speed parallel backplane bus interconnection for CPU,analog‑digital I/O and communication modules.

It adopts panel screw installation structure,total 4 module slots,can be configured with CPU module,input‑output modules and communication expansion modules according to project demands. Realizes high‑speed data interaction between each module through Quantum internal bus.

Compatible with full‑range Modicon Quantum series hardware,works with Unity Pro,Concept and ProWORX32 programming environment. It is widely used for on‑site rack damage replacement of existing Quantum PLC systems in chemical,power,water‑treatment and metallurgy industries. Note：140XBP00400C is conformal‑coated version for harsh corrosive environment.
