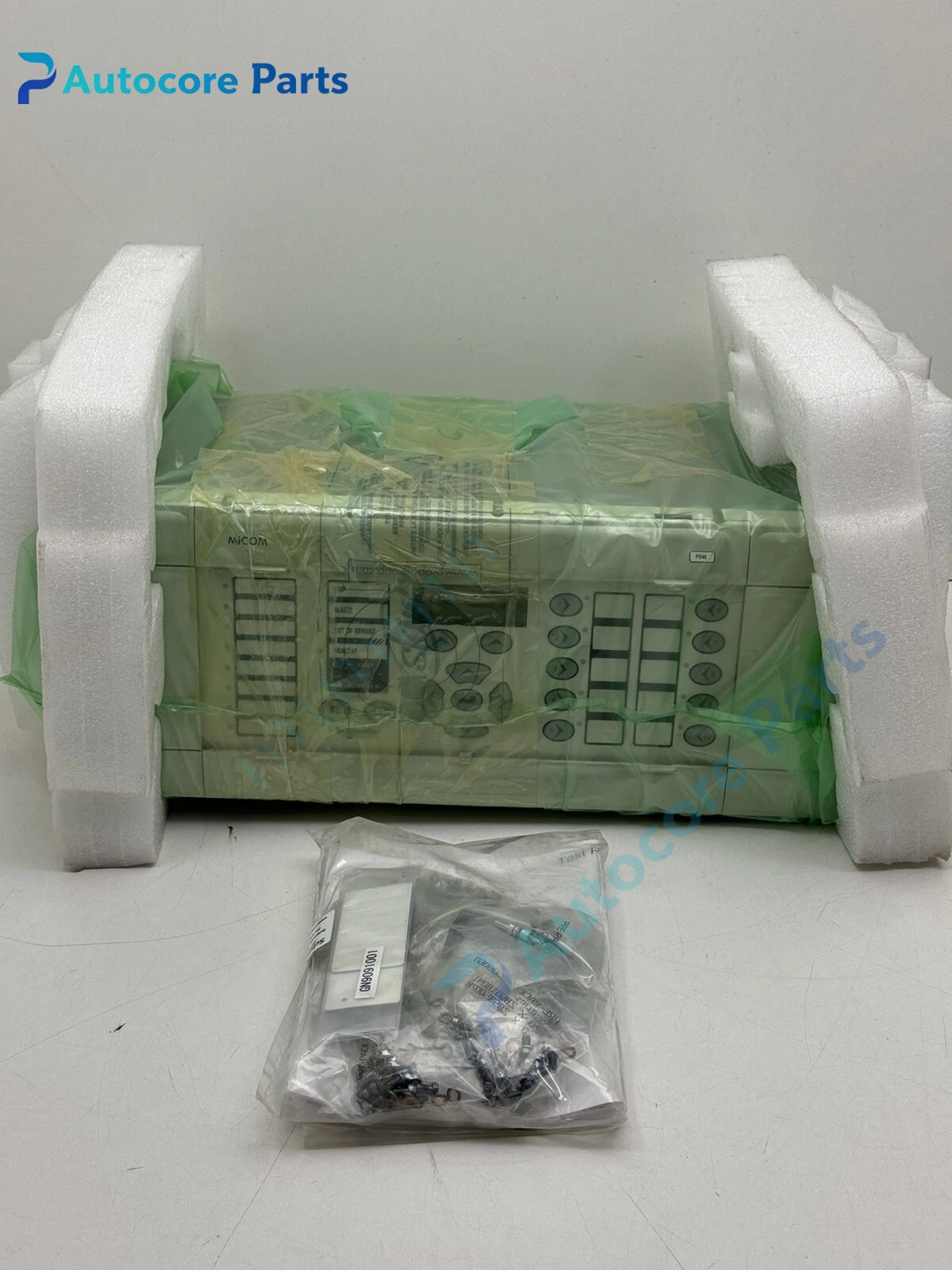

Schneider Easergy MiCOM P546 P54631NR7M0D08M Line Differential Relay Unit

Module Feature

P54631NR7M0D08M is full order code of MiCOM P546 transmission line differential protection relay.

It is dedicated for breaker-and-a-half bay applications on HV / EHV overhead lines and underground cables. It adopts phase-segregated percentage bias differential algorithm with CT saturation transient restraint, supports high resistance earth fault detection via neutral differential element. Integrated subcycle distance protection, directional earth fault, multi-shot autoreclose and breaker control functions. It supports fiber optic longitudinal communication between two line terminals, IEC61850, Modbus and MIRRORED BITS high speed inter-bay logic. Conformal coated circuit board, high EMC immunity for substation environment. Widely stocked as maintenance spare for power grid transmission bay cabinet.

Working principle

The relay samples local three-phase current continuously and exchanges current data with remote line-end relay via fiber link.

It calculates differential and restraining current for each phase. When internal line fault occurs, differential current exceeds restraint threshold and trips breakers instantly. If communication channel fails, backup distance and overcurrent protection take over. It controls two circuit breakers independently in breaker-and-a-half layout, executes fault phase selection, autoreclose sequence and fault event recording.

Onboard components

CT signal conditioning board, main protection CPU, fiber communication transceiver module, binary input bank, trip relay output group, event memory, front LCD HMI, status LED array, terminal block and metal rack housing.

LED indicators

Front panel LED indicators: Power, Healthy, Trip, Alarm, Channel Fault, Remote Trip.

Hardware self‑diagnosis

Built-in supervision detects CT open circuit, fiber link loss, internal hardware fault, auxiliary supply loss and relay feedback failure. Parameter configuration and fault analysis are completed by Schneider Easergy Studio software.

Programming softwareEasergy Studio, used for differential characteristic setting, distance zone configuration, autoreclose logic, fiber communication setup and oscillography record download.

Electrical & Process Parameters

Model:P54631NR7M0D08M Brand:Schneider Electric (Easergy MiCOM) Device type:P546 line differential protection IED Function:High-speed main differential protection, distance backup and breaker control for HV transmission line

Mechanical & Structure

Mounting:19-inch rack flush mount inside relay bay cabinet Protection class:IP54 front panel Housing:Metal enclosed rack module

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC60255, IEC61850 Status:Original Schneider transmission line protection spare

Installation

Isolate DC auxiliary supply and CT circuits before replacement.

Verify fiber communication wiring, check CT polarity and ratio, download protection setting group, test differential scheme, distance backup and autoreclose action after commissioning.

Interface

CT measurement terminals, binary input permissive terminals, trip relay output terminals, fiber longitudinal communication port, Ethernet IEC61850 port, auxiliary DC power terminals.

Diagnostic

Channel fault alarm:Fiber break, optical power out of range, remote relay offline. Differential false operate:CT polarity reversed, CT saturation, ratio mismatch. Autoreclose lockout:Persistent fault, breaker failure feedback. Distance backup trip:Communication channel outage, internal fault.

Product BriefP54631NR7M0D08M relay, Schneider MiCOM P546 line differential IED spare for HV breaker-and-a-half transmission line bay cabinet replacement.
