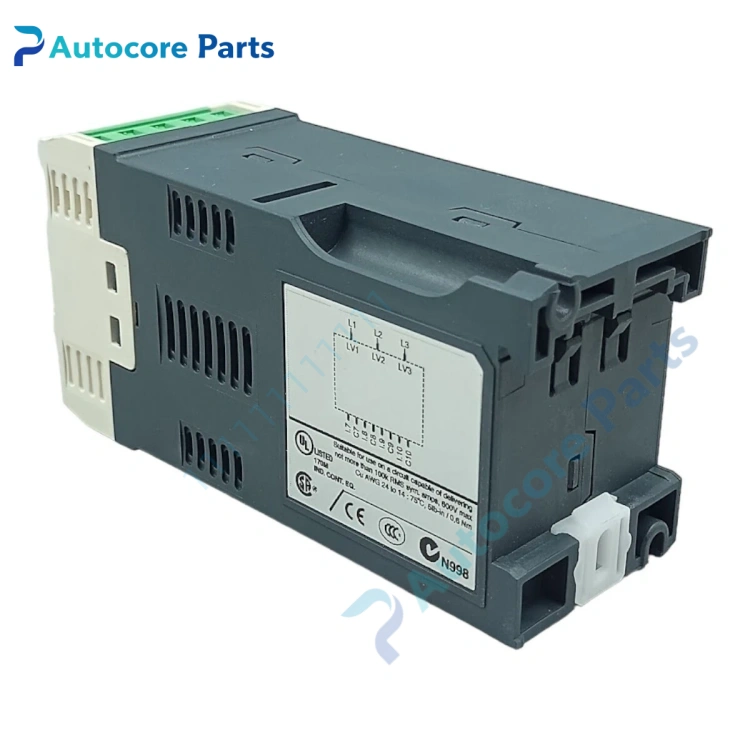

Schneider LTMEV40BD Extension Module

Feature & Principle

It is an expansion module for Schneider TeSys T LTMR motor management controller. It connects to LTMR main controller via dedicated cable and gets power from the controller. It collects external digital signals and transmits data back to the master controller. It expands voltage, power and energy metering functions for motor management system, supports motor condition monitoring, energy statistics and fault interlock. It adopts modular DIN rail installation for easy expansion of motor control cabinets.

Specifications

Model: LTMEV40BD Brand: Schneider Series: TeSys T Compatible host: LTMR motor controller Digital input: 4 channels Logic input voltage: 24VDC Power supply: Powered by LTMR controller Mounting: DIN rail Rated insulation voltage: 690V Lifecycle: Discontinued Application: Motor control cabinet, pump, fan, conveyor motor monitoring Certification: CE, UL, RoHS

Components & Diagnostics

Main PCB board, signal acquisition circuit, internal bus interface, status LED indicators, terminal block. Common faults: communication failure with LTMR, input channel no response, module not recognized, signal reading abnormal.

Product Brief

LTMEV40BD expansion module, Schneider TeSys T motor management spare widely used for motor control cabinet overhaul and replacement.
