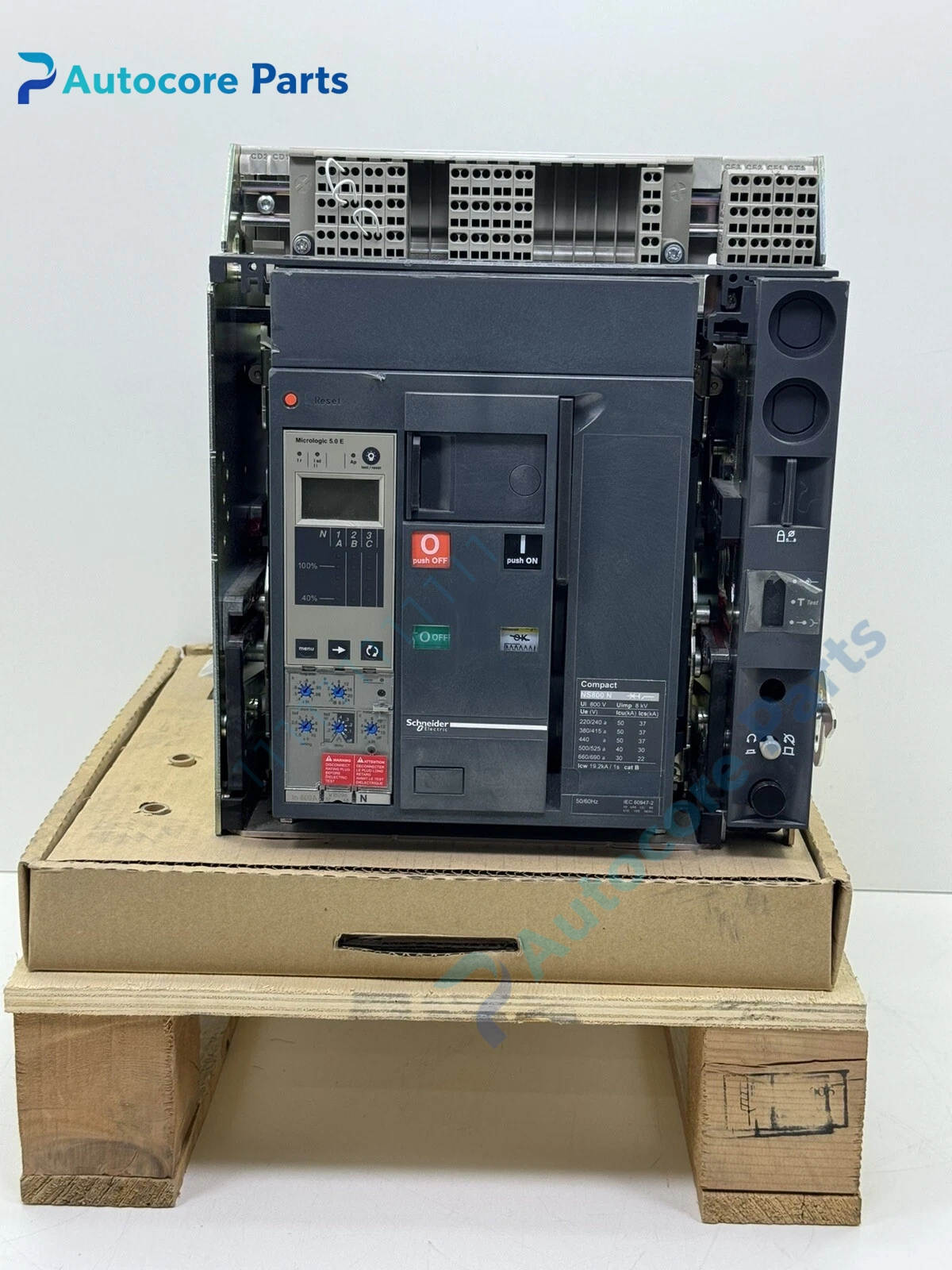

Schneider NS800 Molded Case Circuit Breaker Unit

Feature & Principle

Low voltage molded case circuit breaker, thermal element for overload protection, magnetic instantaneous trip for short circuit fault protection, protects distribution lines and downstream electrical loads.

Specifications

Model: NS800 Brand: Schneider Rated Current: 800A Poles: 3P / 4P Trip Type: Thermal Magnetic Rated Voltage: 400V AC Mounting: Fixed / Draw-out Certification: CE

Components & Diagnostics

Insulated molded housing, trip unit, contact assembly, operating mechanism and arc extinguishing chamber. Common faults: overheating from loose terminals, trip failure, contact ablation after short circuit.

Product Brief

NS800 circuit breaker, Schneider NS series MCCB spare for industrial low voltage power distribution and heavy load circuit protection.
