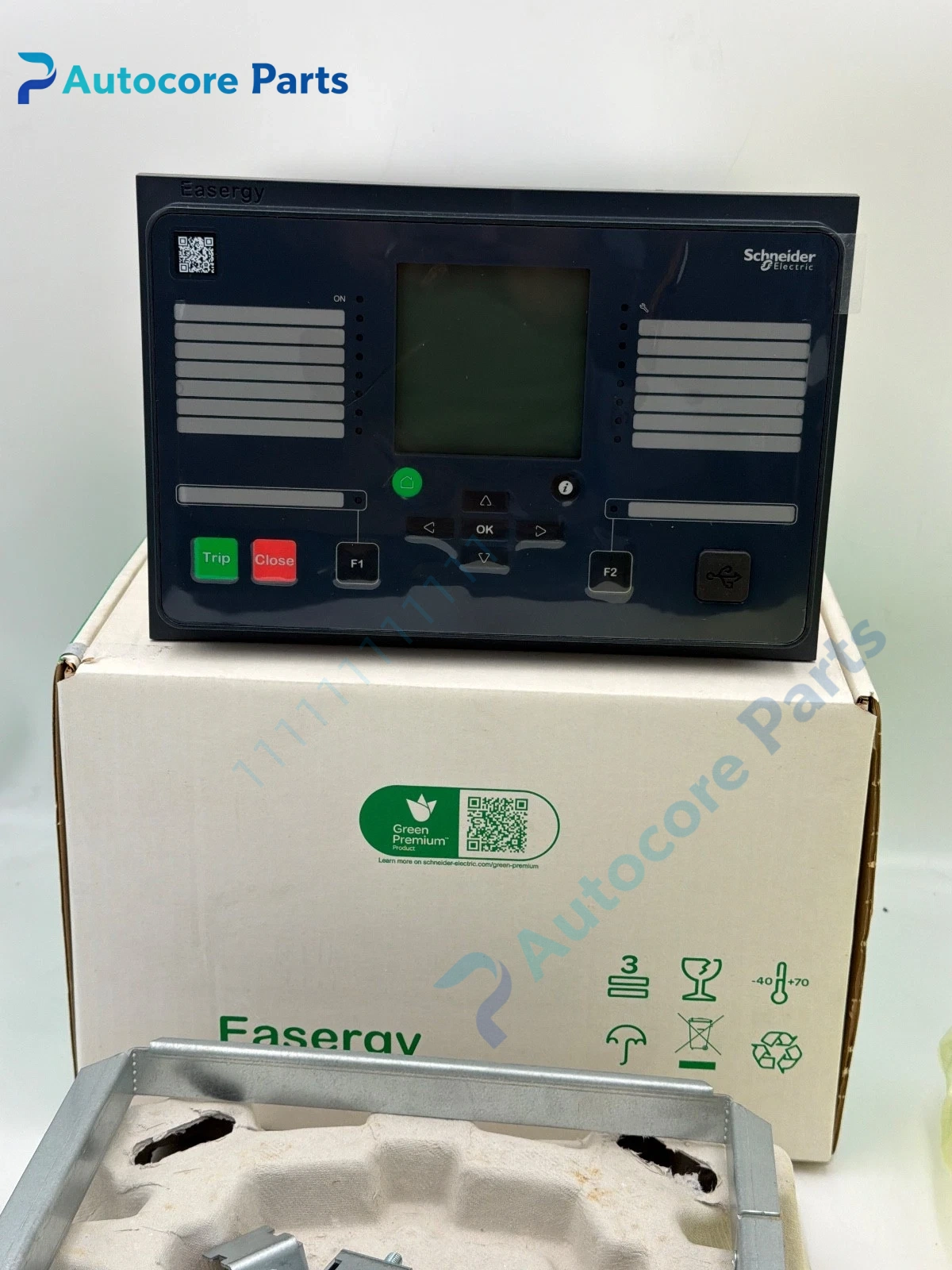

Schneider P3M32-CGG1A-AA1FA-BBAAB Easergy P3M32 Motor Protection Relay Unit

Feature & Principle

It provides motor overload, earth fault, short-circuit and locked rotor protection. It supports IEC61850, Modbus TCP and RS485 communication for remote monitoring and control.

Specifications

Model: P3M32-CGG1A-AA1FA-BBAAB Brand: Schneider Power supply: 48~230V AC/DC I/O: 12DI,14DO Mounting: Flush panel mount Front protection: IP40 Certification: CE

Components & Diagnostics

Equipped with HMI display, signal acquisition board, Ethernet and RS485 ports. Common faults: CT wiring error, communication offline, false trip caused by incorrect parameter setting.

Product Brief

P3M32-CGG1A-AA1FA-BBAAB relay, Schneider Easergy P3M32 motor protection IED spare used for medium voltage motor control cabinet.
