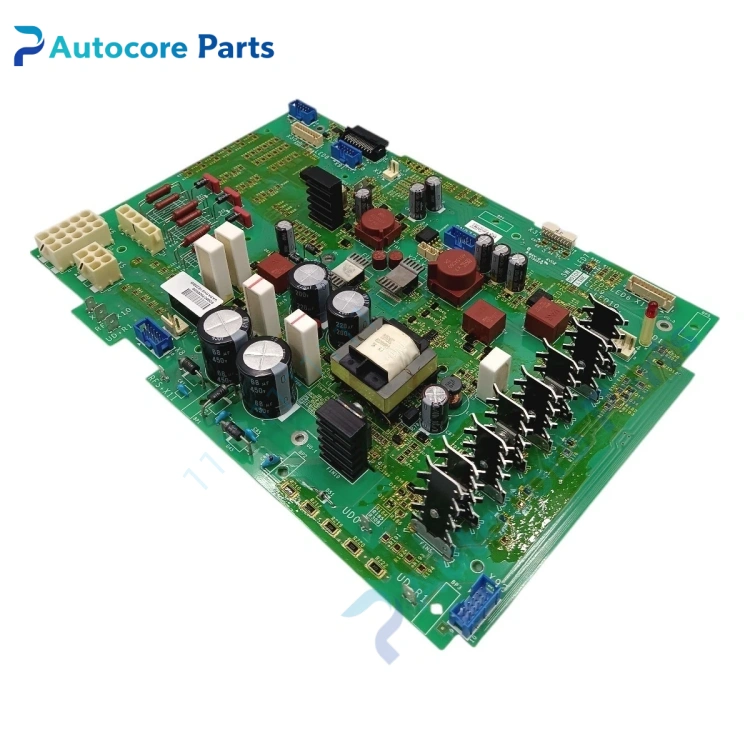

Schneider VX5A1HC1622 Inverter Power Board

Feature & Principle

It is the dedicated power board for Schneider Altivar 61 and Altivar 71 high-power inverters. It completes AC rectification, DC link power distribution and IGBT power drive signal transmission. It cooperates with the gate driver board to control the switching of power modules, converts three-phase alternating current into adjustable frequency alternating current to drive motors. Integrated overcurrent, overvoltage and temperature detection circuits provide power stage protection for the whole drive.

Specifications

Model: VX5A1HC1622 Brand: Schneider Applicable inverter: ATV71HC16N4, ATV61HC22N4 Series: Altivar 61 / Altivar 71 Function: Rectifier, power supply and power loop control Lifecycle: Discontinued legacy spare Application: Fan, pump, conveyor heavy-duty variable frequency control cabinet Certification: CE, UL

Components & Diagnostics

Rectifier circuit, electrolytic capacitor bank, current sampling circuit, power terminal, signal connector. Common faults: capacitor bulging, power device burnout, sampling signal abnormality, no DC bus output.

Product Brief

VX5A1HC1622 inverter power board, Schneider ATV61/ATV71 drive spare widely used for high-power frequency converter overhaul and replacement.
