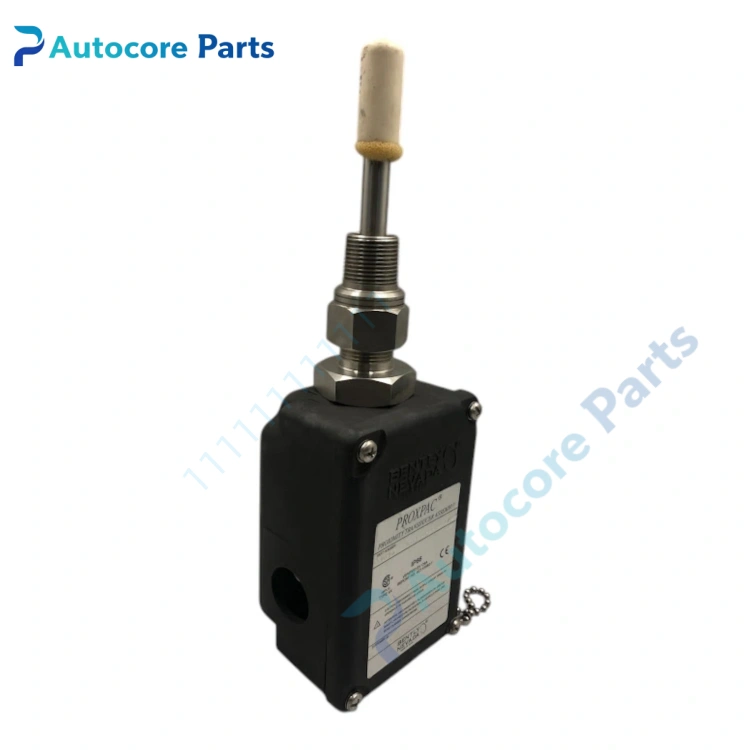

Bently Nevada 330800 Proximity Transducer

Feature & Principle

It is an integrated eddy current proximity sensor assembly from Bently Nevada PROXPAC XL series. The probe and proximitor circuit are integrated inside one housing, which cancels the need for an extension cable. It works on eddy current principle: high-frequency alternating magnetic field is emitted by the probe coil, eddy current forms on the metal target surface, and the impedance change of the coil reflects the clearance between probe and shaft. It outputs standard vibration signal directly to 3500 monitoring rack, supports external adjustment of probe clearance, suitable for difficult installation positions of turbines and compressors.

Specifications

Model: 330800 (PROXPAC XL series base part prefix) Brand: Bently Nevada Measurement principle: Eddy current Built-in sensor: 3300 XL proximitor Housing material: PPS conductive plastic Protection rating: Type 4X, IP66 Thread standard: NPT thread mounting Compatible system: 3500 machinery monitoring system Probe option: 8mm 3300XL probe Application: Turbine, centrifugal compressor, pump shaft vibration and thrust position monitoring Certification: CE, ATEX, FM optional

Components & Diagnostics

Eddy current probe, integrated proximitor circuit board, PPS housing, sealing O-ring, wiring terminal. Common faults: signal drift, no signal output, seal aging and water ingress, internal circuit damage.

Product Brief

330800 PROXPAC XL integrated proximity transducer, Bently Nevada rotating machinery condition monitoring spare widely used for turbine and compressor overhaul and replacement.
