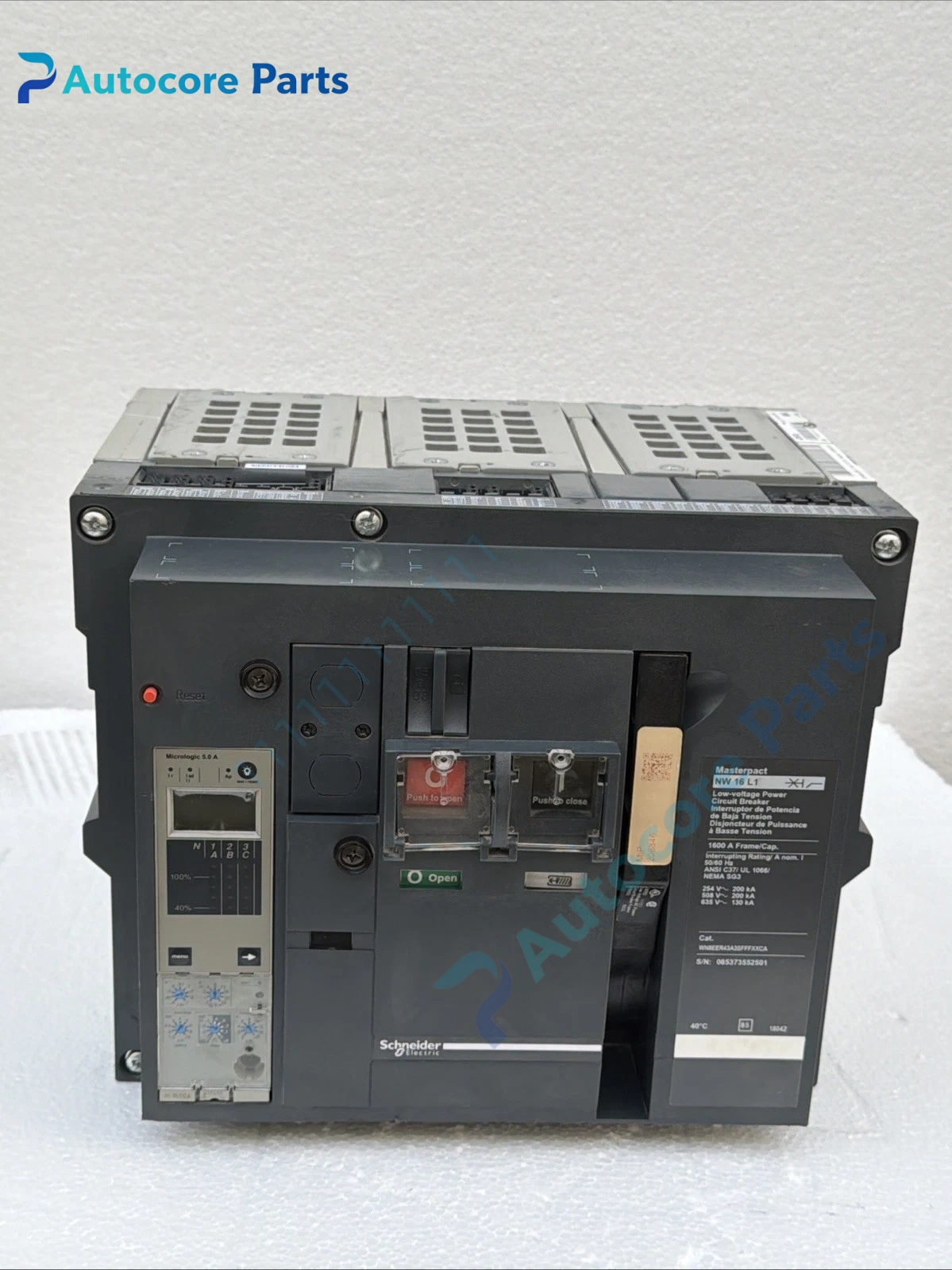

Schneider WN8EER43A3SFFFXXCA NW16 Air Circuit Breaker Unit

Feature & Principle

Draw-out type air circuit breaker, equipped with electronic trip unit, provides overload, short circuit and earth fault protection, used as main incoming breaker of low-voltage distribution system.

Specifications

Model: WN8EER43A3SFFFXXCA Brand: Schneider Series: NW16 Rated Current: 1600A Structure: Draw-out Rated Voltage: 400V AC Protection: Overload / Short-circuit / Earth fault Certification: CE

Components & Diagnostics

Main contact assembly, arc extinguishing chamber, electronic trip unit, operating mechanism, draw-out base and status indicator. Common faults: contact overheating, trip unit misoperation, closing failure.

Product Brief

WN8EER43A3SFFFXXCA air circuit breaker, Schneider NW16 series ACB spare for industrial plant and building main power distribution protection.
