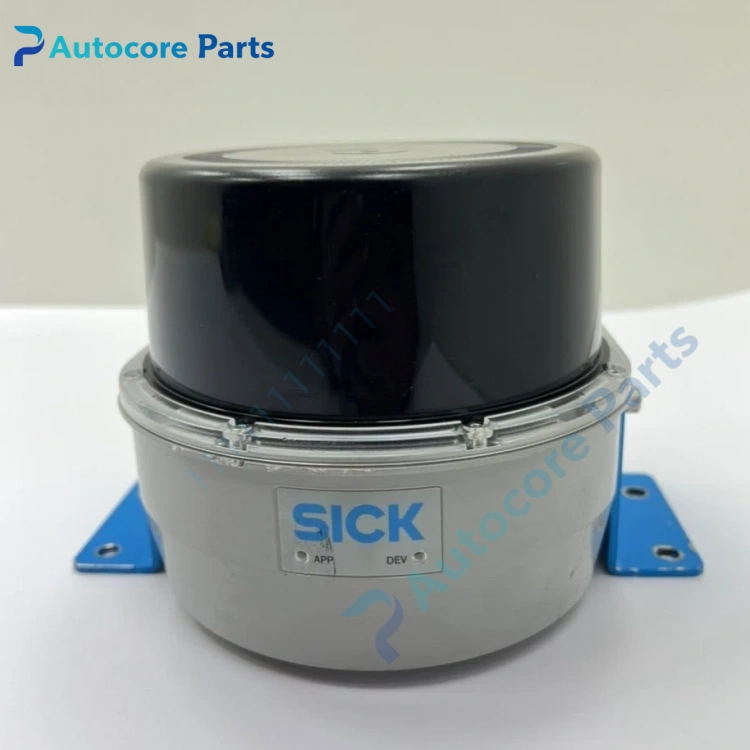

SICK 1098855 LRS4581R-230001 360 Degree Outdoor 2D LiDAR Unit

Feature & Principle

This 360-degree 2D laser scanner adopts time-of-flight ranging principle. It continuously emits infrared laser for omnidirectional scanning, outputs distance and angle data. With special sunlight suppression design, it can work stably in open outdoor environment, supports field settable warning and protection zones, triggers alarm when targets enter the monitored area.

Specifications

Model: 1098855 (LRS4581R-230001) Brand: SICK Series: LRS4000 Scan angle: 360° Laser: 886nm infrared, Class1 Scan frequency: 12.5Hz / 25Hz Supply voltage: 10 ~ 30V DC Interface: Ethernet, digital I/O Protection: IP67 Certification: CE

Components & Diagnostics

Laser transceiver module, main processing board, Ethernet interface, M12 connector and outdoor aluminum housing. Common faults: lens dust accumulation, ranging anomaly, network disconnection, over-temperature alarm.

Product Brief

1098855 outdoor laser scanner, SICK security perception spare widely used for factory perimeter protection, container yard, outdoor AGV and unmanned vehicle obstacle detection.
