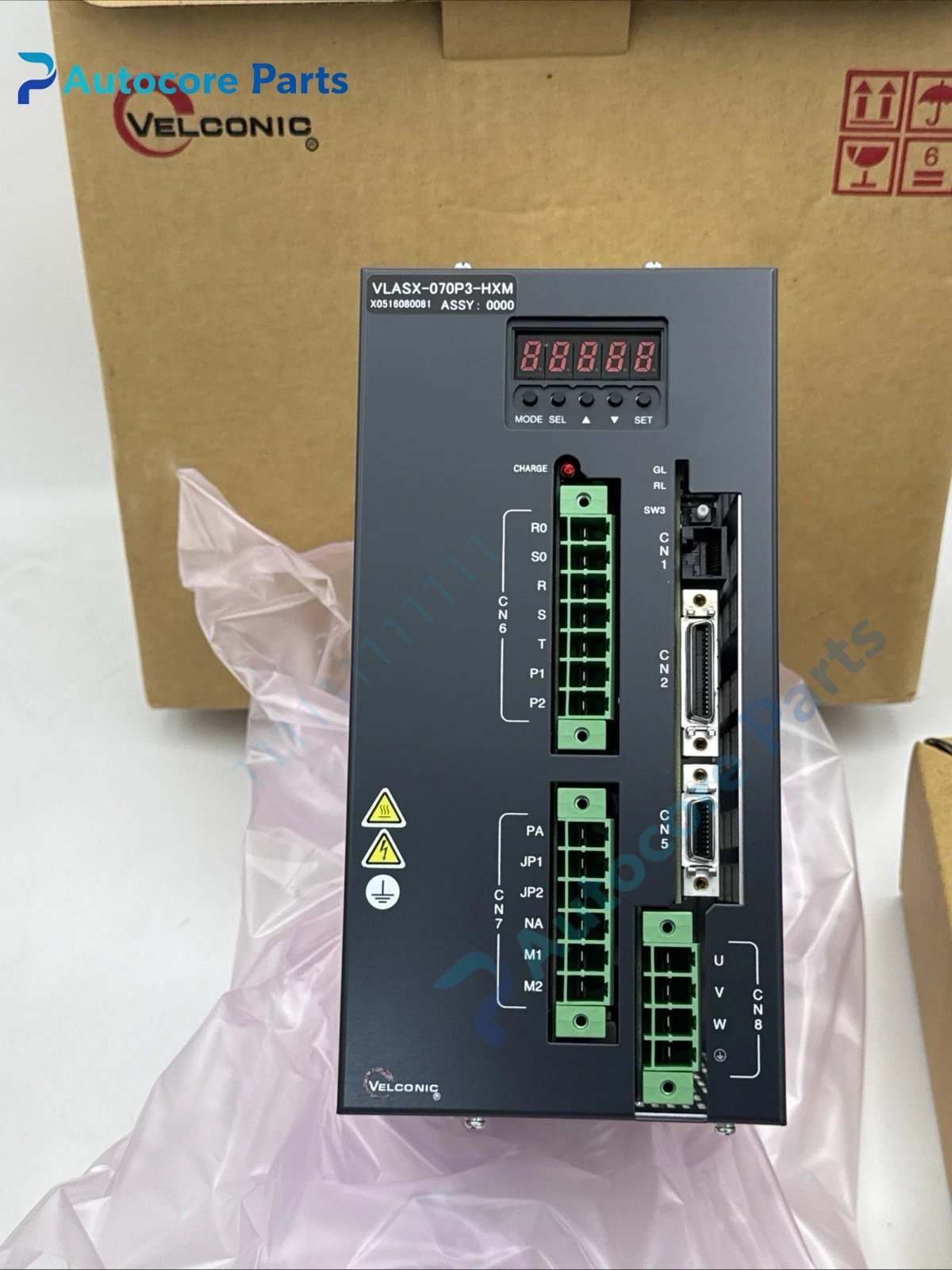

Velconic VLASX-070P3-HXM Servo Drive Unit

Feature & Principle

This servo driver adopts high-speed current loop control, receives position command from upper controller, outputs three-phase power to drive servo motor. It supports position, speed and torque three control modes, built-in overcurrent, overvoltage, overheat and encoder fault protection, stable torque output for high precision positioning.

Specifications

Model: VLASX-070P3-HXM Brand: Velconic (TOEI / Toshiba Machine) Power supply: 3AC 200~230V Applicable motor: 3.4kW Continuous / peak current: 18.4A / 49.5A Control mode: Position / speed / torque Cooling: Air cooling Enclosure: IP20 Certification: CE

Components & Diagnostics

IGBT power module, main control board, encoder interface, operation panel, status LED and power terminal. Common faults: overload alarm, encoder signal loss, communication failure, power module breakdown and over-temperature alarm.

Product Brief

VLASX-070P3-HXM servo drive, Velconic motion spare widely used for CNC machine tools, indexing equipment and automated production line axis control.
