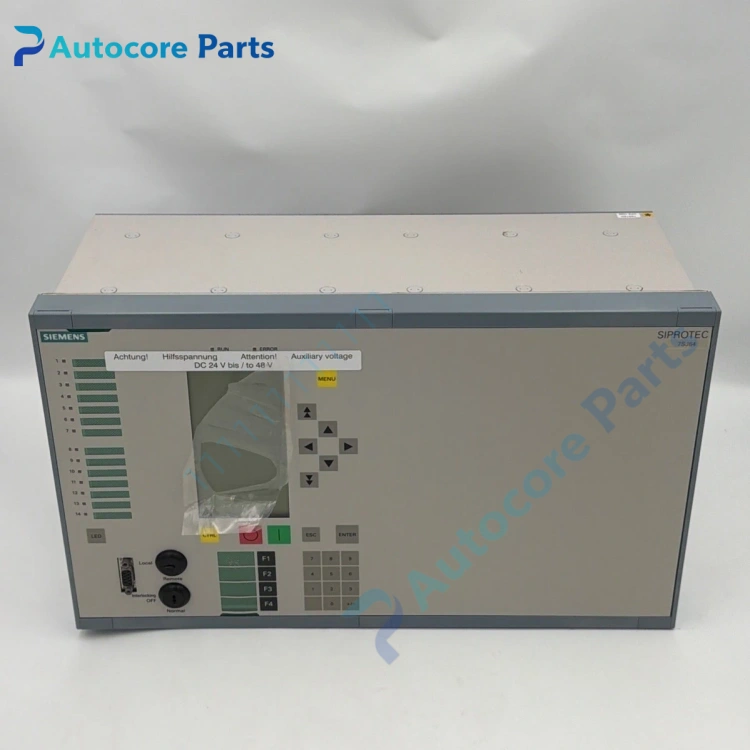

Siemens 7SJ6475-2EB92-3FE0 SIPROTEC 7SJ64 Protection Relay Unit

Feature & Principle

This numerical protection relay collects current and voltage signals from CT and PT. It executes multi-stage overcurrent, earth fault, overload and unbalance protection logic, with built-in CFC programmable logic, fault recording and event logging. It supports IEC60870-5-103, Modbus communication, can connect RTD sensors for winding temperature monitoring, and outputs trip signal once fault is detected.

Specifications

Model: 7SJ6475-2EB92-3FE0 Brand: Siemens Series: SIPROTEC 4 7SJ64 Function: Overcurrent, earth fault, auto-reclose, RTD monitoring Communication: IEC 60870-5-103, Modbus Power supply: 110~250V DC / 115~230V AC CT secondary: 5A Mounting: Flush panel mount Certification: IEC60255, CE

Components & Diagnostics

CPU mainboard, signal sampling module, RTD acquisition board, relay output contact set, LCD display keypad and status LED. Common faults: communication disconnection, false tripping, RTD channel failure, power supply anomaly.

Product Brief

7SJ6475-2EB92-3FE0 protection relay, Siemens power spare widely used for industrial substation, power plant medium voltage feeder and high power motor protection cabinet.
