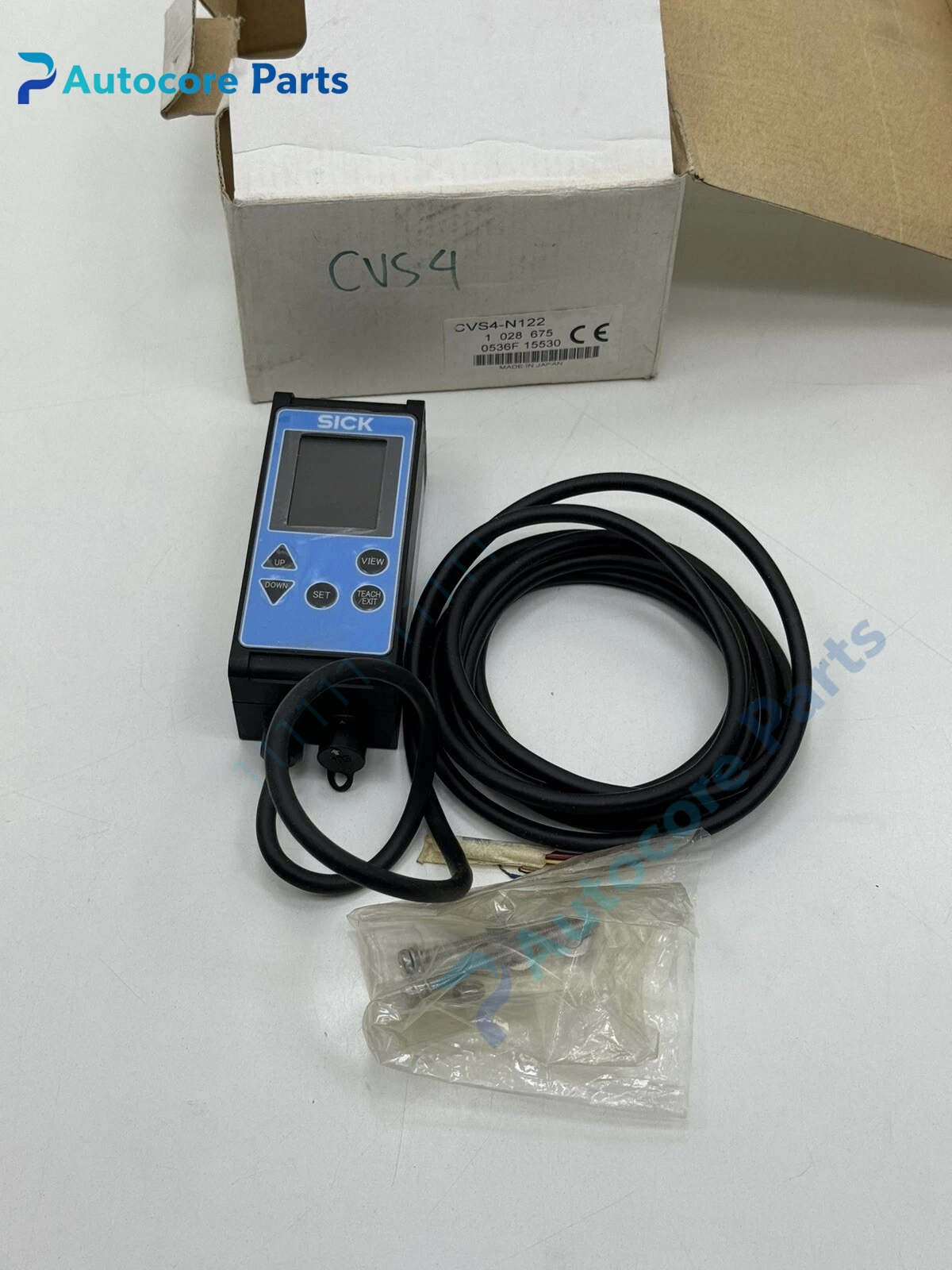

SICK CVS4-N122 2D Vision Sensor Unit

Module Feature

CVS4-N122 is an all-in-one compact 2D vision sensor from SICK CVS4 series.

It integrates image sensor, fixed-focus lens and internal illumination in a single housing. It supports barcode, QR code reading, OCV/OCR character verification and simple presence or dimension inspection. Compact IP67 design adapts to harsh workshop environments. Widely stocked as spare part for packaging, logistics and assembly automation stations.

Working principle

The built-in LED illuminates the target object, and the CMOS sensor captures the image.

The onboard processor runs pre-configured vision tools to decode codes, verify text or check feature existence. Inspection results and trigger signals are sent to PLC via digital I/O or Ethernet communication.

Onboard components

CMOS image sensor, fixed optical lens, integrated LED light source, image processing chip, I/O circuit, communication interface and sealed metal housing.

LED indicators

Front LEDs indicate power, trigger, pass and fail inspection status.

Hardware self‑diagnosis

Sensor monitors illumination brightness, image exposure and communication link health. Parameter setup and vision program editing are done on PC software.

Programming software

SICK CVS software, used for vision job configuration, tool setup, calibration and diagnostic log checking.

Electrical & Process Parameters

Model: CVS4-N122 Brand: SICK Device type: Integrated 2D machine vision sensor Function: Code reading, character verification and part presence inspection

Mechanical & Structure

Mounting: Bracket mounting on automation machine frame Protection class: IP67 Housing: Die-cast aluminum housing

Environmental

Operating temperature: 0℃ ~ +50℃ Storage temperature: -40℃ ~ +70℃ Ambient humidity: 5~95% non‑condensing

Certification: CE Status: Original SICK vision spare

Installation

Cut off 24V DC power before replacement.

Fix sensor on adjustable mounting bracket, align working distance, connect power and I/O/Ethernet cable, calibrate exposure and lighting, test inspection performance after commissioning.

Interface

24V DC power terminal, digital input/output, Ethernet port, external trigger port.

Diagnostic

Inspection unstable: Vibration interference, insufficient light or out-of-focus. No trigger response: Trigger signal wiring error or logic setting wrong. Communication lost: Cable damage, IP address mismatch.

Product Brief

CVS4-N122 sensor, SICK CVS4 integrated 2D machine vision sensor spare for barcode reading and product quality inspection replacement.
